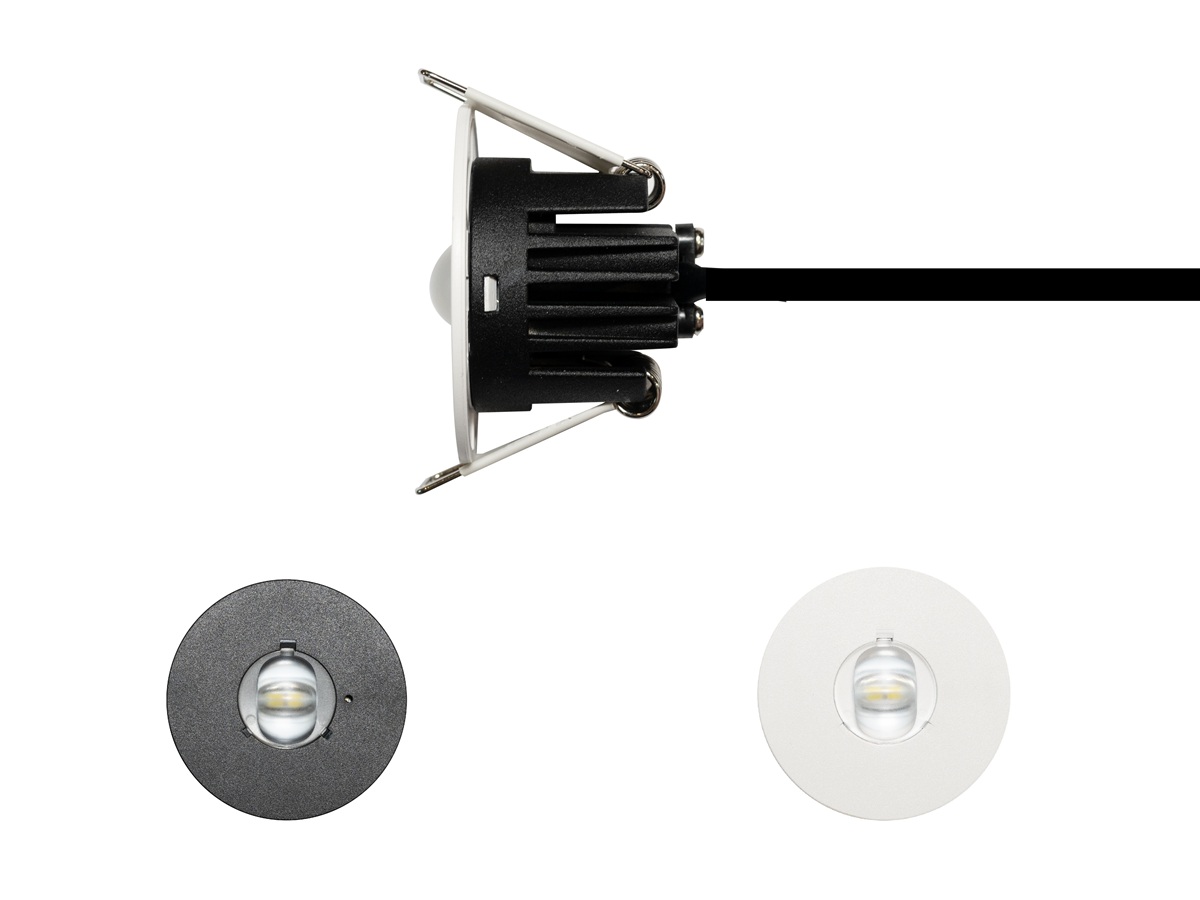

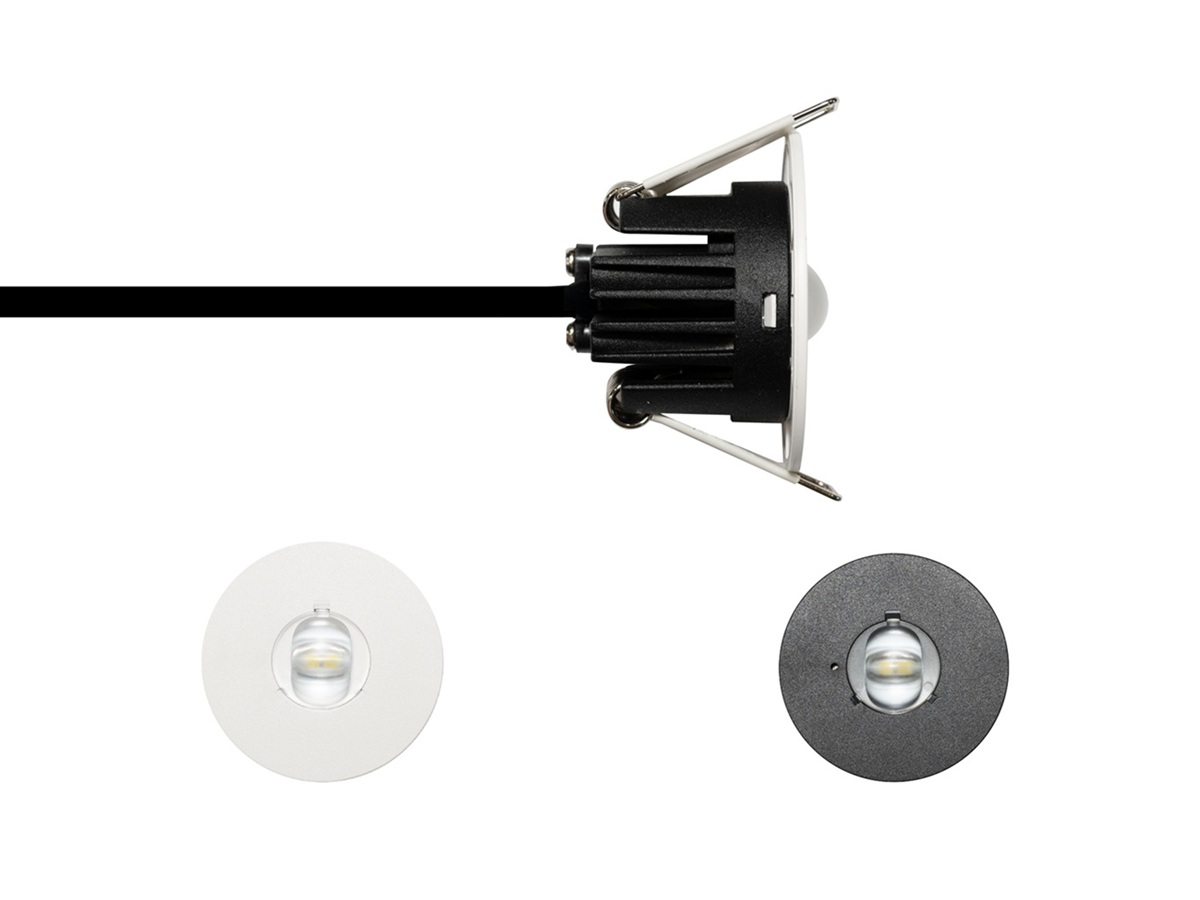

LED/45 Universal Emergency LED
A constant current emergency LED device for ceiling recess applications. The LED/45 is supplied with a choice of lenses; Open Area, Corridor, and Spot optics. Whilst the standard cut out aperture is 43mm, the product is also supplied with a choice of two further accessories allowing the product to be used in cut out apertures of either 80mm, or 92mm (with a thickness of 4.5mm).
The descrete charge LED lights green to show healthy conditions and, when used with self-test/DALI control gear, red to indicate a fault.
The LED/45 can be supplied in either white, or black.
Compatible Emergency Control Gear Kits
| Part Number | Operation | Output | Application |
| S-BNM/1 | Basic Non-Maintained | 700mA - up to 293 Delivered Lumen | Standalone Use |
| BNM/1 | Basic Non-Maintained | 700mA - up to 293 Delivered Lumen | Integral Use |
| ADM/1 | DALI Self-Test Maintained | 700mA - up to 293 Delivered Lumen | Integral Use |
| S/ADM/1 | DALI Self-Test Maintained | 700mA - up to 293 Delivered Lumen | Standalone Use |
| CPH | Centrally Supplied/Central Battery | 700mA - up to 293 Delivered Lumen | Integral Use |
| S/CPH | Centrally Supplied/Central Battery | 700mA - up to 293 Delivered Lumen | Standalone Use |
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| LED/45/W | White (RAL9016) Bezel Constant Current Device | ||
| LED/45/B | Black (RAL9005) Bezel Constant Current Device |
Specification
LED/45 Universal Emergency LED
Specifications
- High Output - Up To 293 Delivered Lumen
- Supplied with a choice of Lenses; Corridor, Open Area and Spot
- Ceiling Recess Mounting - 43mm Aperture
- Standard, Self-Test, DALI Self-Test and Wireless Options
- Supplied with accessories for larger cutout apertures
- Available in a White or a Black Finish
| LED/45 | |
| Input Voltage | 4V DC Max |
| Power Rating | 700mA |
| Light Source | Samsung LH315B |
| Cut Out | Φ 43mm to 92mm |
| Light Colour | Cool White |
| Colour Temperature | 6000K |
| Luminous Flux | Up to 293 Delivered Lumen @ 700mA |
| General CRI | 70 |
| Tc Max | 80°C LED Backplate |
| Wiring Method | Series connection only via C4201 Series Plug |
| Dimensions | Φ 50mm x 49mm (Min Void Depth 40mm) |
| Weight | 58g |
