S/CPH/LED Central Battery LED System

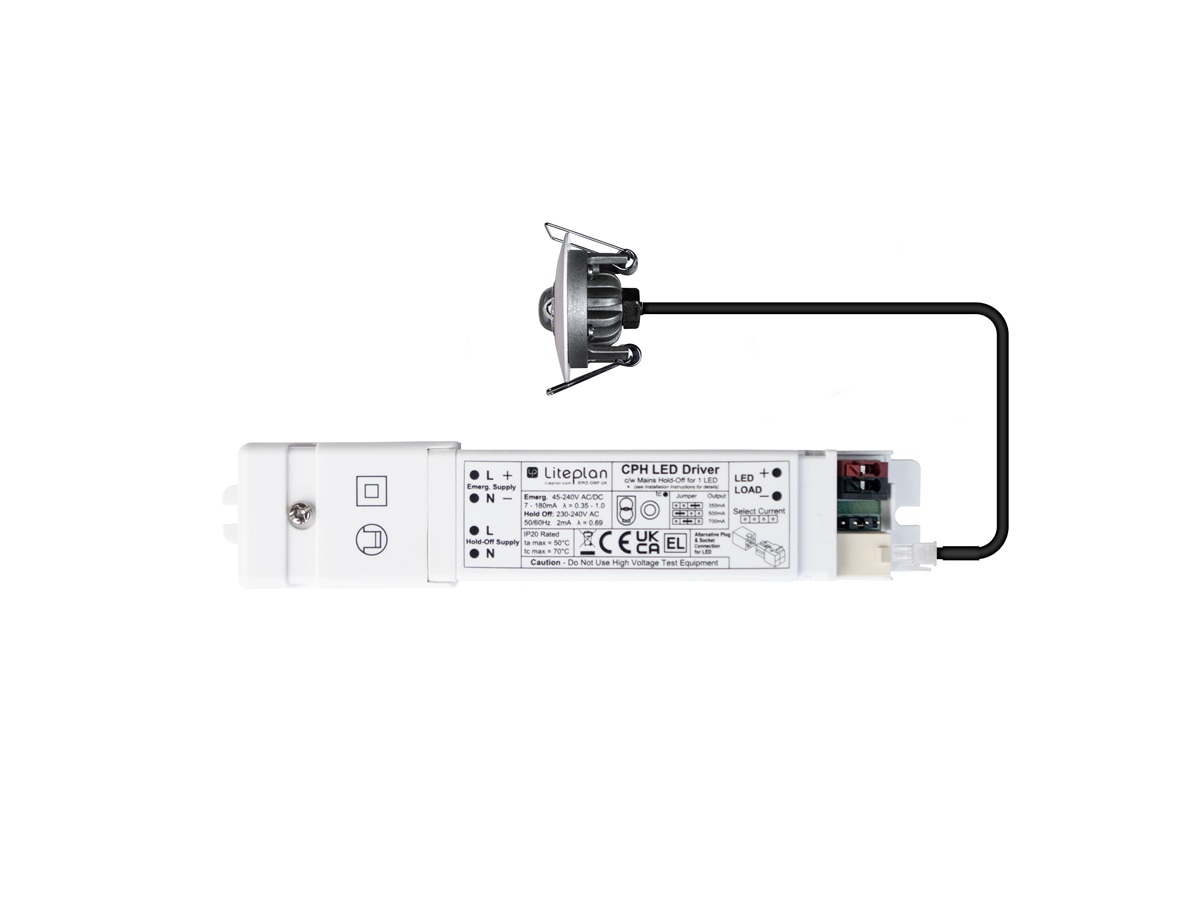

The S/CPH/LED is designed as a central battery driver with hold off (240V, 110V or 50V AC/DC) with a dedicated emergency LED. At the point the un-switched supply is broken, the driver will accept the feed from the central battery and power one of a choice of ceiling recessed emergency LEDs at 700mA. This unit is for intermittent use. If being used as a centrally supplied fitting, this must be considered. The unit is not for permanent use. For details of Liteplan’s dedicated emergency LED devices, please click here.

Ordering Codes

CodeDescription
S/CPH/LED/43/FL/**115° 237lm Emergency LED to run from a 50V, 110V or a 240V AC or DC central battery system
S/CPH/LED/43/OA/**135° 268lm Emergency LED to run from a 50V, 110V or 240V AC or DC central battery system
S/CPH/LED/43/CO/**155° x 115° 266lm Emergency LED to run from a 50V, 110V or 240V AC or DC central battery system

S/CPH/LED Central Battery LED System

Specifications

  • Suitable for 50V, 110V & 240V Central Battery Systems
  • Operates a Dedicated Ceiling Recessed LED
  • Suitable to be Placed in the Ceiling Void
  • Module Provided with Adequate Strain Relief

To determine the power drawn from the central battery system in each scenario, please use the below chart in your calculations:

Supply Voltage

Output Current (mA)

Output  load

Supply Current

(mA rms)

Supply Power (W)

Supply power factor

Supply VA

240V AC

700

1 x LED

36

3.60

0.41

8.8

240V DC

14

3.36

–

–

110V AC

54

3.50

0.58

6.1

110V DC

30

3.30

–

–

50V AC

135

4.40

0.65

6.9

50V DC

78

3.90

–

–

S/CPH/LED Central Battery LED System

Datasheet

View

Datasheet (without LED)

View

Installation Instruction

View

CE Declaration of Conformity

View

UKCA Declaration of Conformity

View

LDT File - Open Area

Download

LDT File - Corridor

Download

LDT File - Flood

Download

S/CPH/LED Central Battery LED System

The S/CPH/LED is designed as a central battery driver with hold off (240V, 110V or 50V AC/DC) with a dedicated emergency LED. At the point the un-switched supply is broken, the driver will accept the feed from the central battery and power one of a choice of ceiling recessed emergency LEDs at 700mA. This unit is for intermittent use. If being used as a centrally supplied fitting, this must be considered. The unit is not for permanent use. For details of Liteplan’s dedicated emergency LED devices, please click here.

Ordering Codes

CodeDescription
S/CPH/LED/43/FL/**115° 237lm Emergency LED to run from a 50V, 110V or a 240V AC or DC central battery system
S/CPH/LED/43/OA/**135° 268lm Emergency LED to run from a 50V, 110V or 240V AC or DC central battery system
S/CPH/LED/43/CO/**155° x 115° 266lm Emergency LED to run from a 50V, 110V or 240V AC or DC central battery system

S/CPH/LED Central Battery LED System

Specifications

  • Suitable for 50V, 110V & 240V Central Battery Systems
  • Operates a Dedicated Ceiling Recessed LED
  • Suitable to be Placed in the Ceiling Void
  • Module Provided with Adequate Strain Relief

To determine the power drawn from the central battery system in each scenario, please use the below chart in your calculations:

Supply Voltage

Output Current (mA)

Output  load

Supply Current

(mA rms)

Supply Power (W)

Supply power factor

Supply VA

240V AC

700

1 x LED

36

3.60

0.41

8.8

240V DC

14

3.36

–

–

110V AC

54

3.50

0.58

6.1

110V DC

30

3.30

–

–

50V AC

135

4.40

0.65

6.9

50V DC

78

3.90

–

–

S/CPH/LED Central Battery LED System

Datasheet

View

Datasheet (without LED)

View

Installation Instruction

View

CE Declaration of Conformity

View

UKCA Declaration of Conformity

View

LDT File - Open Area

Download

LDT File - Corridor

Download

LDT File - Flood

Download
