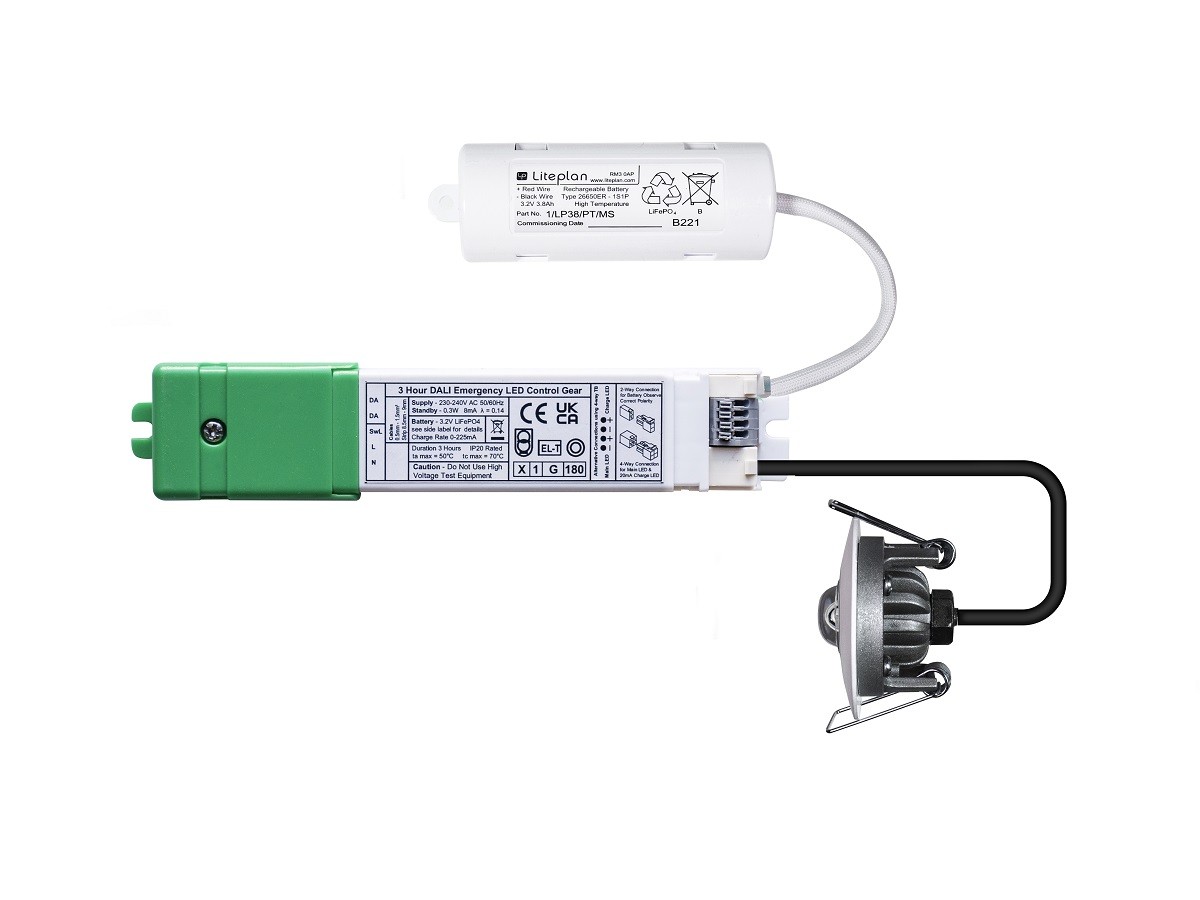

S/ADM/1 Ceiling Recessed DALI Addressable
A 3 hour 700mA DALI self-test emergency driver designed for constant current LED devices, supplied complete with the latest extra long life LiFePO4 battery packs. This product has plug and play capability with strain relief on the cables making it suitable for recessing into the ceiling void. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
This product can operate with the LiteMesh wireless system.
This range pioneers the use of LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.
Order Code
| Order Code | LED Device | Description | |
|---|---|---|---|
| S/ADM/1 | /** (see Compatible LED Devices) | 700mA DALI-2 Self-Test Emergency Control Gear | |
| S/ADM/1/LMEM | /** (see Compatible LED Devices) | 700mA LiteMesh ready Wireless Self-Test Emergency Control Gear |
e.g. For a LiteMesh ready unit with a white, open area LED, the ordering code would be S/ADM/1/LMEM/43/OA/W
These products can also be ordered as separate self-test emergency control gear parts.
For a full list of compatible devices, please see our LED Device range.
S/ADM/1 Ceiling Recessed DALI Addressable
Specifications
- The Latest LiFePO4 Extra Long Life Batteries
- DALI-2 Certified Device
- Strain Relief For Mains Input
- 700mA Standard Unit offering up to 308lm
- 900mA High Output Version offering up to 363lm
- If DALI is not Present, Unit Defaults to Self-Test Operation
- 160mm Void Depth with 40mm Cut-Out
- Operates with the LiteMesh Wireless System
- LiFePO4 Automatic Battery Protection and Recovery
| S/ADM/1 | |
| Input Voltage | 230-240 Volts AC – 50/60Hz |
| Power Rating - Charged * | 0.26W 8mA λ = 0.14 |
| Power Rating - Charging * | 1.7W 14mA λ = 0.5 |
| Emergency Duration | 3 Hours |
| Battery Type | IFpR27/67 LiFePO4 |
| Battery Voltage | 3.2V |
| Battery Capacity | 3.8Ah |
| Charge Current | 225mA nominal |
| Recharge Time | 24-Hours |
| Discharge Current | 900mA Nominal |
| TC Max | 60°C Module / 55°C Battery |
| Output Load | 1 x 3W |
| Output Current | 700mA or 900mA |
| Module Dimensions | 162mm x 33.5mm x 21mm |
| Fixing Centres | 155mm x M4 |
| Overall Weight (with LED/43) | 0.28Kg |
| Cut-out (aperture) | 40-43mm |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
