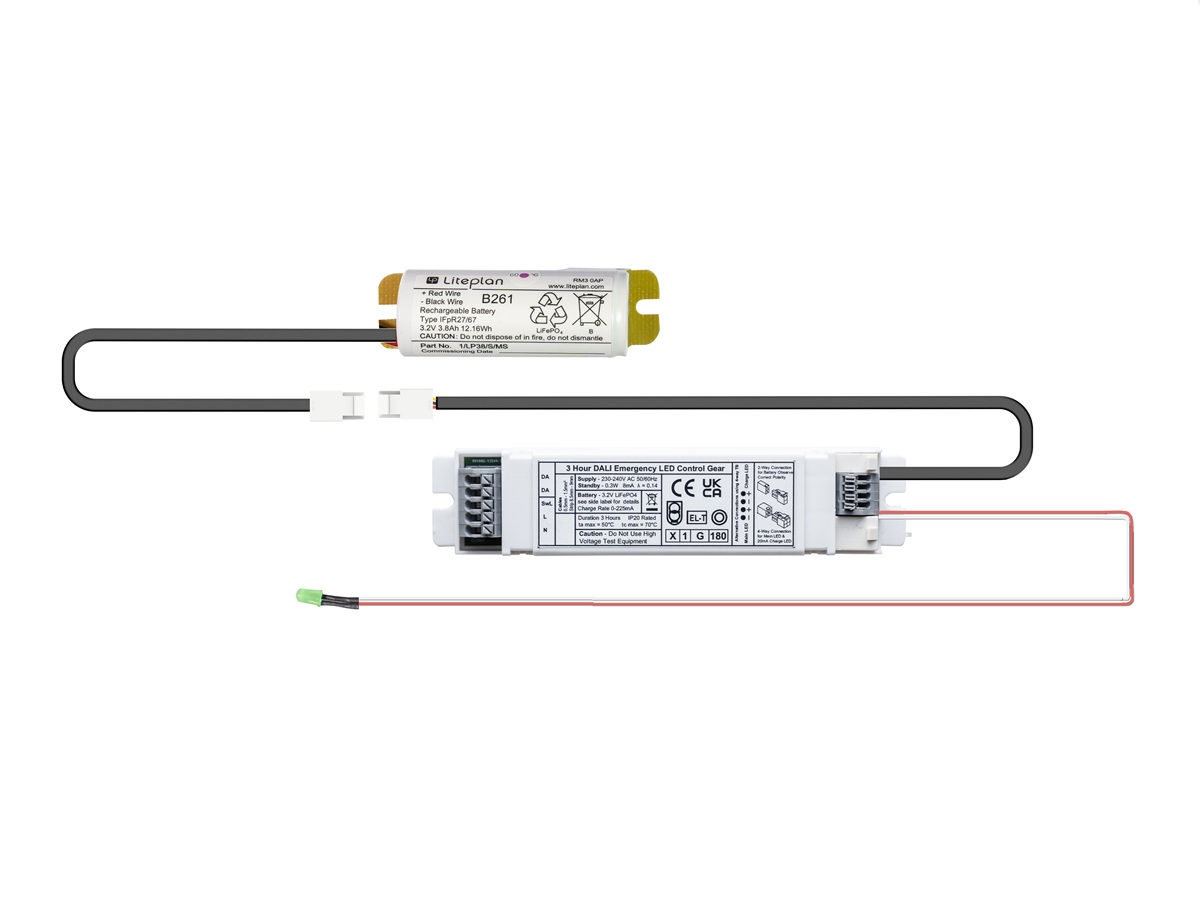

ADM/1 DALI Addressable Maintained/Non-Maintained Driver
A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The ADM/1 operates a single 4V chip at 700mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
Order Codes
| Order Code | complete with | LED Device | Description |
|---|---|---|---|
| ADM/1 | c/w | LED/** (see Compatible LED Devices) | 700mA DALI-2 Self-Test Emergency Control Gear |
These products can also be ordered as separate self-test/DALI emergency control gear parts.
For a full list of compatible devices, please see our LED Device range.
Specification
ADM/1 DALI Addressable Maintained/Non-Maintained Driver
Specifications
- For Integral Use with Slim Batteries
- DALI-2 Certified Device
- High Temperature Tolerance Batteries
- Extra Long Life LiFePO4 Batteries
- DALI Self-Test Module
- High Output (700mA)
- LiFePO4 Automatic Battery Protection and Recovery
| ADM/1 | |
| Input Voltage | 230-240 Volts AC – 50/60Hz |
| Power Rating | Charging Maintained: 5W 28mA λ = 0.74Standby Non-Maintained: 0.3W 8mA λ = 0.15 |
| Em. Duration | 3-hours |
| Battery Type | IFpR27/67 LiFePO4 |
| Battery Voltage | 3.2V |
| Battery Capacity | 3.8Ah |
| Charge Current | 225mA nominal |
| Discharge Current | 700mA nominal |
| Recharge Time | 24-hours |
| TC Max | 60°C Module / 55°C Battery |
| Output Load | 1 x 3W |
| Output Current | 700mA |
| Module Dims. | 135mm x 30mm x 21mm |
| Battery Dimensions | 90mm long x 24mm wide x 28mm high |
| Fixing Centres | 132mm x M4 |
| Module Weight | 0.1Kg |
| Battery Weight | 0.11Kg |
