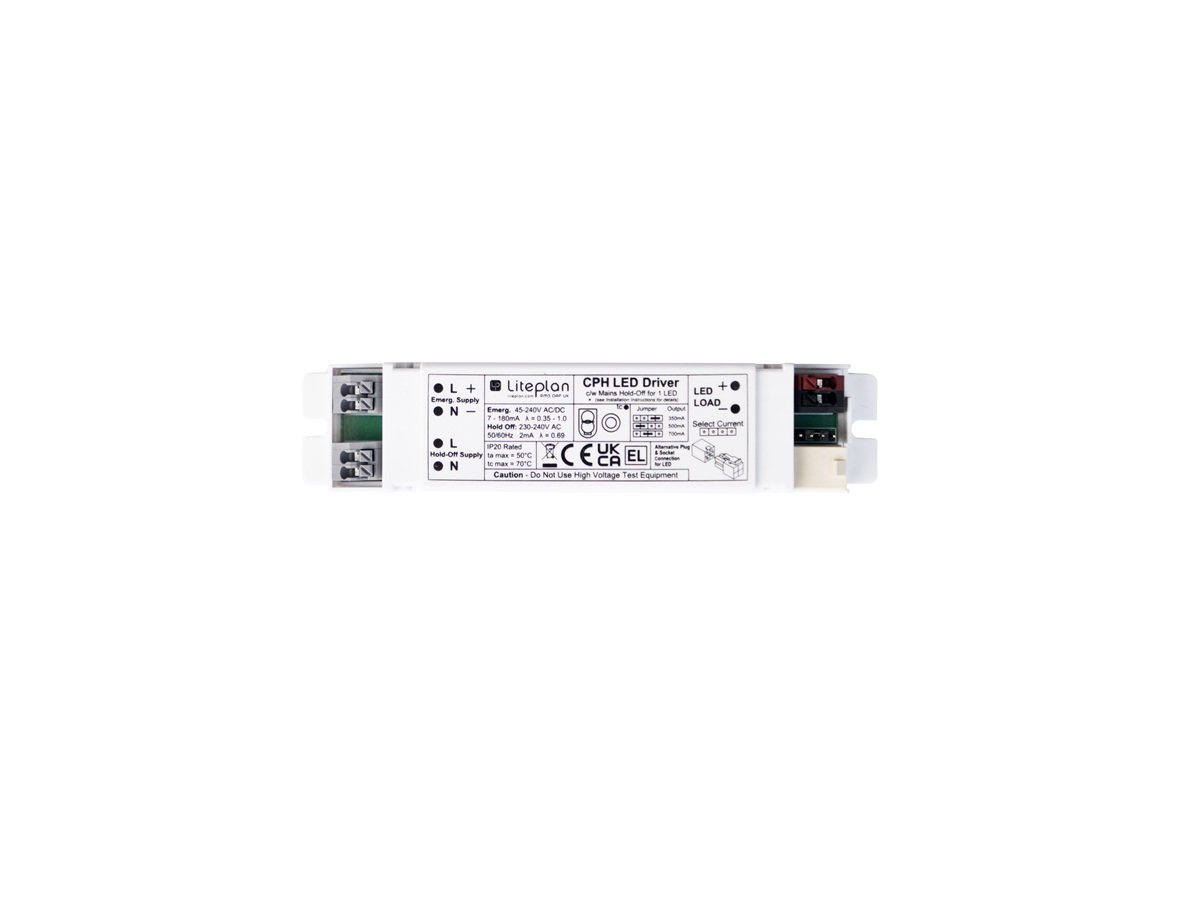

CPH Central Battery Driver with Hold Off
This unit is for intermittent use. If being used as a slave, this must be considered. The unit is not for permanent use.
- 50V AC or DC 1 LED at 350mA or 700mA (2.5V-3.5V)
- 110V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
- 240V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
Please see a list of compatible Liteplan dedicated LED devices.
Ordering Codes
| CPH-M | Hold off Driver to run 1No. 350mA or 700mA LED from 50V AC or DC Central Battery System or 1-3 LEDs in series from either 110V or 240V AC or DC Central Battery Systems. |
|---|
Can be housed in a remote enclosure for use with our dedicated emergency LEDs where required. Please see S-CBH for details.
CPH Central Battery Driver with Hold Off
Specifications
- Suitable for 50V, 110V & 240V Central Battery Systems
- Operates a dedicated emergency LED Load
- Suitable to be housed integrally to a luminaire
- Can be housed within a remote enclosure where required
To determine the power drawn from the central battery system in each scenario, please use the below chart in your calculations:
|
Supply Voltage |
Output Current (mA) |
Output load |
Supply Current (mA rms) |
Supply Power (W) |
Supply power factor |
Supply VA |
|
240V AC |
700 |
1 x LED |
36 |
3.60 |
0.41 |
8.8 |
|
240V DC |
14 |
3.36 |
– |
– |
||
|
110V AC |
54 |
3.50 |
0.58 |
6.1 |
||
|
110V DC |
30 |
3.30 |
– |
– |
||
|
50V AC |
135 |
4.40 |
0.65 |
6.9 |
||
|
50V DC |
78 |
3.90 |
– |
– |
||
|
|
|
|
|
|
|
|
|
240V AC |
350 |
1 x LED |
21 |
1.80 |
0.35 |
5.0 |
|
240V DC |
7 |
1.68 |
– |
– |
||
|
110V AC |
24 |
1.60 |
0.89 |
2.7 |
||
|
110V DC |
15 |
1.65 |
– |
– |
||
|
50V AC |
56 |
1.82 |
0.63 |
2.9 |
||
|
50V DC |
36 |
1.80 |
– |
– |
||
