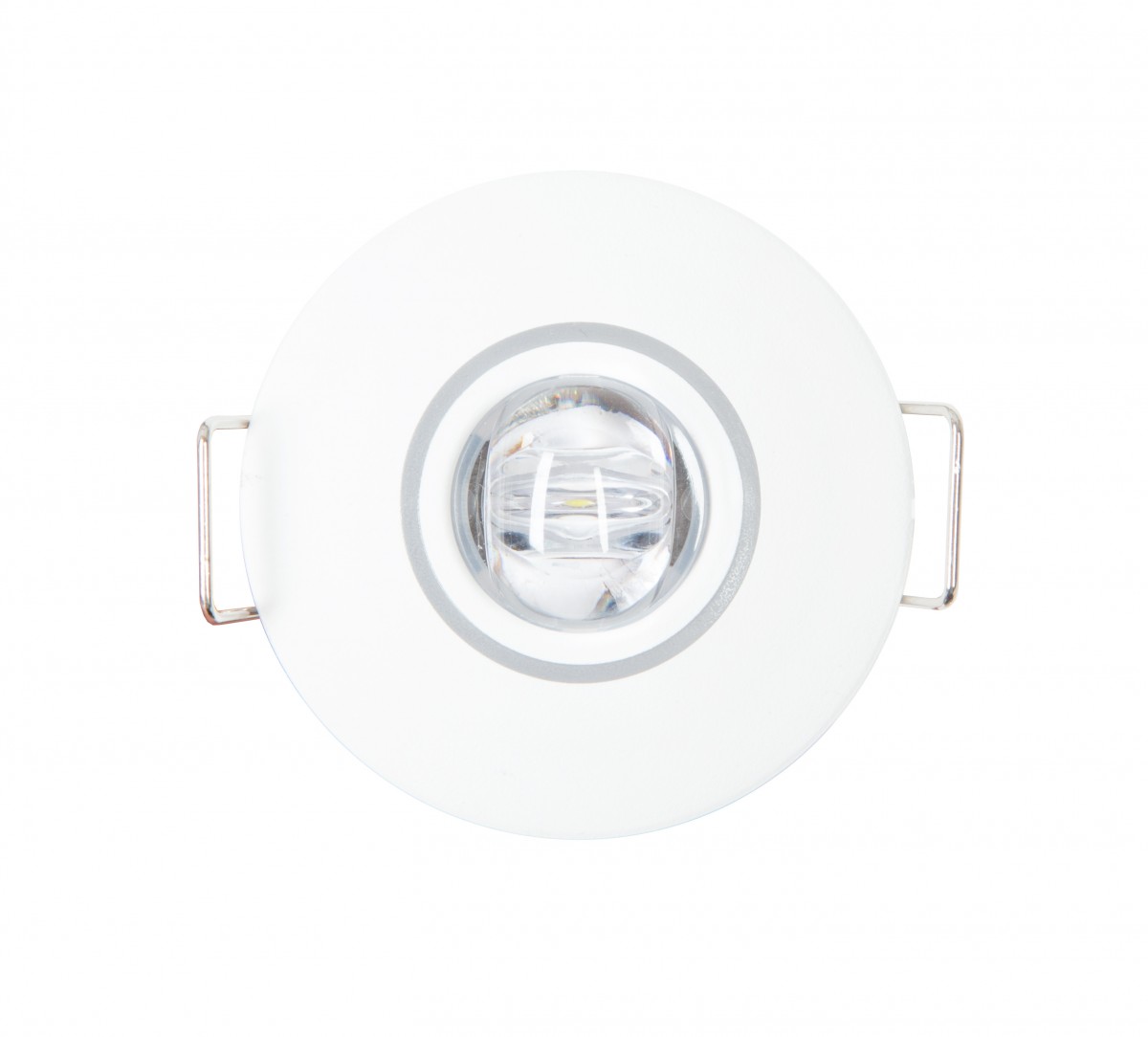

LED/43/CO Corridor Optic

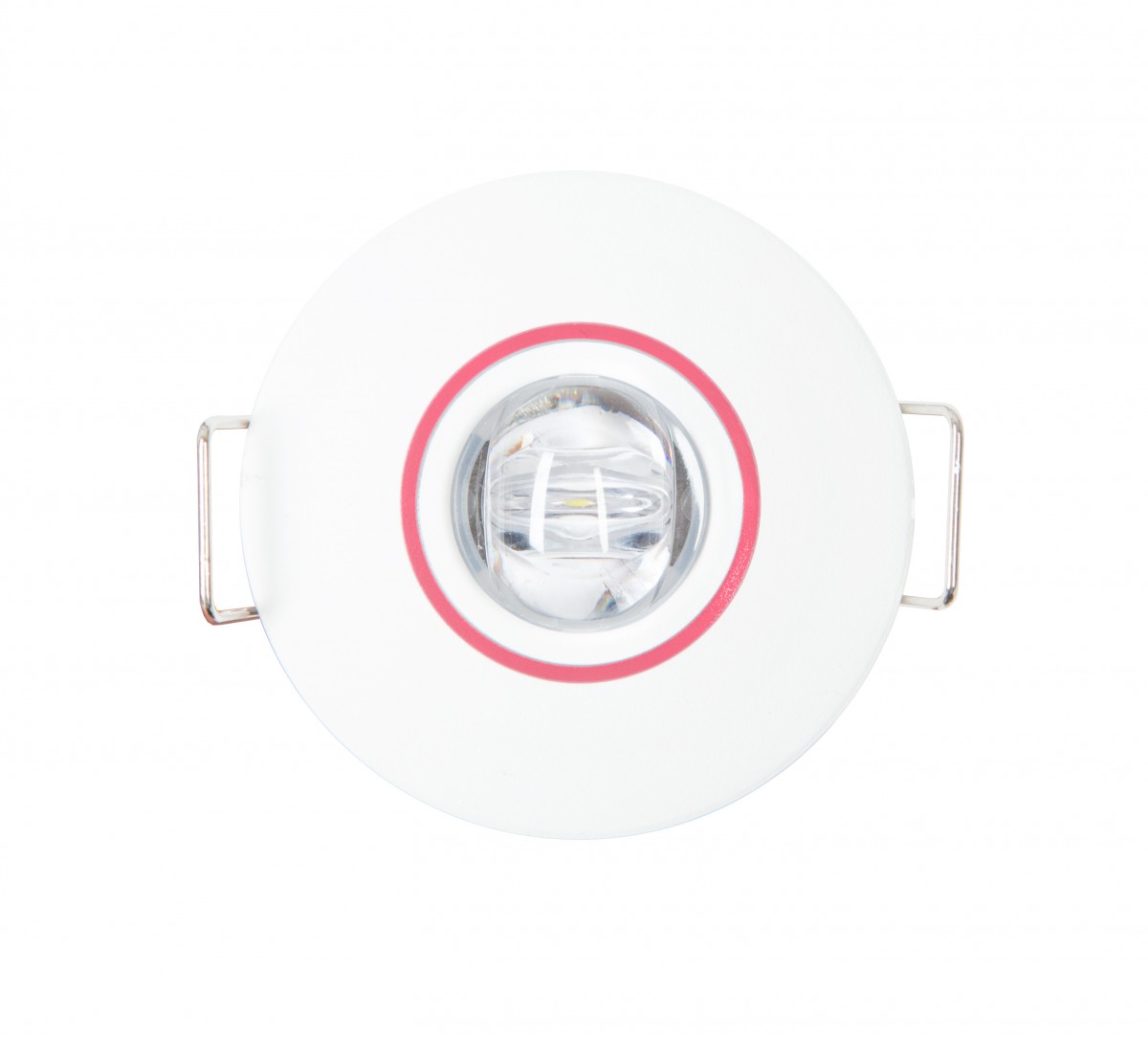

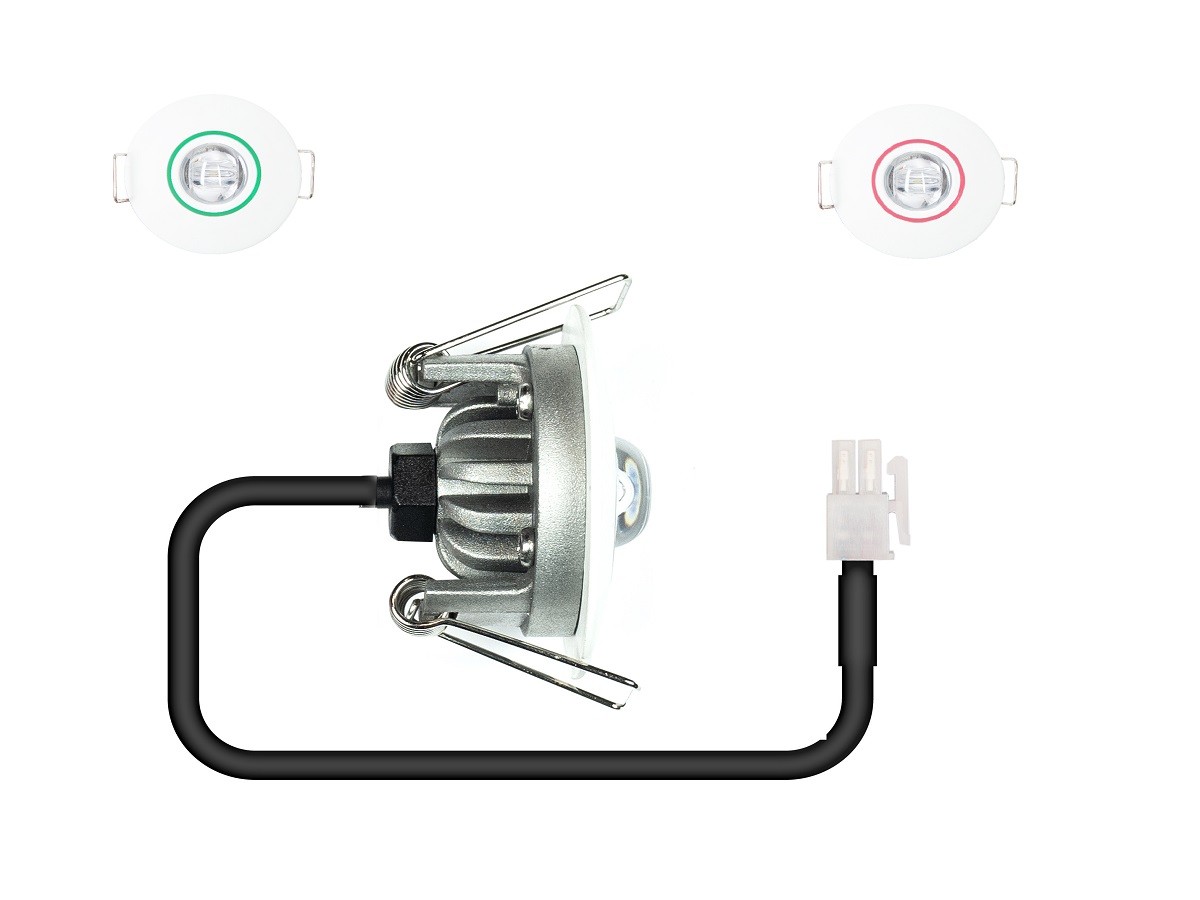

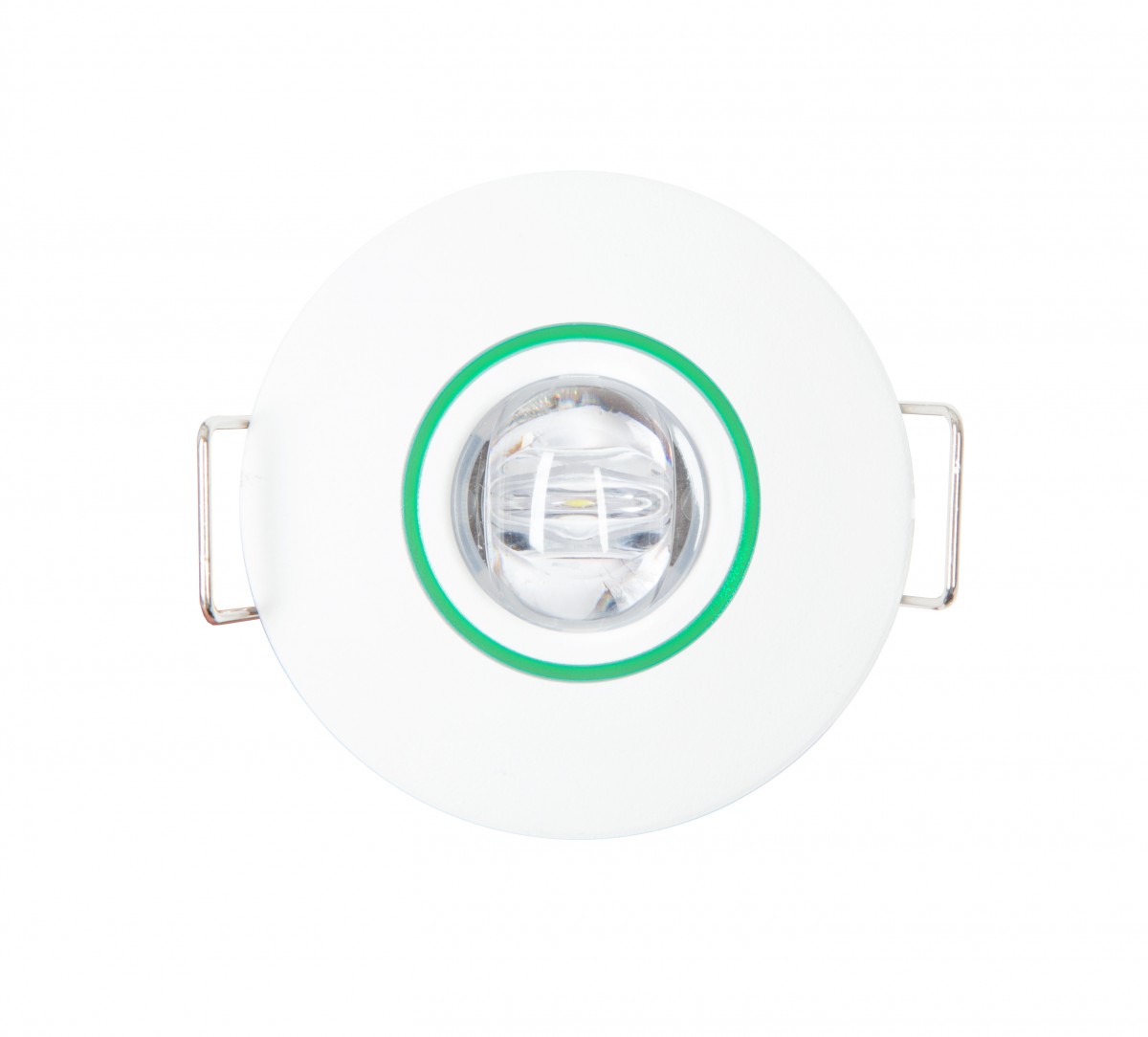

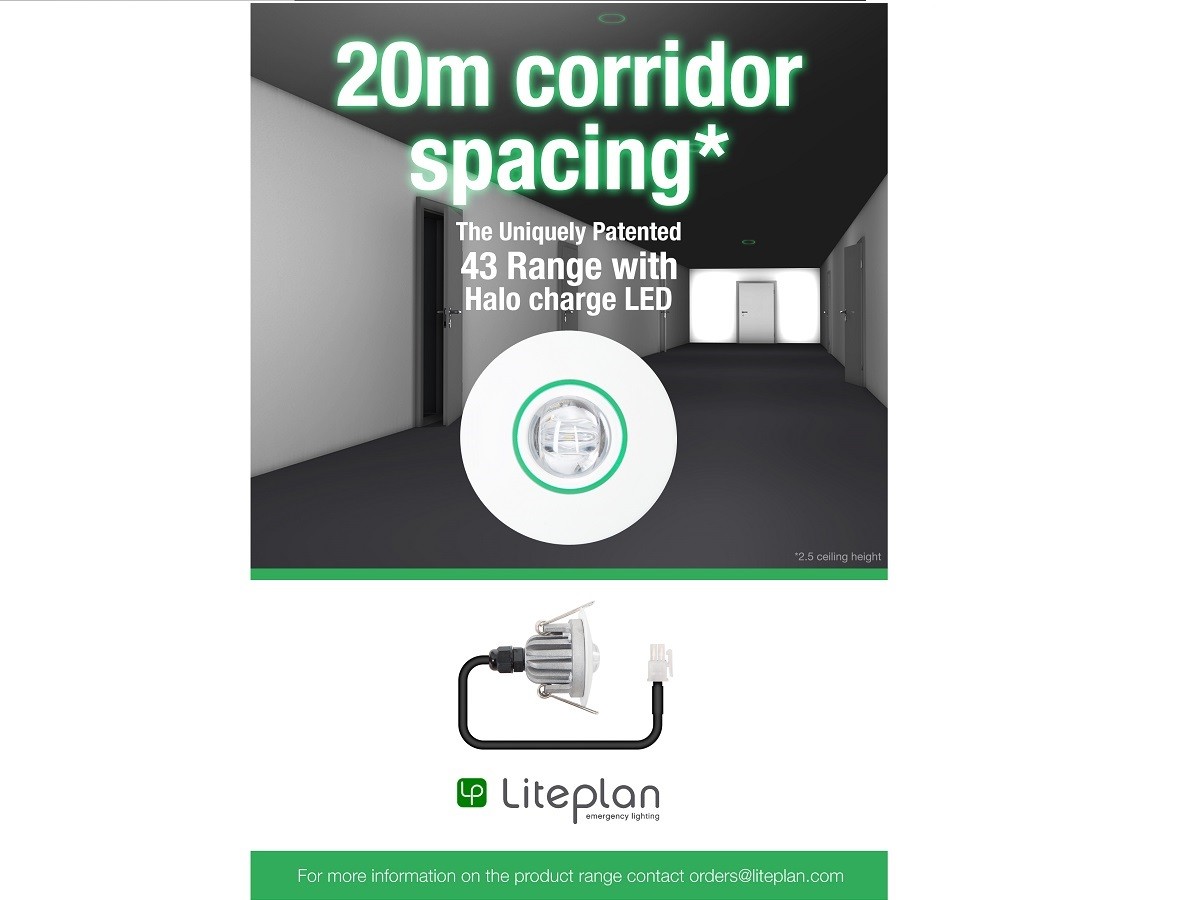

A corridor specific emergency LED device with greater than 20m spacing at 2.5m ceiling height due to an elliptical lens (155° x 115°), maximising space between fittings along a corridor, thereby reducing the amount required. The lens casts the light where it is required, without wasting light along the walls. The main LED can be driven up to 700mA and the bezel incorporates a design protected, Halo effect bi-colour LED for green charge healthy and red self-test fault indication.
Compatible Emergency Control Gear Kits
| Part Number | Operation | Output | Application |
| S/BNM/1 | Basic Non-Maintained | 700mA - 266 Delivered Lumen | Standalone Use |
| BNM/1 | Basic Maintained | 700mA - 266 Delivered Lumen | Integral Use |
| ADM/1 | DALI Self-Test Maintained | 700mA - 266 Delivered Lumen | Integral Use |
| S/ADM/1 | DALI Self-Test Maintained | 700mA - 266 Delivered Lumen | Standalone Use |
| CPH | Centrally Supplied/Central Battery | 700mA - 266 Delivered Lumen | Integral Use |
| S/CPH | Centrally Supplied/Central Battery | 700mA - 266 Delivered Lumen | Standalone Use |
| Order Code | Description | ||
|---|---|---|---|
| LED/43/CO/W | White (RAL9016) Bezel Constant Current Device | ||
| LED/43/CO/B | Black (RAL9005) Bezel Constant Current Device |
Specification
LED/43/CO Corridor Optic
Specifications
- High Output - Up To 266 Delivered Lumen
- Design Protected Halo Effect Charge/Fault Indication
- Standard, Self-Test and DALI Self-Test Options
- Ceiling Recess Mounting - 40mm to 43mm Aperture
- Surface Mount Options Available
- Available with a White or a Black Finish
- IP54 Ingress Protection
| LED/43/CO | |
| Input Voltage | 4V DC Max |
| Power Rating | 700mA |
| Light Source | Samsung LH315B |
| Beam Angle | 155° x 115° |
| Cut Out | Φ 40mm to 43mm |
| Light Colour | Cool White |
| Colour Temp | 6000K |
| Luminous Flux | 266 Delivered Lumen @700mA |
| General CRI | 71 |
| Tc Max | 80°C LED Backplate |
| Wiring Method | Series connection only via C4201 Series Plug |
| Dimentions | Φ 50mm x 45mm (Min Void Depth 40mm) |
| Weight | 61g |
