Overview

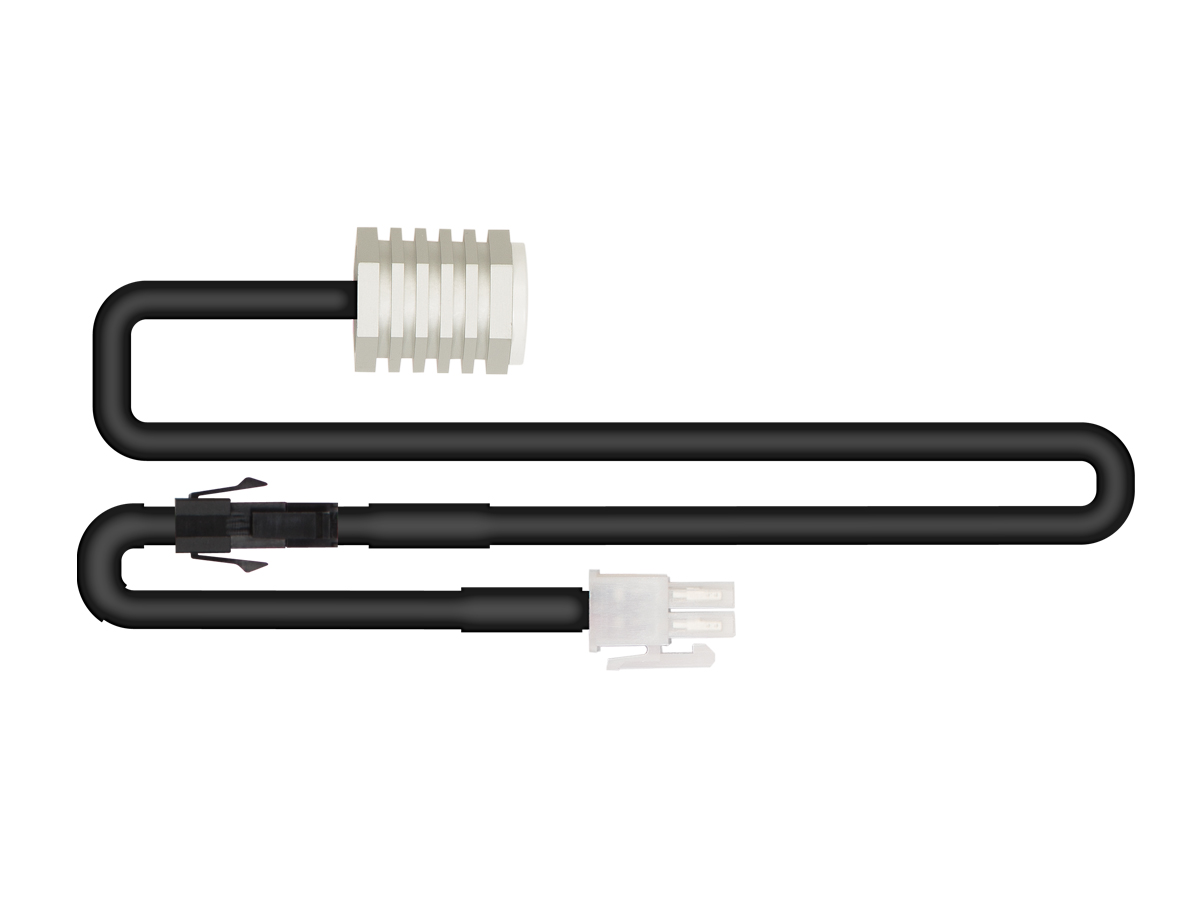

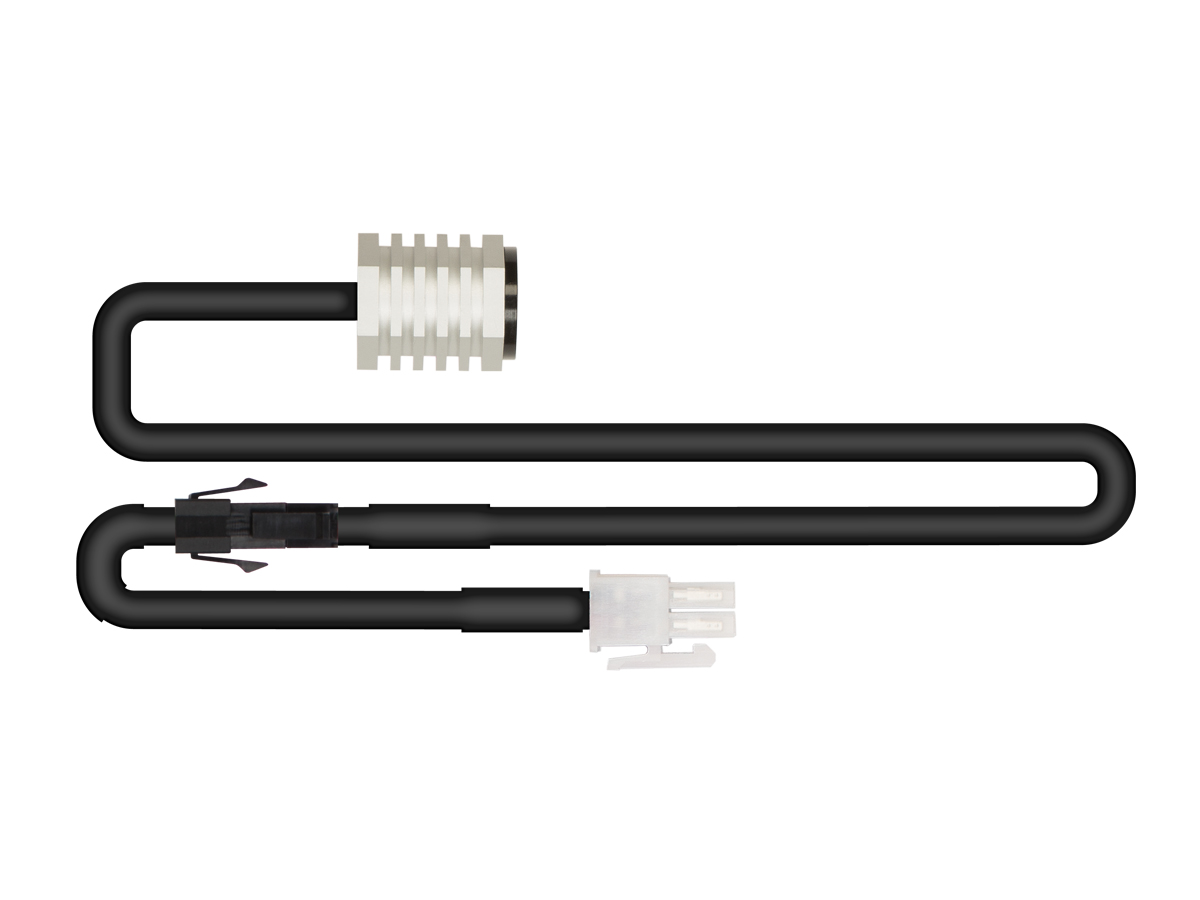

LED/19/90 90° Beam Angle
A constant current 90° wide beam angle, panel mount device which can be driven up to 700mA (3W output). The chip incorporates a bi-colour LED for green charge healthy and red self-test fault indication. This LED is suitable for panel mounting applications.
Compatible Emergency Control Gear Kits
| Part Number | Operation | Output | Application |
| S-BNM/1 | Basic Non-Maintained | 700mA - 267 Delivered Lumen | Standalone Use |
| BNM/1 | Basic Maintained | 700mA - 267 Delivered Lumen | Integral Use |
| ADM/1 | DALI Self-Test Maintained | 700mA - 267 Delivered Lumen | Integral Use |
| S/ADM/1 | DALI Self-Test Maintained | 700mA - 267 Delivered Lumen | Standalone Use |
| CPH | Centrally Supplied/Central Battery | 700mA - 267 Delivered Lumen | Integral Use |
| S/CPH | Centrally Supplied/Central Battery | 700mA - 267 Delivered Lumen | Standalone Use |
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| LED/19/90/W | Panel Mounting White (RAL9016) Bezel Constant Current Device | ||
| LED/19/90/B | Panel Mounting Black (RAL9005) Bezel Constant Current Device |
Specification
LED/19/90 90° Beam Angle
Specifications
- Panel Mount Emergency LED
- 90° Beam Angle
- High Output - Up to 209 Delivered Lumen
- Basic, Self-Test, DALI Self-Test and Wireless Options Available
- Available in a White or Black Finish
| LED/19/90 | |
| Input Voltage | 4V DC Max |
| Power Rating | 3W at 700mA |
| Light Source | Samsung 3535 - LH351B |
| Beam Angle | 90° |
| Light Colour | White |
| Colour Temperature | 6000K |
| Tc Max | 80°C |
| Luminous Flux | 209 Delivered Lumen at 700mA |
| LED Dimensions | Φ 20mm x 30mm (Min Void Depth 27mm) |
| Cut Out Dimensions | Φ 16mm |
| Weight | 20g |
Documentation
LED/19/90 90° Beam Angle
A constant current 90° wide beam angle, panel mount device which can be driven up to 700mA (3W output). The chip incorporates a bi-colour LED for green charge healthy and red self-test fault indication. This LED is suitable for panel mounting applications.
Compatible Emergency Control Gear Kits
| Part Number | Operation | Output | Application |
| S-BNM/1 | Basic Non-Maintained | 700mA - 267 Delivered Lumen | Standalone Use |
| BNM/1 | Basic Maintained | 700mA - 267 Delivered Lumen | Integral Use |
| ADM/1 | DALI Self-Test Maintained | 700mA - 267 Delivered Lumen | Integral Use |
| S/ADM/1 | DALI Self-Test Maintained | 700mA - 267 Delivered Lumen | Standalone Use |
| CPH | Centrally Supplied/Central Battery | 700mA - 267 Delivered Lumen | Integral Use |
| S/CPH | Centrally Supplied/Central Battery | 700mA - 267 Delivered Lumen | Standalone Use |
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| LED/19/90/W | Panel Mounting White (RAL9016) Bezel Constant Current Device | ||
| LED/19/90/B | Panel Mounting Black (RAL9005) Bezel Constant Current Device |
