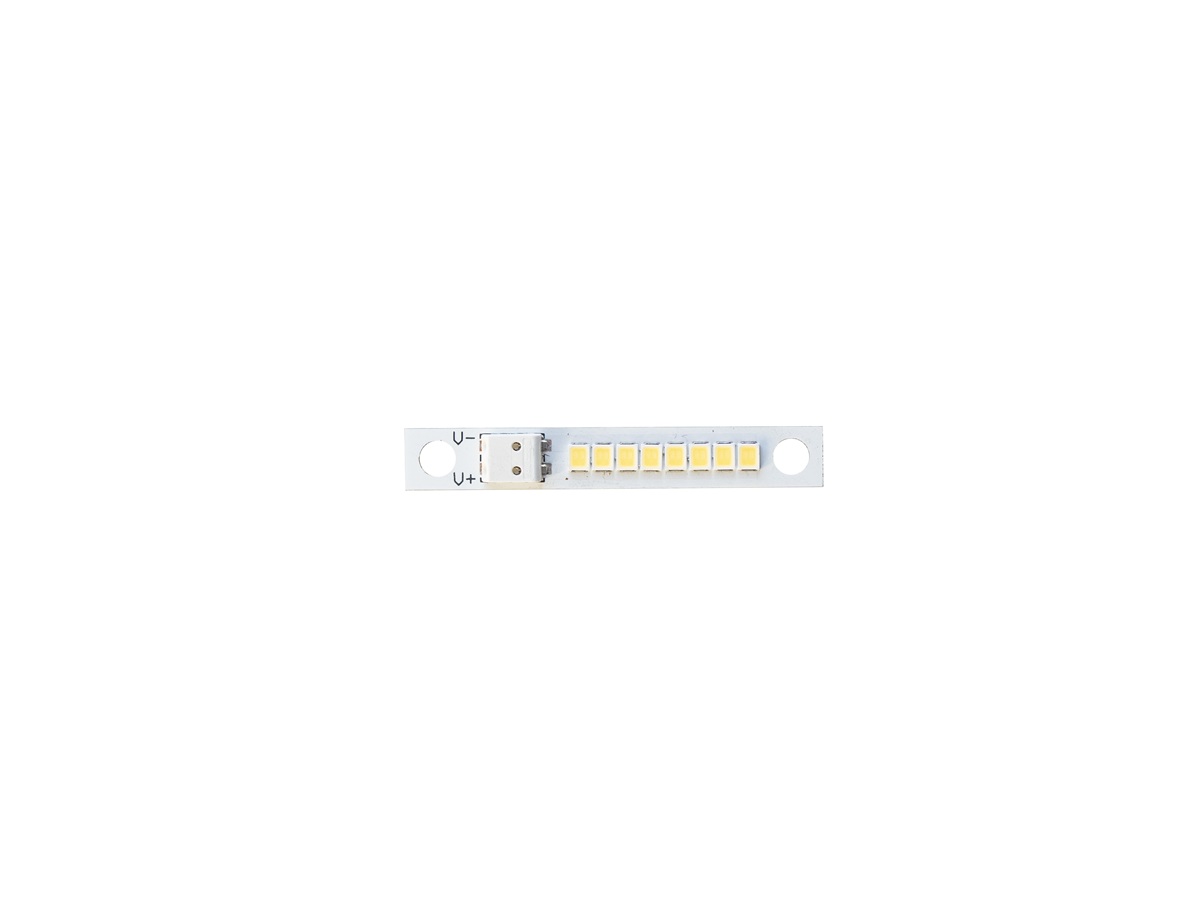

MinEM – Emergency LED Strip

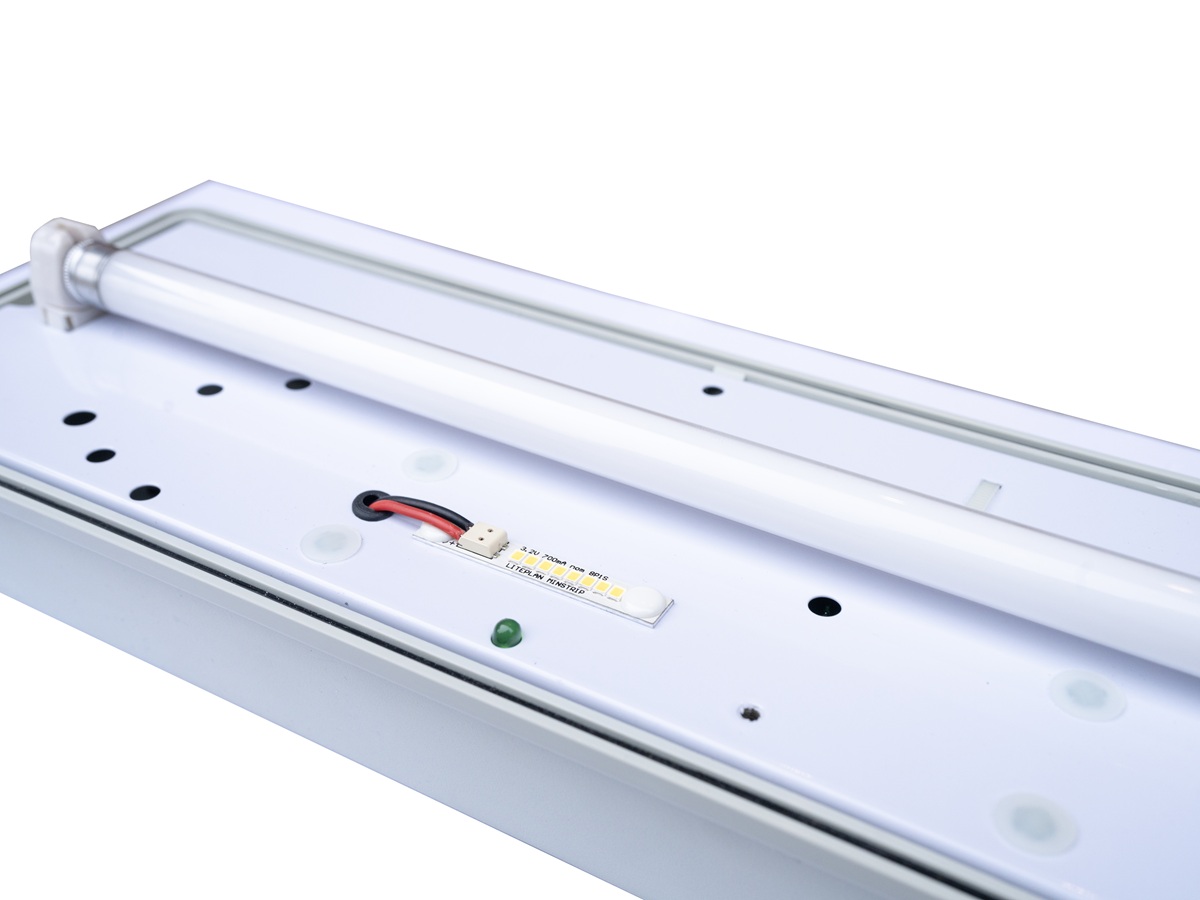

The MinEM is a dedicated emergency LED strip which is designed for auxiliary emergency applications, where the mains light source cannot be converted to emergency. We generally drive the MinEM at 700mA, which provides up to 385 lumen. In the case of a T5 or T8 LED tube application, this unobtrusive 52mm long LED strip can be fixed to the gear tray, adjacent to the LED tube. Where required, the MinEM can be driven at 900mA, which will provide up to 483 lumen. The product can be paired with our control gear to run as either centrally supplied emergency, basic self-contained emergency, self-test, DALI emergency or wirelessly monitored emergency.

Compatible Emergency Control Gear Kits

Part NumberOperationOutputApplication

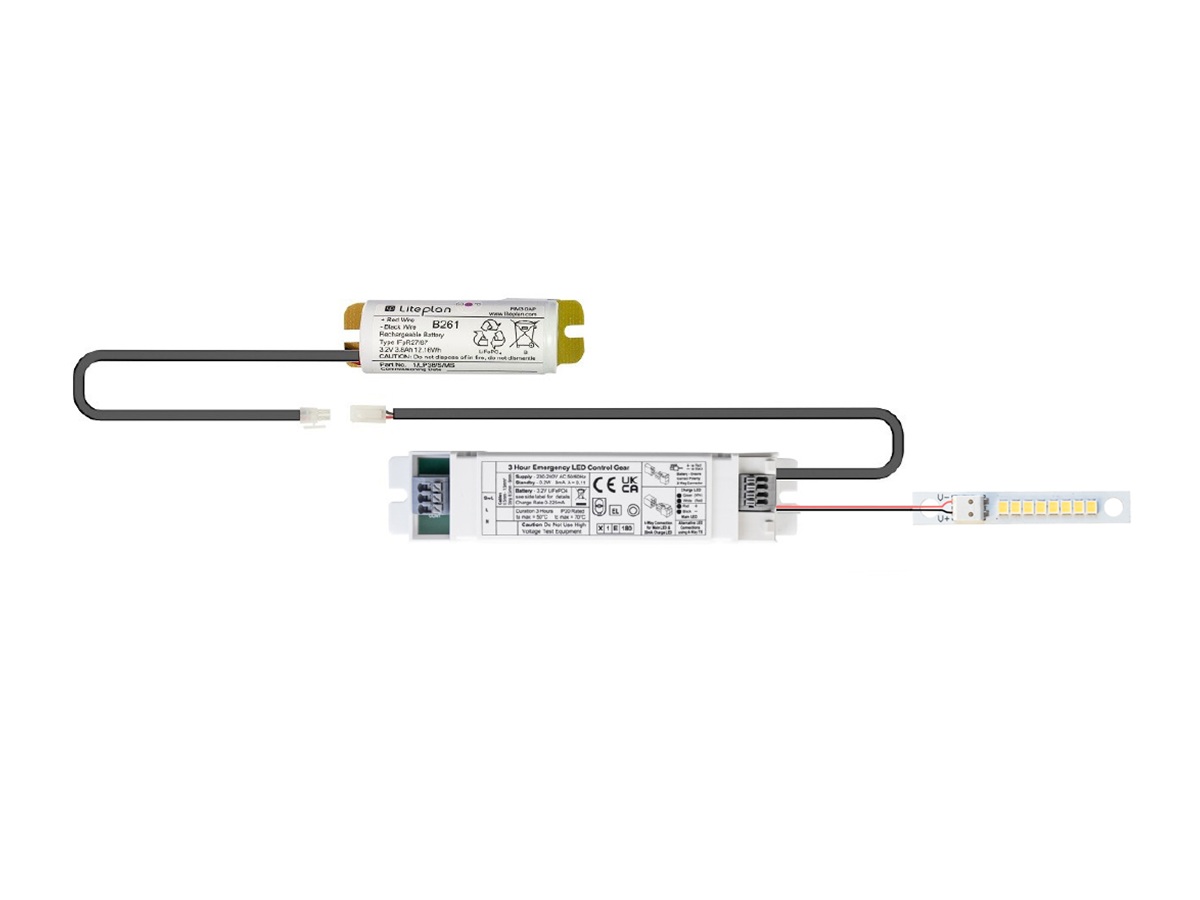

BNM/1Basic Maintained700mA - 385 Delivered LumenIntegral Use
ADM/1DALI Self-Test Maintained700mA - 385 Delivered LumenIntegral Use

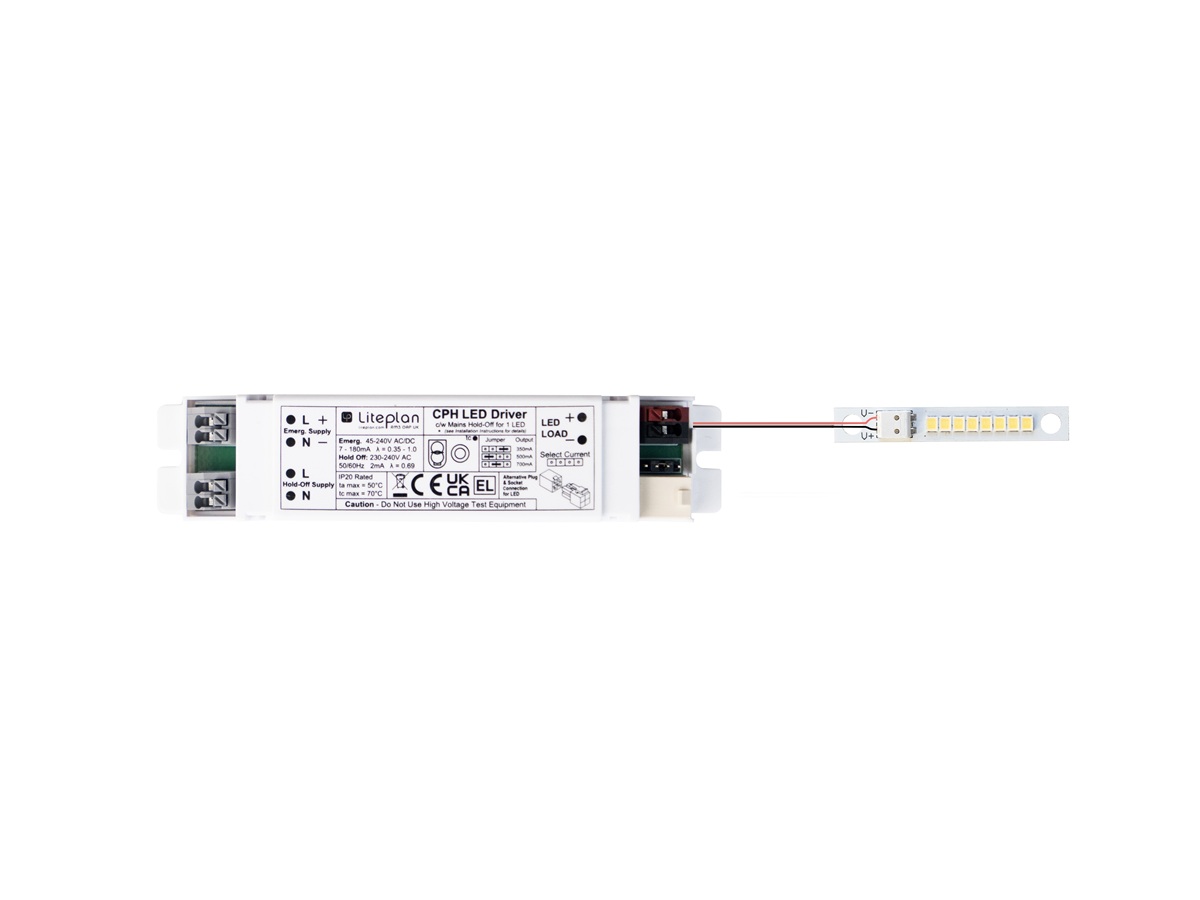

CPHCentrally Supplied700mA - 385 Delivered LumenIntegral Use

Order Codes

Order CodeDescription
MinEMPanel Mount Constant Current LED Strip

MinEM – Emergency LED Strip

Specifications

  • Panel Mount Emergency LED Strip
  • Simple Installation
  • Dedicated Emergency Light Source
  • High Output - Up to 385 Delivered Lumen
  • Basic, Self-Test, DALI Self-Test and Wirelessly Monitored Options Available
  • Centrally Supplied/Central Battery System Options Available
MinEM
Input Voltage4V DC Max
Power Rating2.1W at 700mA
Light SourceSamsung 5630
Beam AngleOpen Chips
Colour Temperature6000K
Tc Max80°C
Luminous Flux385 Delivered Lumen at 700mA
LED Strip Dimensions52mm x 8mm
Weight2g
