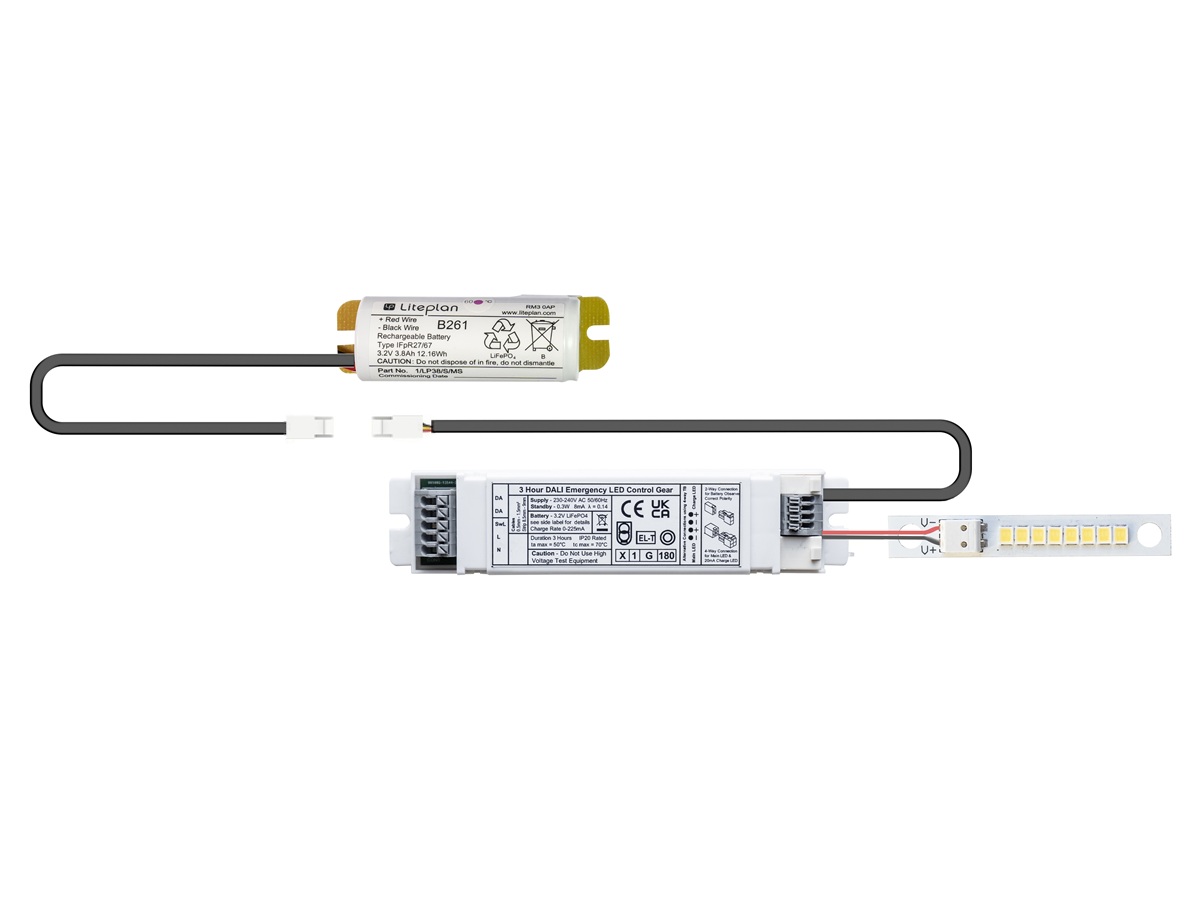

ADM/1/MinEM DALI-2 Non-Maintained LED Strip

A DALI-2 controlled 3-hour non-maintained 385 lumen emergency LED strip, supplied complete with the latest, extra long life lithium iron phosphate (LiFePO4) battery packs. The unit is designed to operate as a standalone emergency solution where there the main light source cannot be converted. This can also be used for night lighting, where required. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.

Order Codes

Order CodeDescription
ADM/1/MinEM700mA (3W) Emergency Control Gear with dedicated LED strip

ADM/1/MinEM DALI-2 Non-Maintained LED Strip

Specifications

  • DALI-2 Self-Test Operation
  • Suitable for Mounting Within a Luminaire
  • Extra Long Life LiFePO4 Batteries
  • 385lm Output LED Strip
  • Non-Maintained Operation with Night Lighting option
  • LiFePO4 Battery Protection with Automatic Cut-off
BMM/1
Input Voltage230-240 Volts AC – 50/60Hz
Power Rating Maintained 5.7W 31mA λ = 0.75
Power Rating Non-Maintained (standby) *0.2W 8mA λ = 0.1
Emergency Duration3-Hours
Battery TypeLiFePO4
Battery Voltage3.2V
Battery Capacity3.8Ah
Charge Current225mA Nominal
Recharge Time24-Hours
Discharge Current900mA Nominal
Ambient Temperature (Ta)5°C to 35°C
Case Temperature (Tc) PointCase Side (Centre)
Case Temperature (Tc) Max Module70°C
Case Temperature (Tc) Max Battery55°C
Module Dimensions135mm x 30mm x 21mm
Module Fixing Centres125mm x M4
Battery Dimensions 90mm x 24mm x 28mm
Battery Fixing Centres80mm x M4
Overall Weight0.25kg

* Following its initial charge, the BMM/1 will spend 90% of it’s operational life in standby mode.
