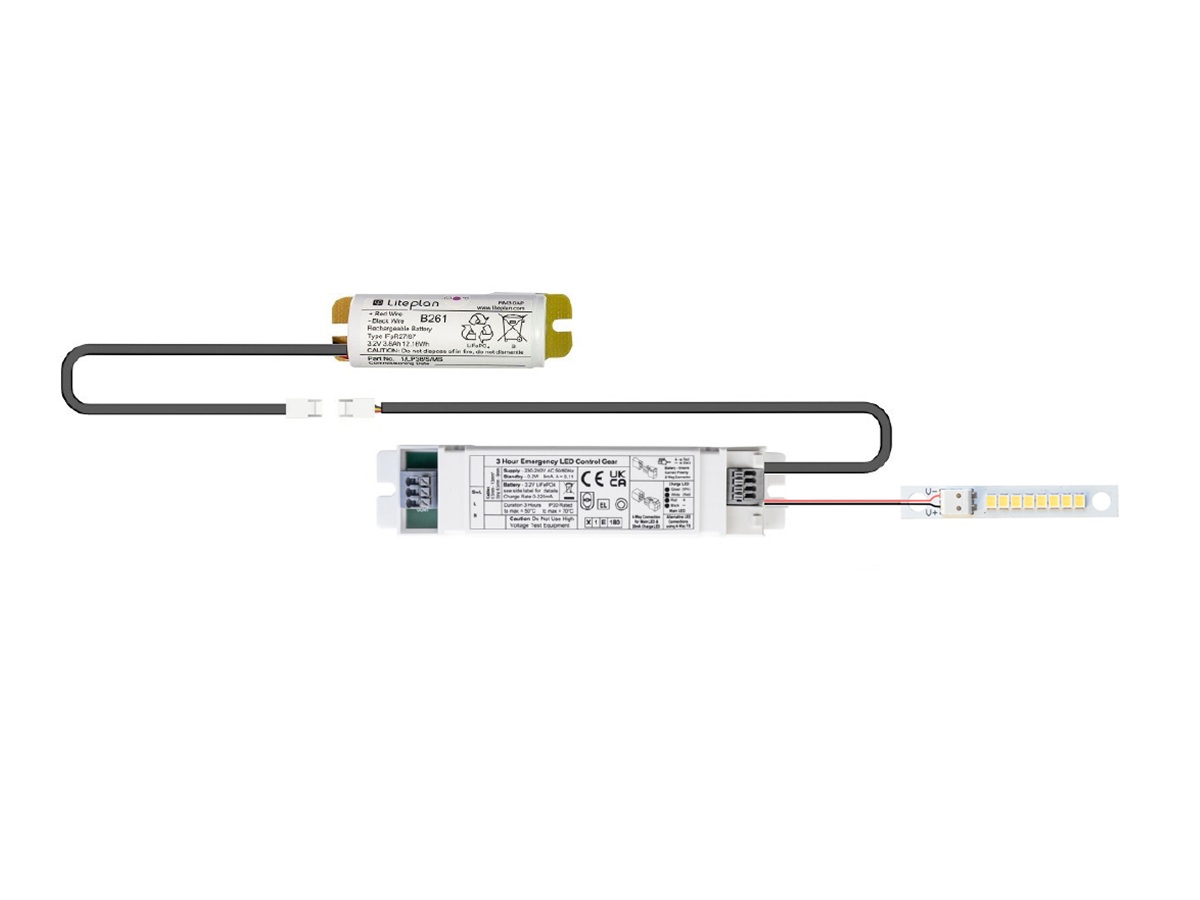

BNM/1/MinEM Non-Maintained LED Strip
A 3-hour non-maintained 385lm emergency LED strip, supplied complete with the latest, extra long life lithium iron phosphate (LiFePO4) battery packs. The unit is designed to operate as a standalone emergency solution where there the main light source cannot be converted.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| BNM/1/MinEM | 700mA (3W) Emergency Control Gear with dedicated LED strip |
For a full list of compatible devices, please see our LED Device range.
Specification
BNM/1/MinEM Non-Maintained LED Strip
Specifications
- Suitable for Mounting Within a Luminaire
- Extra Long Life LiFePO4 Batteries
- 385lm Output LED Strip
- Non-Maintained Operation
- LiFePO4 Battery Protection with Automatic Cut-off
| BNM/1 | |
| Input Voltage | 230-240 Volts AC – 50/60Hz |
| Power Rating Charing | 1.7W 14mA λ = 0.5 |
| Power Rating Standby * | 0.2W 8mA λ = 0.1 |
| Emergency Duration | 3-Hours |
| Battery Type | LiFePO4 |
| Battery Voltage | 3.2V |
| Battery Capacity | 3.8Ah |
| Charge Current | 225mA Nominal |
| Recharge Time | 24-Hours |
| Discharge Current | 900mA Nominal |
| Ambient Temperature (Ta) | 5°C to 35°C |
| Case Temperature (Tc) Point | Case Side (Centre) |
| Case Temperature (Tc) Max Module | 70°C |
| Case Temperature (Tc) Max Battery | 55°C |
| Module Dimensions | 135mm x 30mm x 21mm |
| Module Fixing Centres | 125mm x M4 |
| Battery Dimensions | 90mm x 24mm x 28mm |
| Battery Fixing Centres | 80mm x M4 |
| Overall Weight | 0.25kg |
* Following its initial charge, the BMM/1 will spend 90% of it’s operational life in standby mode.
