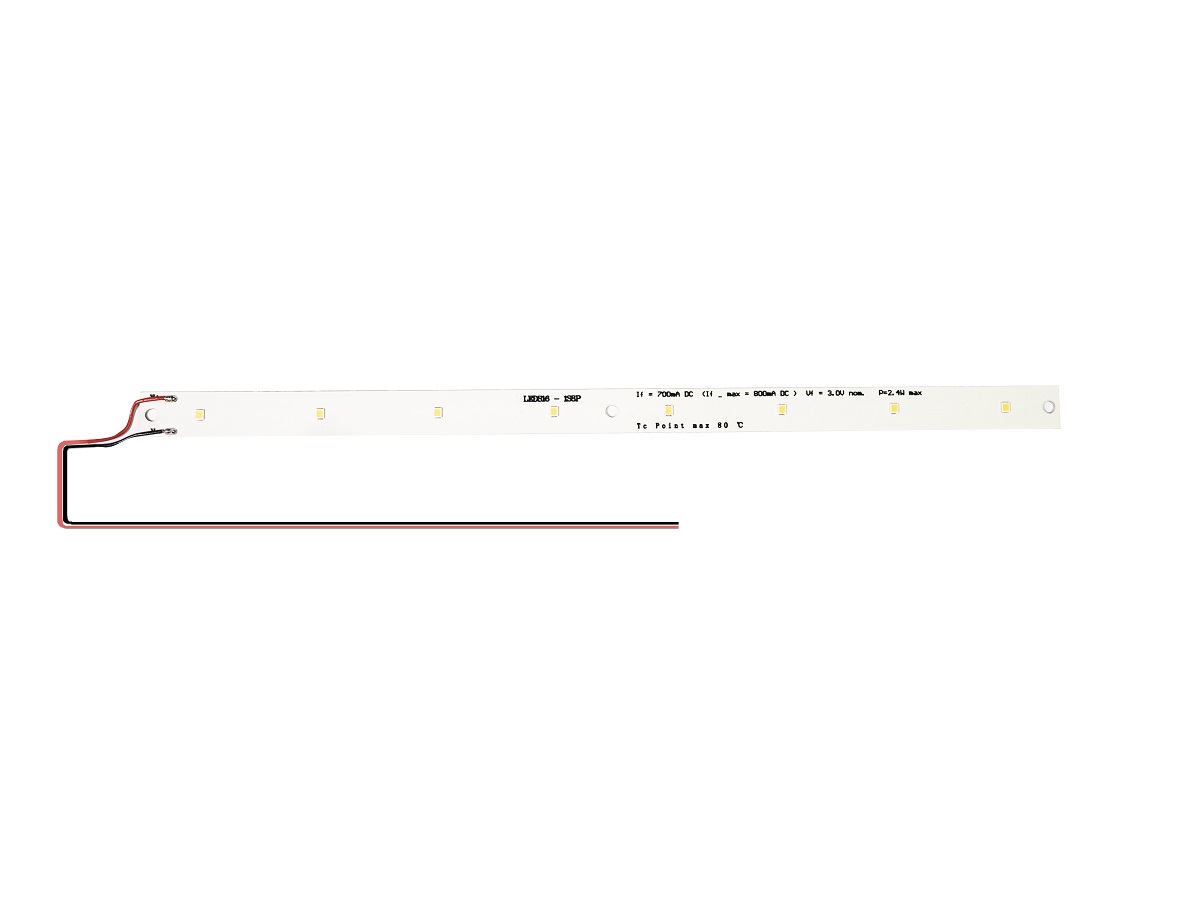

LED/S16 – Emergency LED Strip
The LED/S16 is a dedicated emergency LED strip which is designed for auxiliary emergency applications, where the mains light source cannot be converted to emergency. The LED can be driven up to 700mA and provides up to 240
lumen. In the case of a T5 or T8 LED tube application, this 300mm long LED strip can be fixed to the geartray, adjacent to the LED tube.
The product can be paired with our control gear to run as either centrally supplied emergency, basic self-contained emergency, self-test, DALI emergency or wirelessly monitored emergency.
Compatible Emergency Control Gear Kits
| Part Number | Operation | Output | Application |

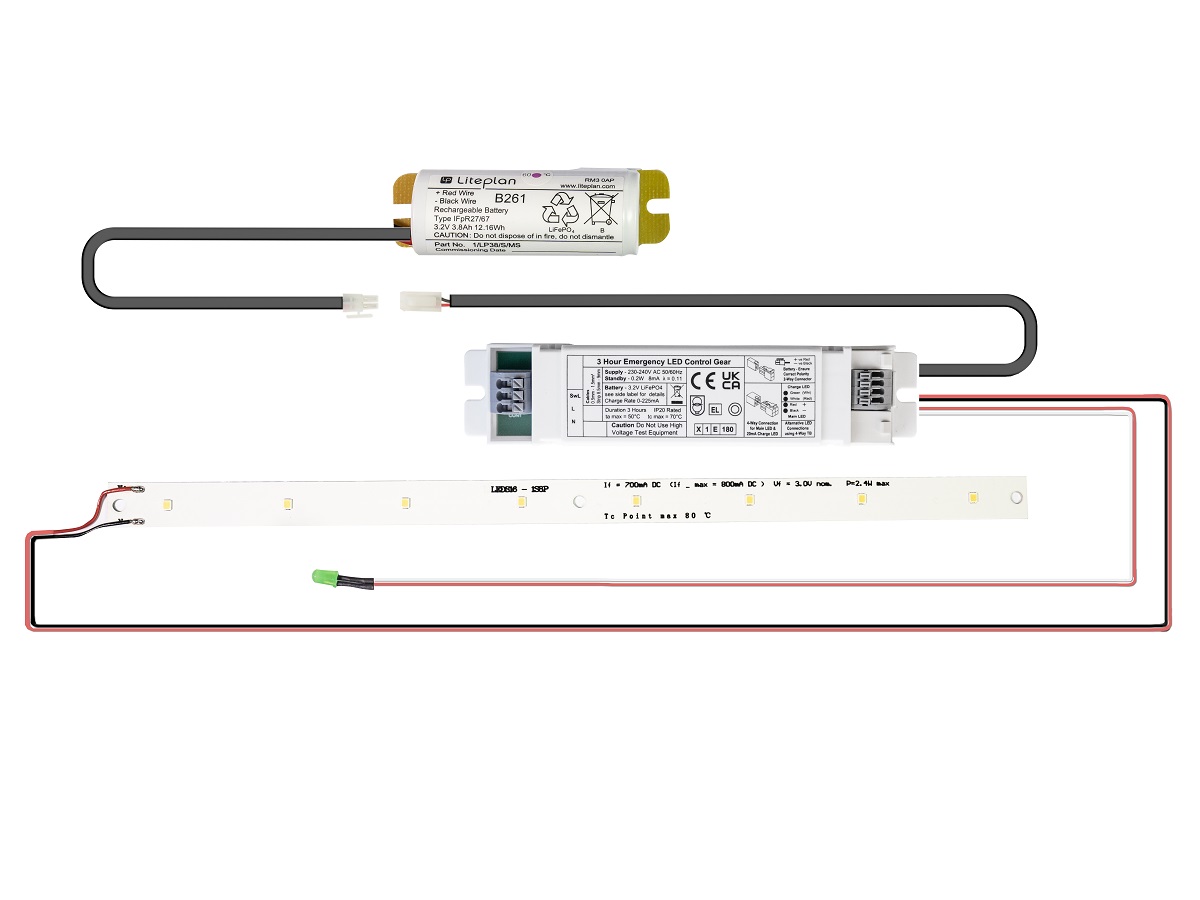

| BNM/1 | Basic Non-Maintained | 700mA - 240 Delivered Lumen | Integral Use |
| ADM/1 | DALI Self-Test Maintained | 700mA - 240 Delivered Lumen | Integral Use |

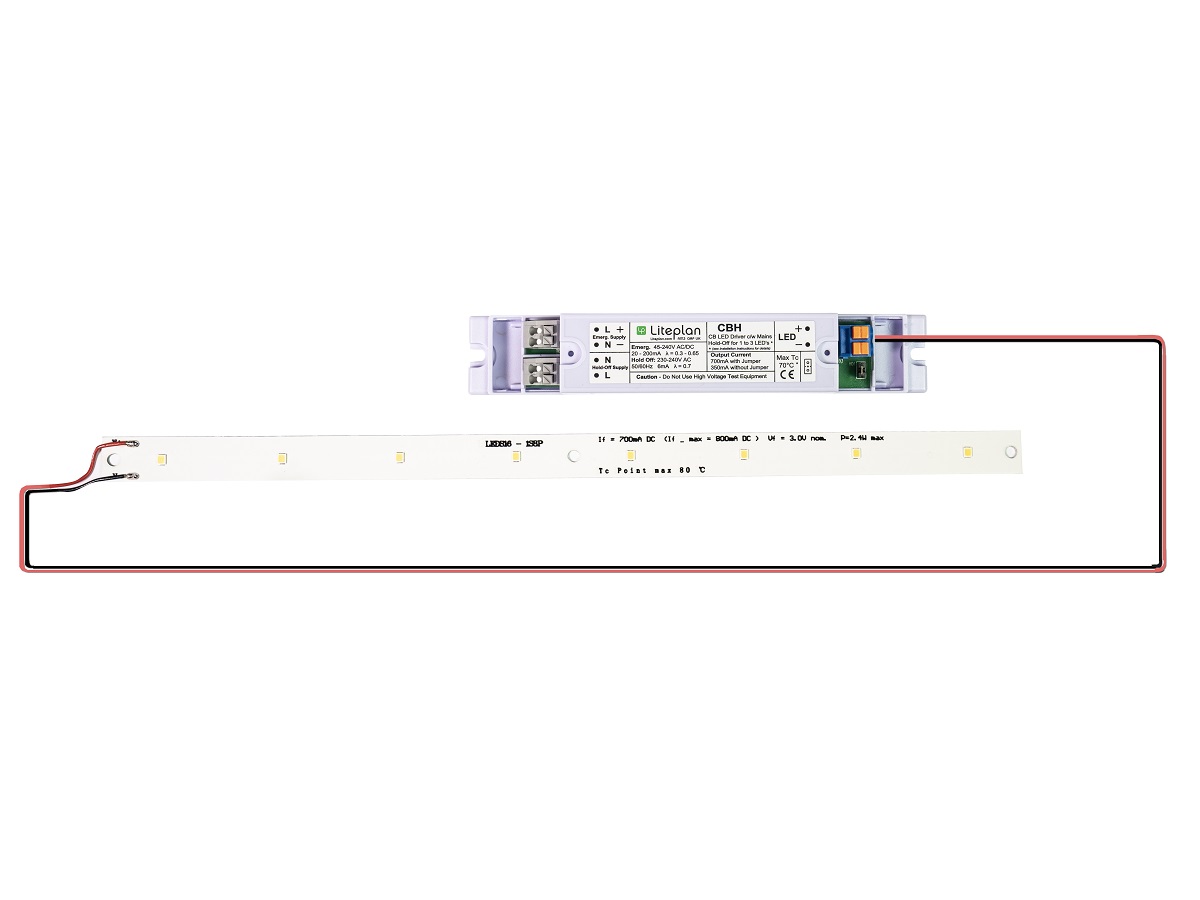

| CPH | Centrally Supplied | 700mA - 240 Delivered Lumen | Integral Use |
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| LED/S16 | Panel Mount Constant Current LED Strip |
Specification
LED/S16 – Emergency LED Strip
Specifications
- Panel Mount Emergency LED Strip
- Simple Installation
- Dedicated Emergency Light Source
- High Output - Up to 240 Delivered Lumen
- Basic, Self-Test, DALI Self-Test and Wirelessly Monitored Options Available
- Centrally Supplied/Central Battery System Options Available
| LED/S16 | |
| Input Voltage | 4V DC Max |
| Power Rating | 2.1W at 700mA |
| Light Source | Samsung 5630 |
| Beam Angle | Open Chips |
| Colour Temperature | 6000K |
| Tc Max | 80°C |
| Luminous Flux | 240 Delivered Lumen at 700mA |
| LED Strip Dimensions | 304mm x 15mm |
| Weight | 5g |
