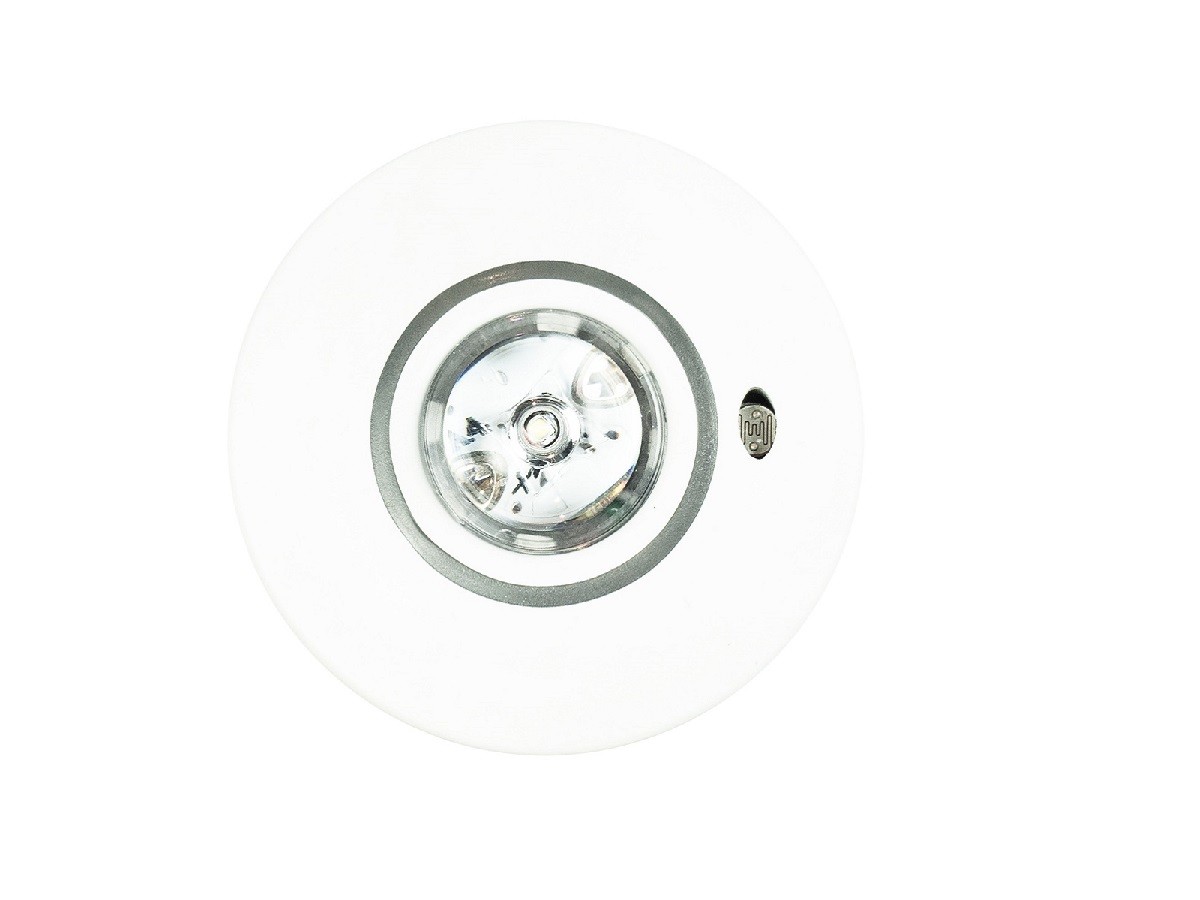

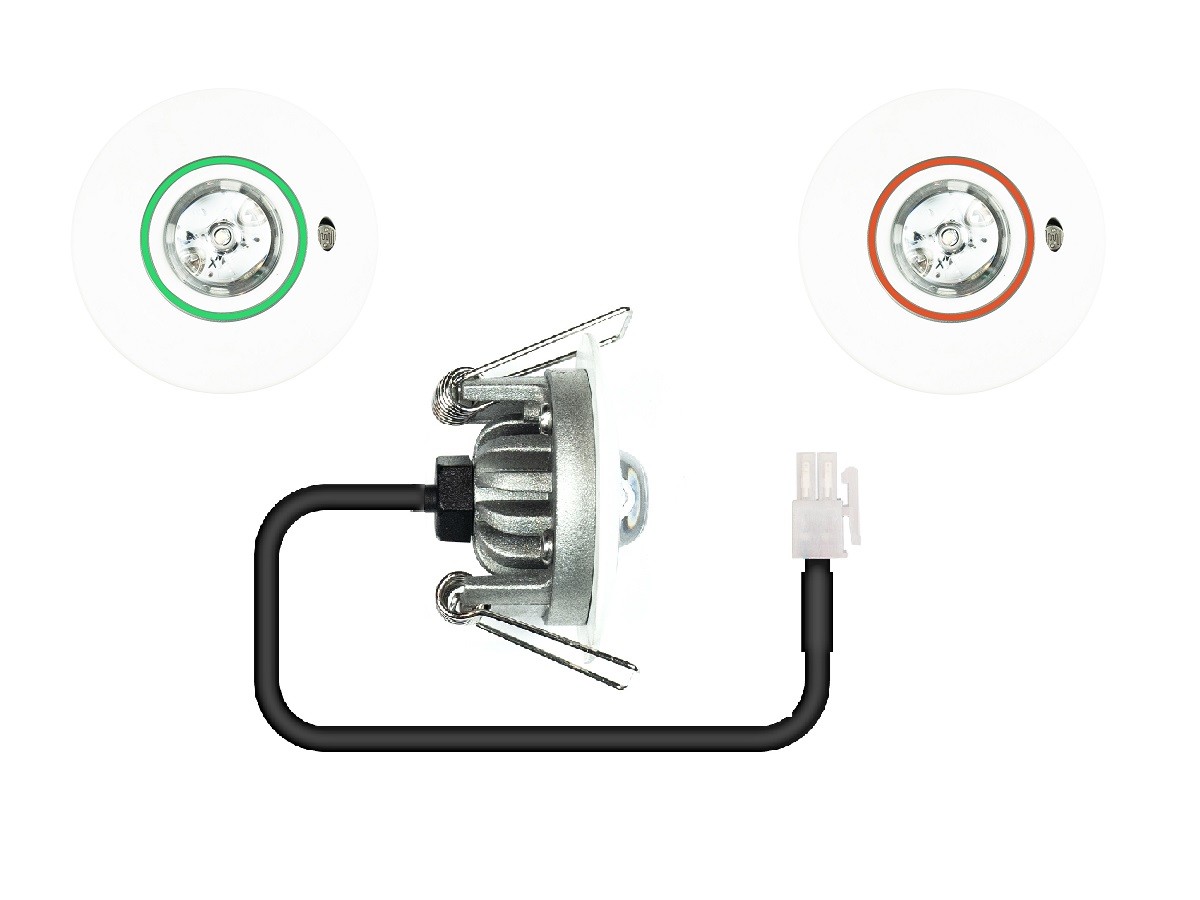

Dimming Halo Emergency LED for Hospitality and Healthcare

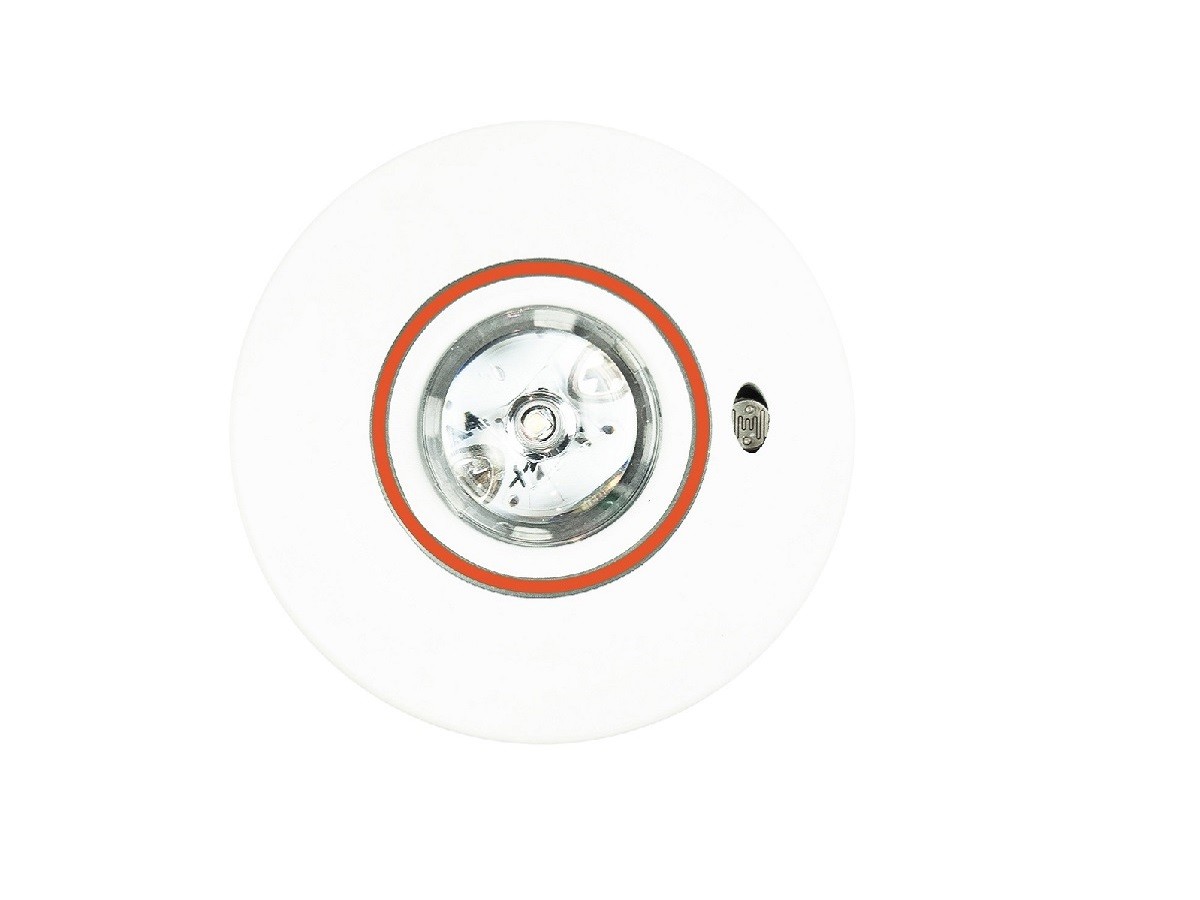

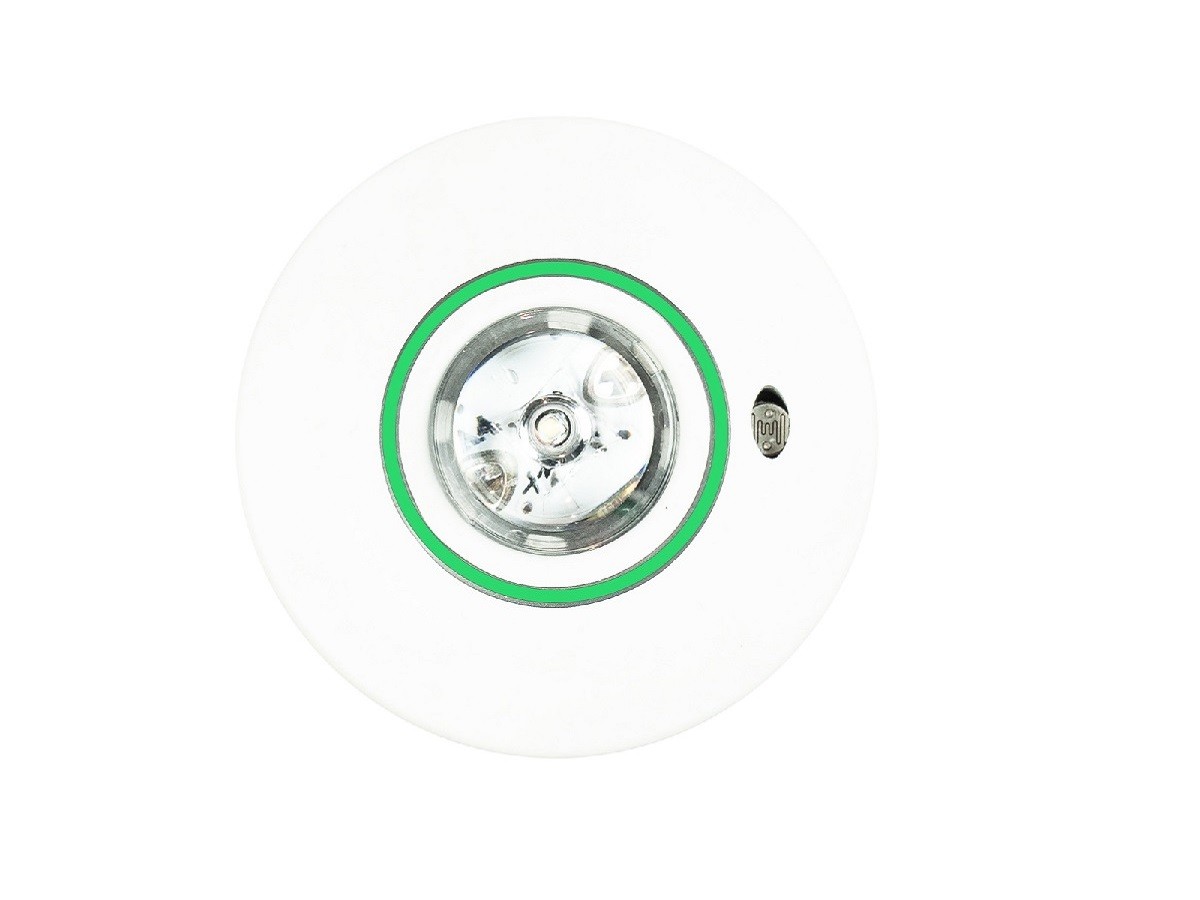

A constant current 135° wide beam angle device which can be driven up to 700mA. The face incorporates the design protected, Halo effect, bi-colour LED for green charge healthy and red self-test fault indication. The Halo charge LED is designed to dim with the ambient lighting of the room, making this product perfect for hotel rooms. This allows the occupant of the room a restful night sleep without unwanted light disturbance.
Compatible Emergency Control Gear Kits
| Part Number | Operation | Output | Application |
| S/BNM/1 | Basic Non-Maintained | 700mA – 267 Delivered Lumen | Standalone Use |
| BNM/1 | Basic Non-Maintained | 700mA – 267 Delivered Lumen | Integral Use |
| ADM/1 | DALI-2 Self-Test Maintained | 700mA – 267 Delivered Lumen | Integral Use |
| S/ADM/1 | DALI-2 Self-Test Maintained | 700mA – 267 Delivered Lumen | Standalone Use |
| CPH | Centrally Supplied/Central Battery | 700mA – 267 Delivered Lumen | Integral Use |
| S/CPH | Centrally Supplied/Central Battery | 700mA – 267 Delivered Lumen | Standalone Use |
Order Codes
| Order Code | Description | ||
|---|---|---|---|
| LED/44/OA/W | White (RAL9016) Bezel Constant Current Device |
Specification
Dimming Halo Emergency LED for Hospitality and Healthcare
Specifications
- High Output – Up To 268 Delivered Lumen
- Ceiling Recess Mounting – 40mm to 43mm Aperture
- Standard, Self-Test and DALI Self-Test Options
- Surface Mount Options Available
- Registered Design Dimming Halo Charge/Fault Indicator
| LED/44/OA | |
| Input Voltage | 4V DC Max |
| Power Rating | 700mA |
| Light Source | Samsung LH315B |
| Beam Angle | 135° |
| Cut Out | Φ 40mm to 43mm |
| Light Colour | Cool White |
| Colour Temp | 6500K |
| Luminous Flux | 268 Delivered Lumen @ 700mA |
| General CRI | >75 |
| Tc Max | 80°C LED Back plate |
| Wiring Method | Series connection only via C4201 Series Plug |
| Dimensions | Φ 50mm x 45mm (Min Void Depth 55mm) |
| Weight | 44g |
