Products

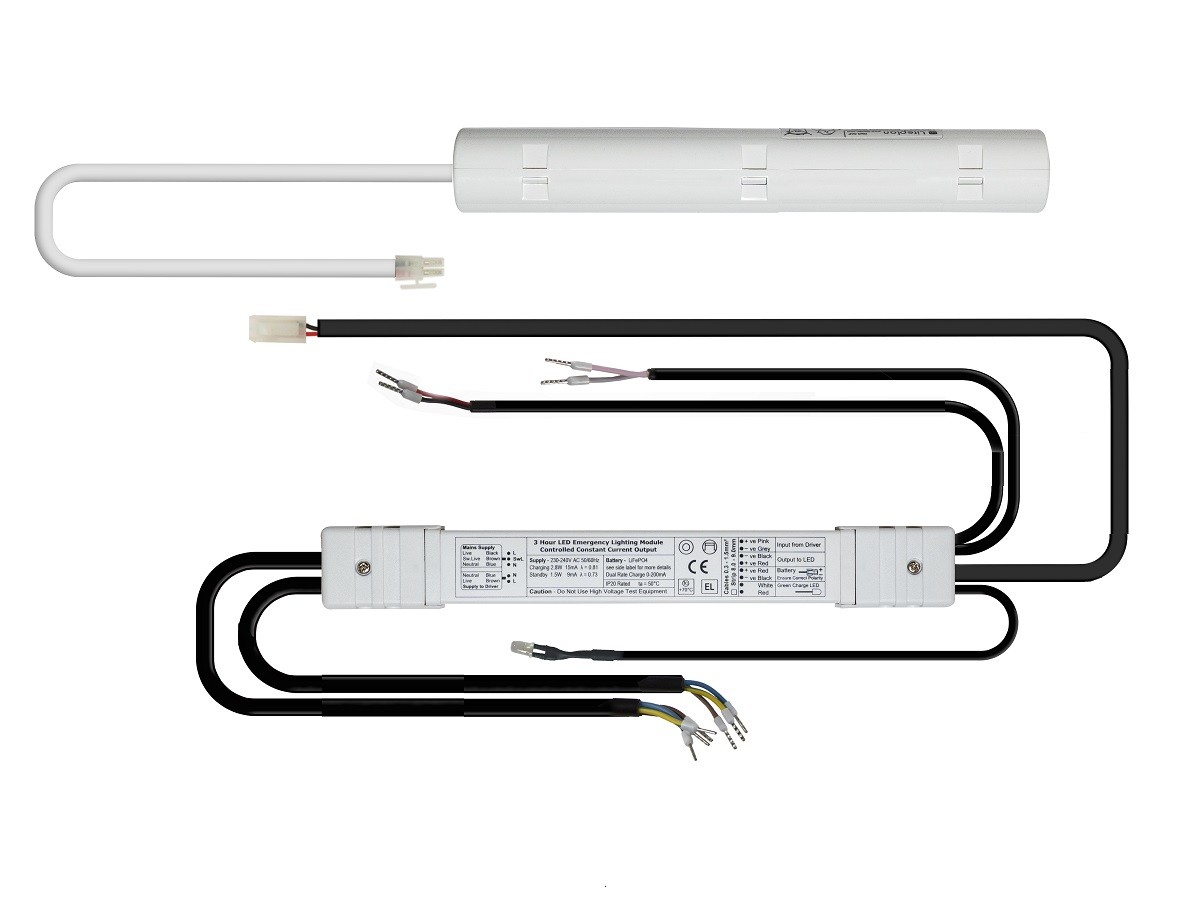

The TLP/1S/TP40/R, is a two part remote, 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. Whilst the TLP/1S/TP40/R is designed for high voltage LEDs or longer linear applications, it can run certain self-driven lamps like GU10s (subject to testing). The unit operates with lithium iron phosphate (LiFePO4) batteries and is supplied as a pre-wired two part pack for mounting remotely from the luminaire where integral mounting is not possible. The pack will pass through a 40mm, or greater, aperture. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month. The TLP range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.
