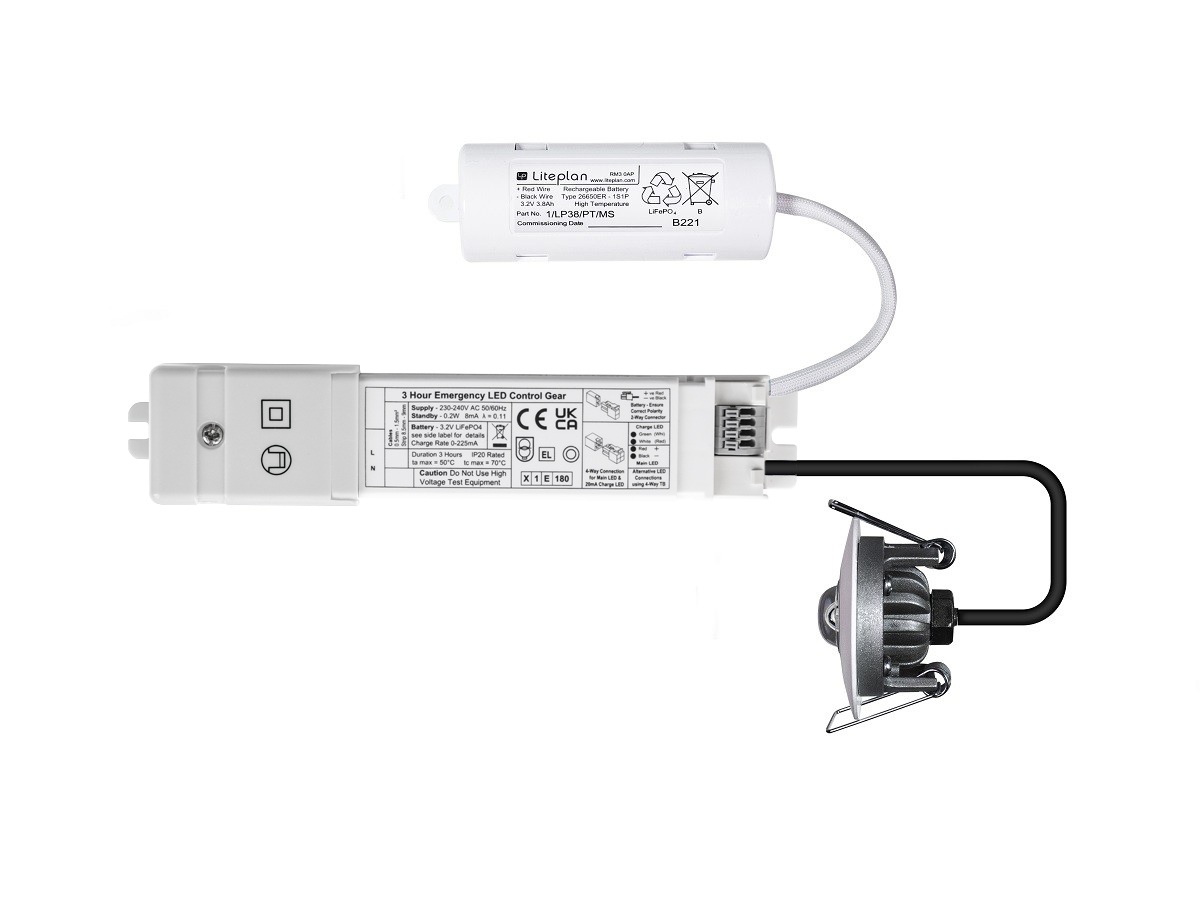

S/BNM/1 Ceiling Recessed Basic Emergency
A 3-hour 700mA non-maintained emergency driver designed for constant current LED devices, supplied complete with the latest, extra long life lithium iron phosphate (LiFePO4) battery packs. This product has plug and play capability with strain relief on the cables making it suitable for recessing into the ceiling void.
As a complete emergency solution, the unit can be supplied with one of our LED/43 range of LEDs, which offer up to a 268 lumen output and with either open area, corridor or flood optics. White (RAL9016) and black (RAL9005) bezels are available, however white is the default colour, if not specified.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
Order Codes
| Order Code | complete with | LED Device | Description |
|---|---|---|---|
| S/BNM/1/43/FL/W | c/w | LED/43/FL/W | 700mA Flood Optic with Halo Charge LED |
| S/BNM/1/43/OA/W | c/w | LED/43/OA/W | 700mA Open Area with Halo Charge LED |
| S/BNM/1/43/CO/W | c/w | LED/43/CO/W | 700mA Corridor Optic with Halo Charge LED |
| S/BNM/1/44/W | c/w | LED/44 | 700mA Open Area with Dimming Halo Charge LED |
These products can also be ordered as separate emergency control gear parts.
For a full list of compatible devices, please see our LED Device range.
Specification
S/BNM/1 Ceiling Recessed Basic Emergency
Specifications
- Plug and Play with Plugs and Sockets
- Simple Installation
- 700mA Output
- Operates with the Latest LiFePO4 Batteries
- LiFePO4 Automatic Battery Protection and Recovery
| S/ALP/1 | |
| Input Voltage | 230-240 Volts AC – 50/60Hz |
| Power Rating Charging | 2.5W 18mA λ = 0.6 |
| Power Rating Charged | 0.4W 9mA λ = 0.2 |
| Emergency Duration | 3-Hours |
| Battery Type | LiFePO4 |
| Battery Voltage | 3.2V |
| Battery Capacity | 3.8Ah |
| Charge Current | 225mA |
| Recharge Time | 24 Hours |
| Discharge Current | 1000mA |
| Ambient Temperature (Ta) | 0°C to 35°C |
| Tc Point | Case Side (Centre) |
| Module Case Temperature (Tc) | 0°C to 70°C |
| Battery Case Temperature (Tc) | 0°C to 55°C |
| Module Dimensions | 150mm x 30mm x 28mm |
| Fixing Centres | 145mm |
| Module Weight | 0.09kg |
| Overall Weight (with LED) | 0.34kg |
| Cut-out (aperture) | 40mm |
