OLP/1 Bulkhead

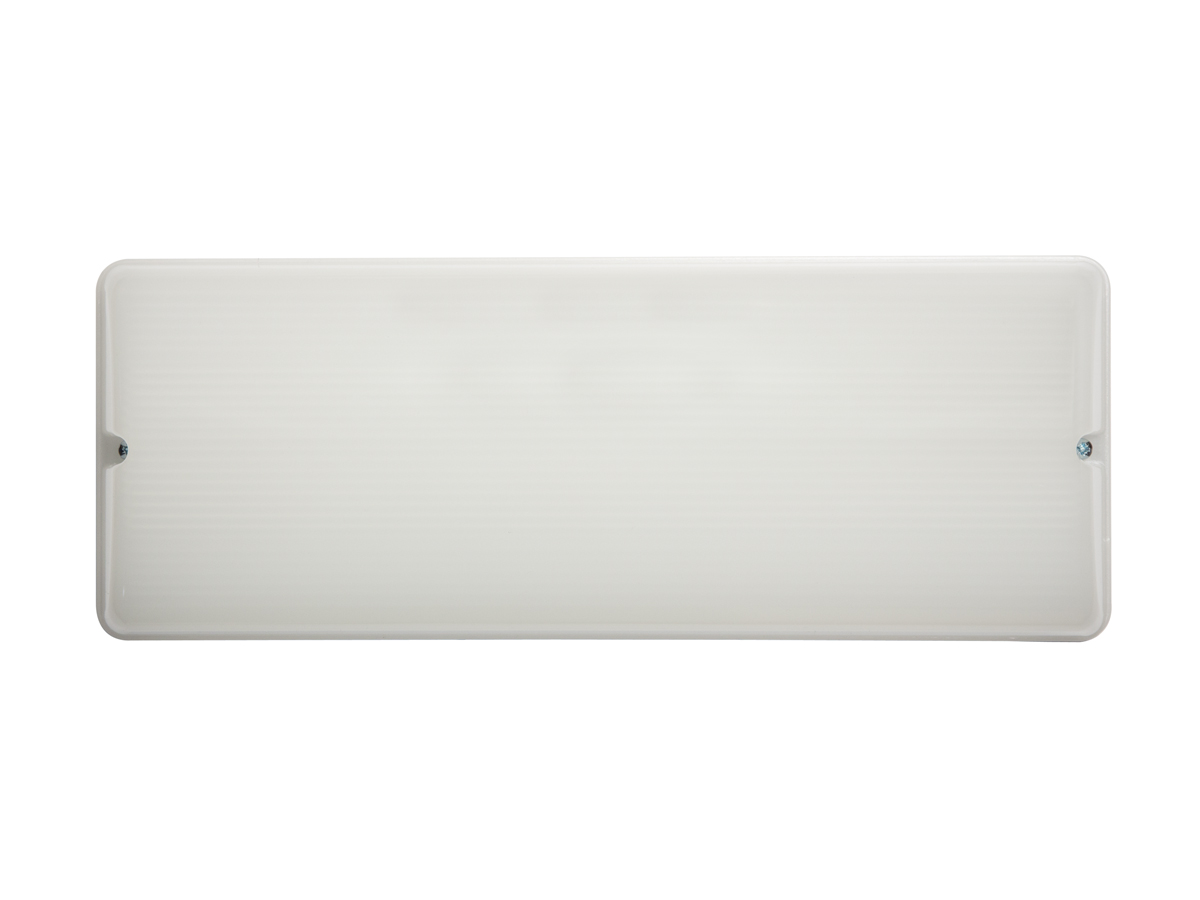

A high quality, robust bulkhead luminaire suitable for high ceilings. The body of the fitting is IP65 weatherproof rated as standard. High quality U.V. stabilised white base moulding and an opal diffuser which is specifically designed to maximise the light output ratio (LOR) from the LED light source. The output, after the diffuser, is 1163 delivered lumen in mains operation and 358 delivered lumen in emergency operation. The product can be supplied with a kit of self-adhesive legends to convert the luminaire into an IP65 exit sign. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month. The OLP/1 can operate with the LiteMesh Wireless Self-test system.

Order Codes

Order Code Description
OLP/1/NM IP65 3-Hour Non-Maintained LED Bulkhead
OLP/1/M IP65 3-Hour Maintained LED Bulkhead
OLP/1/NM/DA DALI Self-Test Non-Maintained IP65 3-Hour LED Bulkhead
OLP/1/M/DA DALI Self-Test Maintained IP65 3-Hour LED Bulkhead
OLP/1/NM/LMEM LiteMesh Ready Wireless Self-test non-maintained IP65 Bulkhead
OLP/1/M/LMEM LiteMesh Ready Wireless Self-test maintained IP65 Bulkhead
OLP/BEZ Semi-recessing kit, consisting of trim plate & mounting brackets

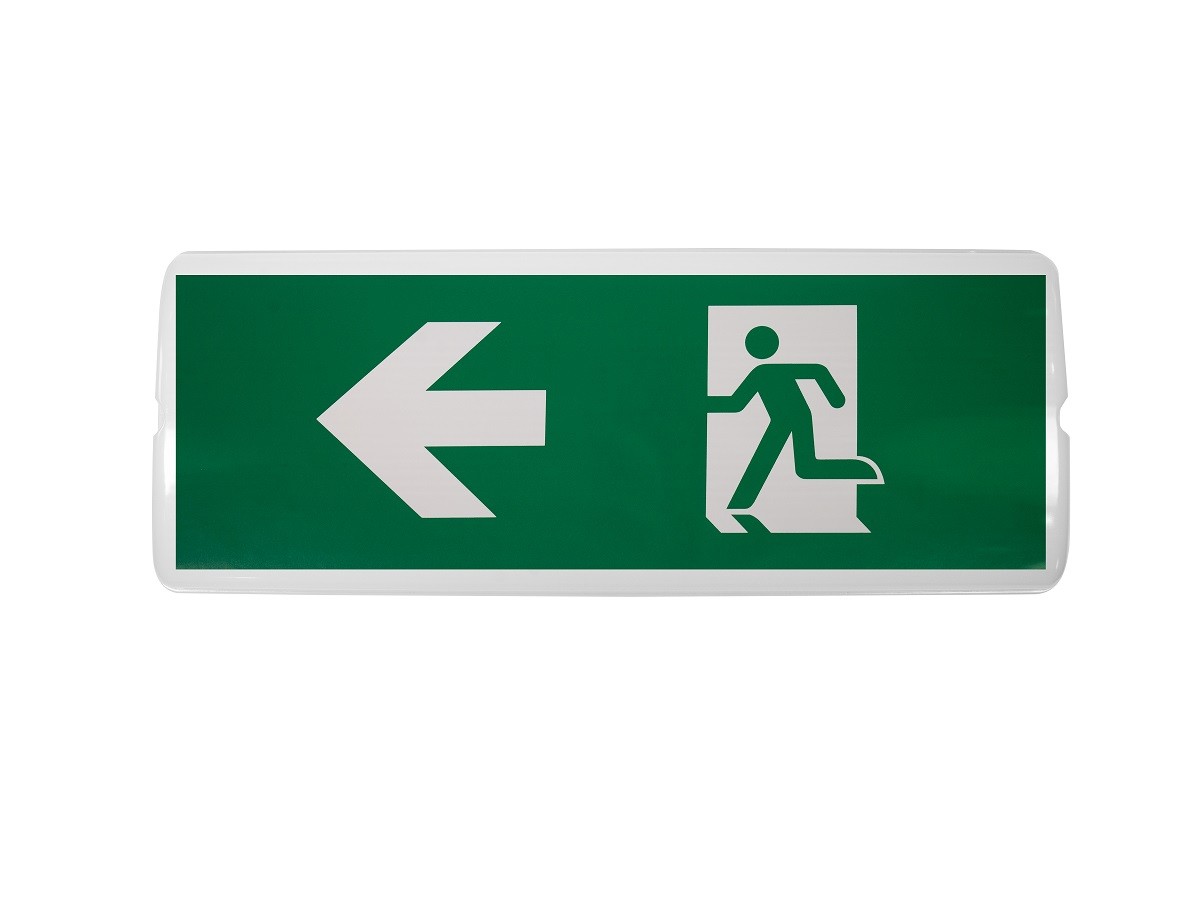

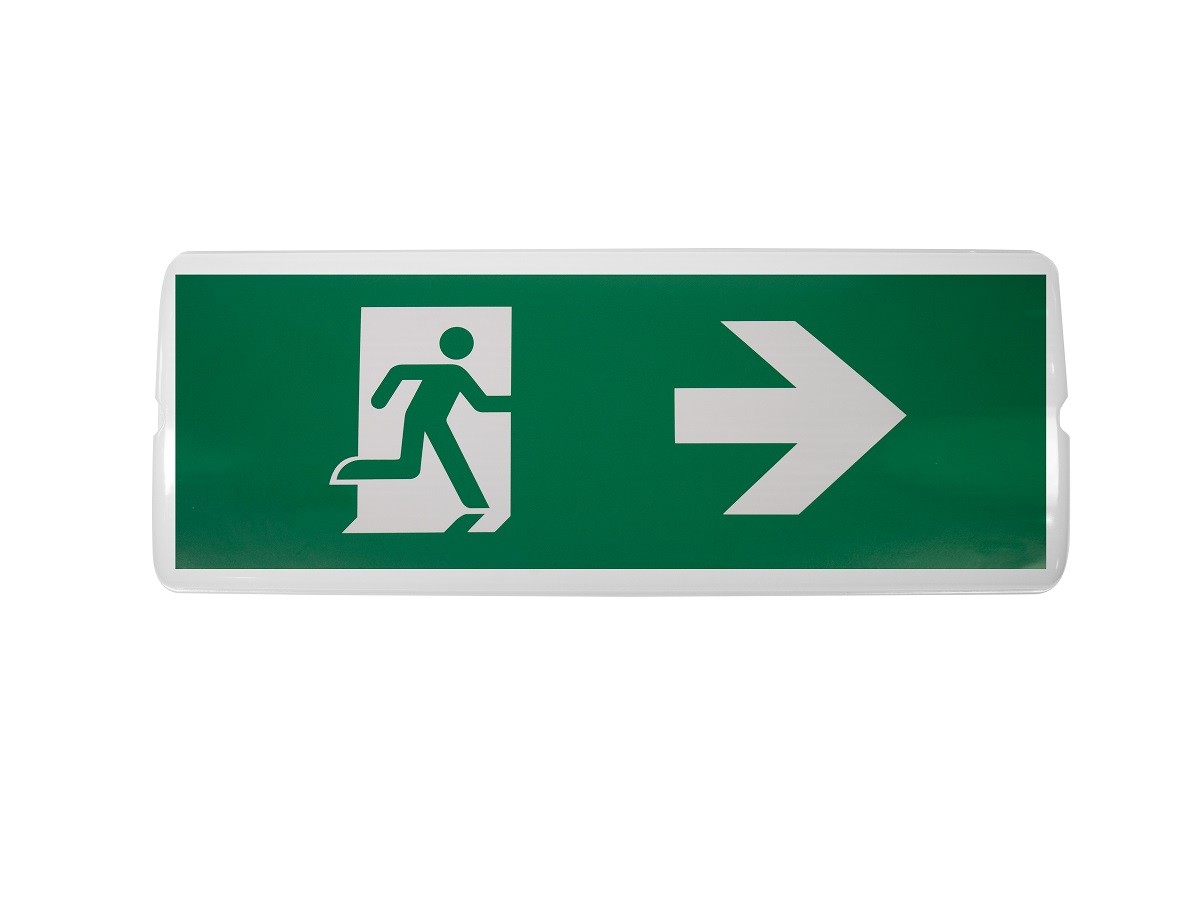

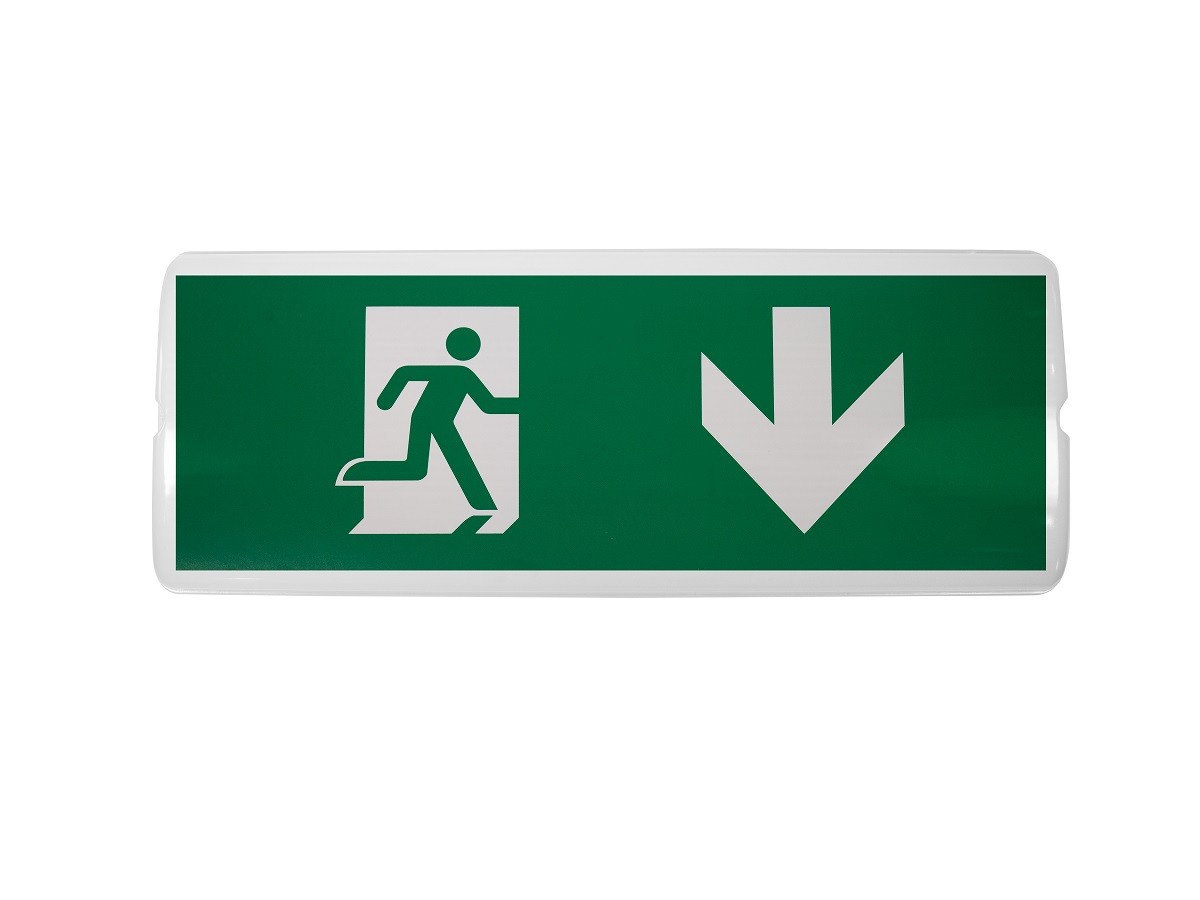

OLP/LG Self-Adhesive Legend Kit to make IP65 Exit Sign

OLP/1 Bulkhead

Specifications

  • IP65 Rated for Damp or Wet Locations
  • 1163lm in Mains Operation and 358lm in Emergency
  • High LOR Diffuser for maximum Efficiency
  • UV Stabilised White Base
  • Basic Emergency, DALI Self-test or LiteMesh Wireless Self-test
  • Maintained or Non-Maintained Operation
  • LiFePO4 Automatic Battery Protection and Recovery
  • IK Rating of IK10
OLP/1/M OLP/1/NM
Input Voltage 220-240 Volts AC – 50/60Hz
Power Rating - Charged *1.2W 13mA λ = 0.40
Power Rating Basic - Charging * 2.7W 17mA λ = 0.67
Power Rating DALI Self-test - Charging *2.8W 17mA λ = 0.70
Emergency Duration3-Hours
Light Source Vossloh-Schwabe 8.23W 23.5V LED Strip
Battery Type LiFePO4
Battery Voltage 3.2V
Battery Capacity 3.8Ah
Charge Current 225mA nominal
Recharge Time 24-Hours
Cut-Off Voltage (DDP) 2.5V
Discharge Current 900mA
Ambient Temperature 0°C to 35°C
IP Rating IP65
Dimensions370mm x 140mm x 89mm
Weight2.1kg2kg
IK RatingIK10

* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode
