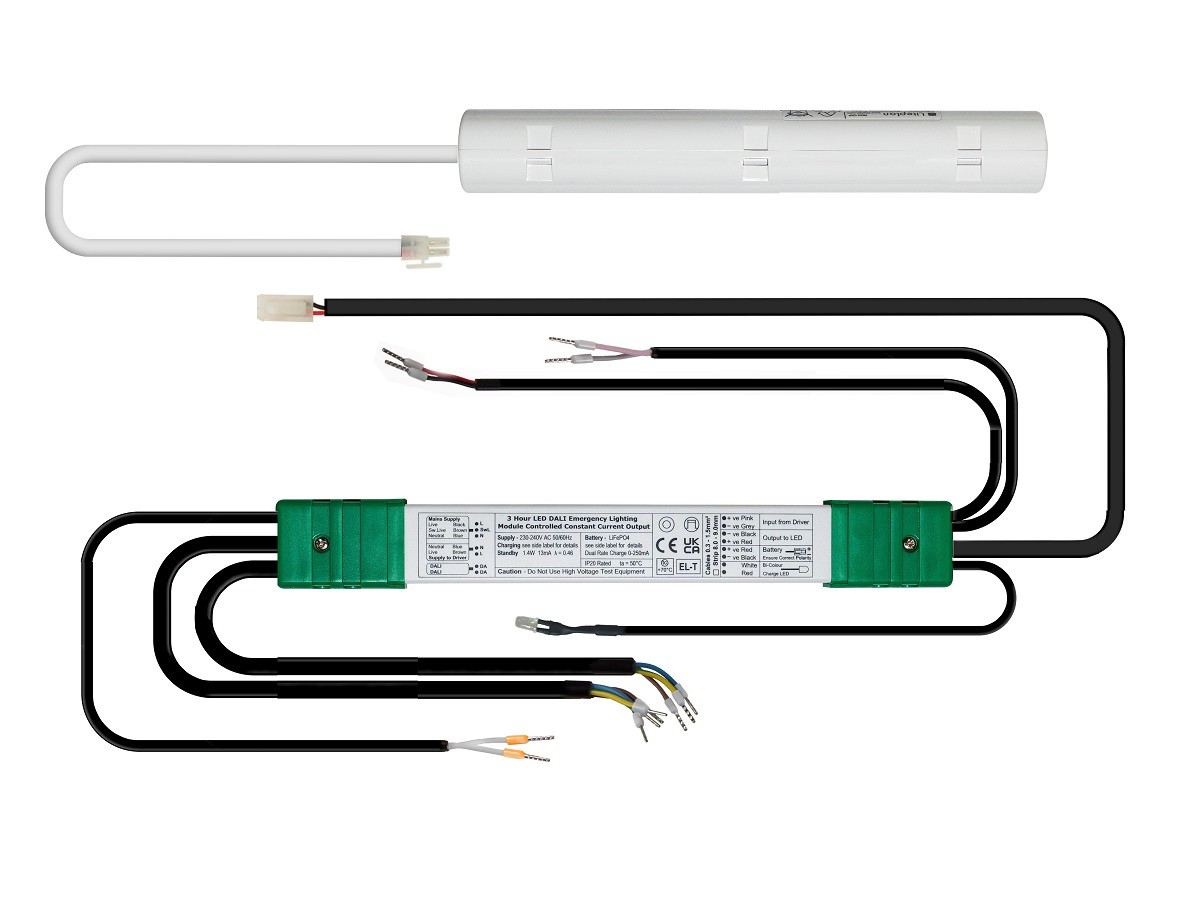

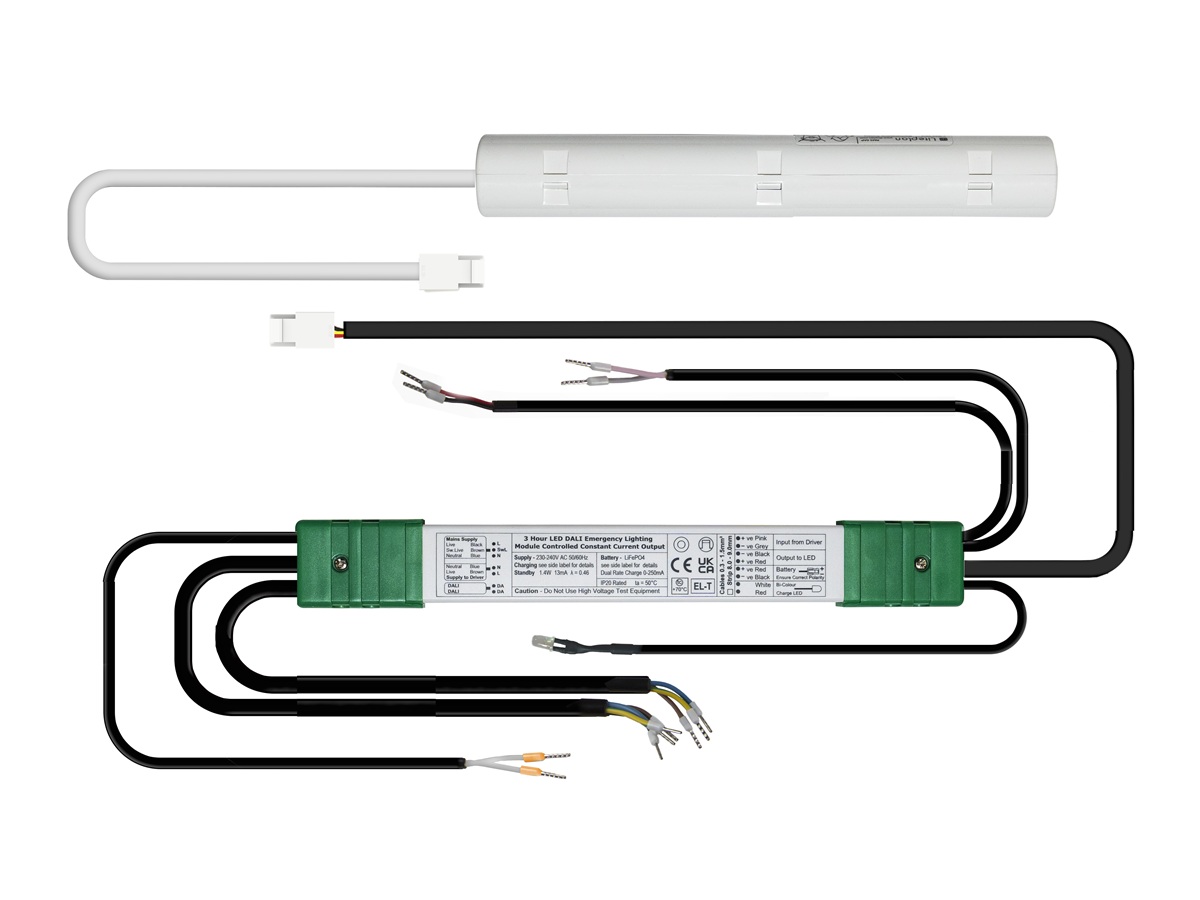

The T2N/1S/TP40/R, is a high-quality DALI-2 Self-Test 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. Whilst the T2N/1S/TP40/R is designed for high voltage LEDs or longer linear applications, it can run certain self-driven lamps such as GU10s (subject to testing). The unit is designed to work with lithium iron phosphate (LiFePO4) batteries. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The pack features a bi-colour charge healthy/fault indicator LED on a flying lead. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour. If a DALI bus is not connected to the T2N/1S/TP40, then the unit will operate as a standalone self-test unit, reporting faults via a red indication of the charge LED. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
