Products

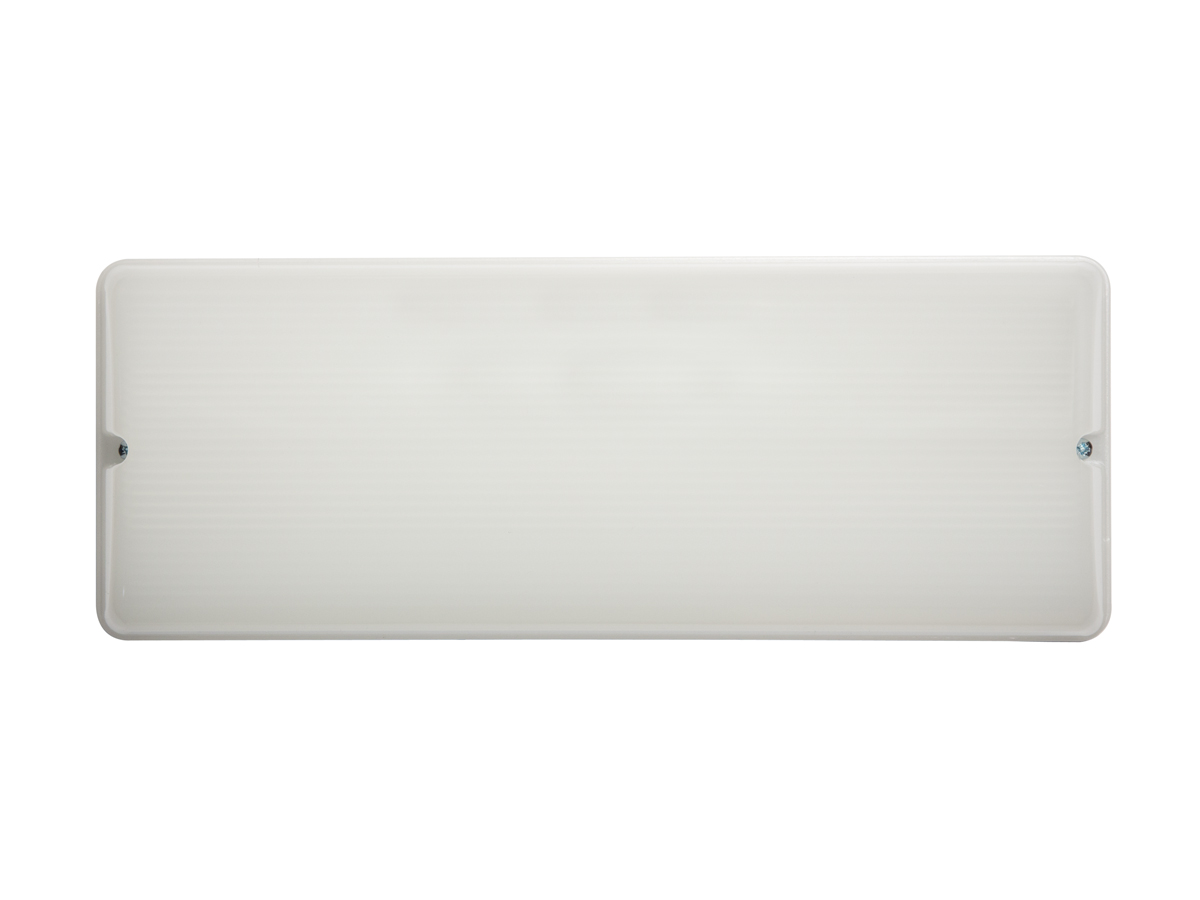

OLP/2 Bulkhead

A high output, robust bulkhead luminaire suitable for high ceilings. The body of the fitting is IP65 weatherproof rated as standard. High quality U.V. stabilised white base moulding and an opal diffuser which is specifically designed to maximise the light output ratio (LOR) from the LED light source. The output, after the diffuser, is 1163 delivered lumen in mains operation and 842 delivered lumen in emergency operation, making this the perfect solution for warehousing or high ceiling applications. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month. As an option, the OLP/2 can be connected to the LiteMesh wirelessly monitored system.

Order Codes

Order Code Description
OLP/2/NM High Output IP65 3-Hour Non-Maintained Bulkhead
OLP/2/M High Output IP65 3-Hour Maintained Bulkhead
OLP/2/DA/NM High Output DALI Self-Test Non-Maintained IP65 3-Hour Bulkhead
OLP/2/DA/MD High Output DALI Self-Test DALI Maintained IP65 3-Hour Bulkhead
OLP/2/NM/LMEM High Output LiteMesh Ready Wireless Self-Test DALI Non-Maintained IP65 3-Hour Bulkhead
OLP/BEZ Semi-recessing kit, consisting of trim plate & mounting brackets

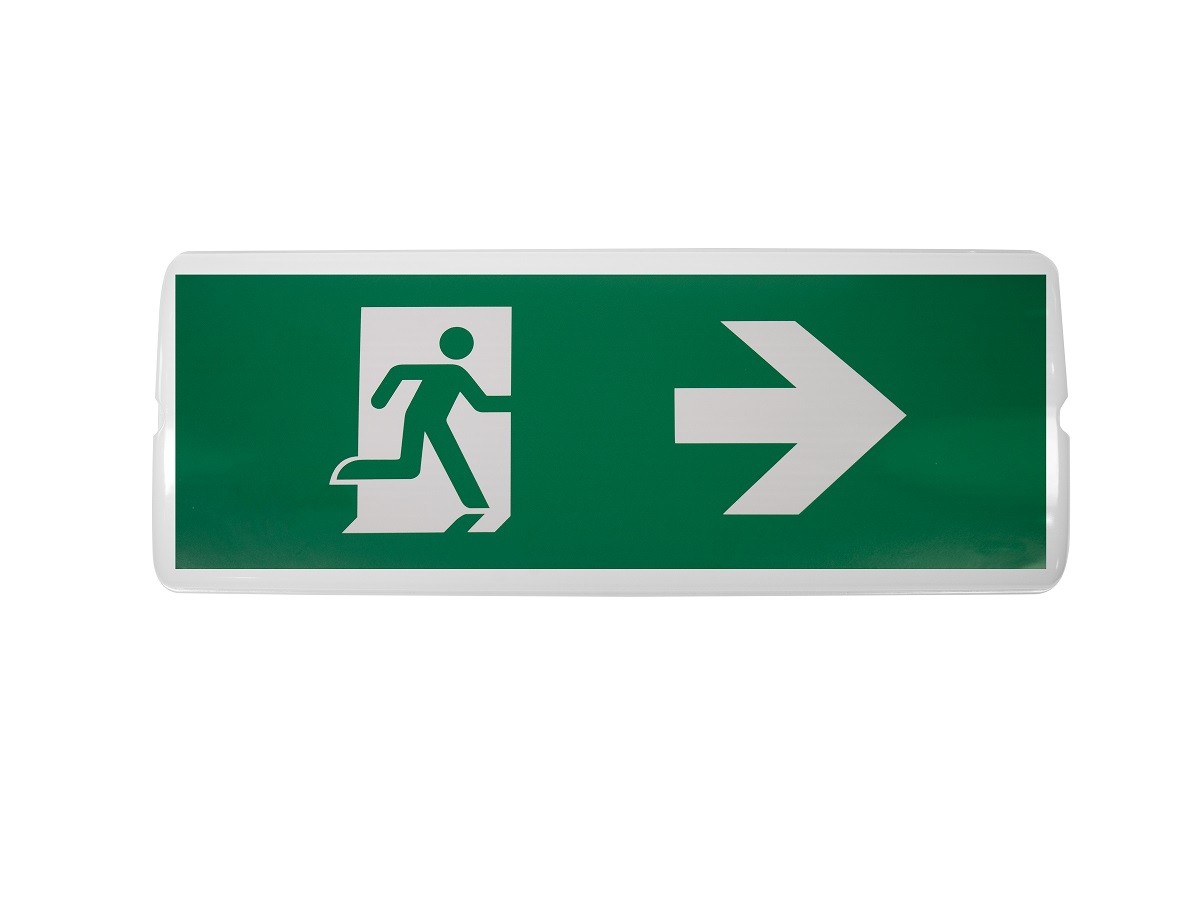

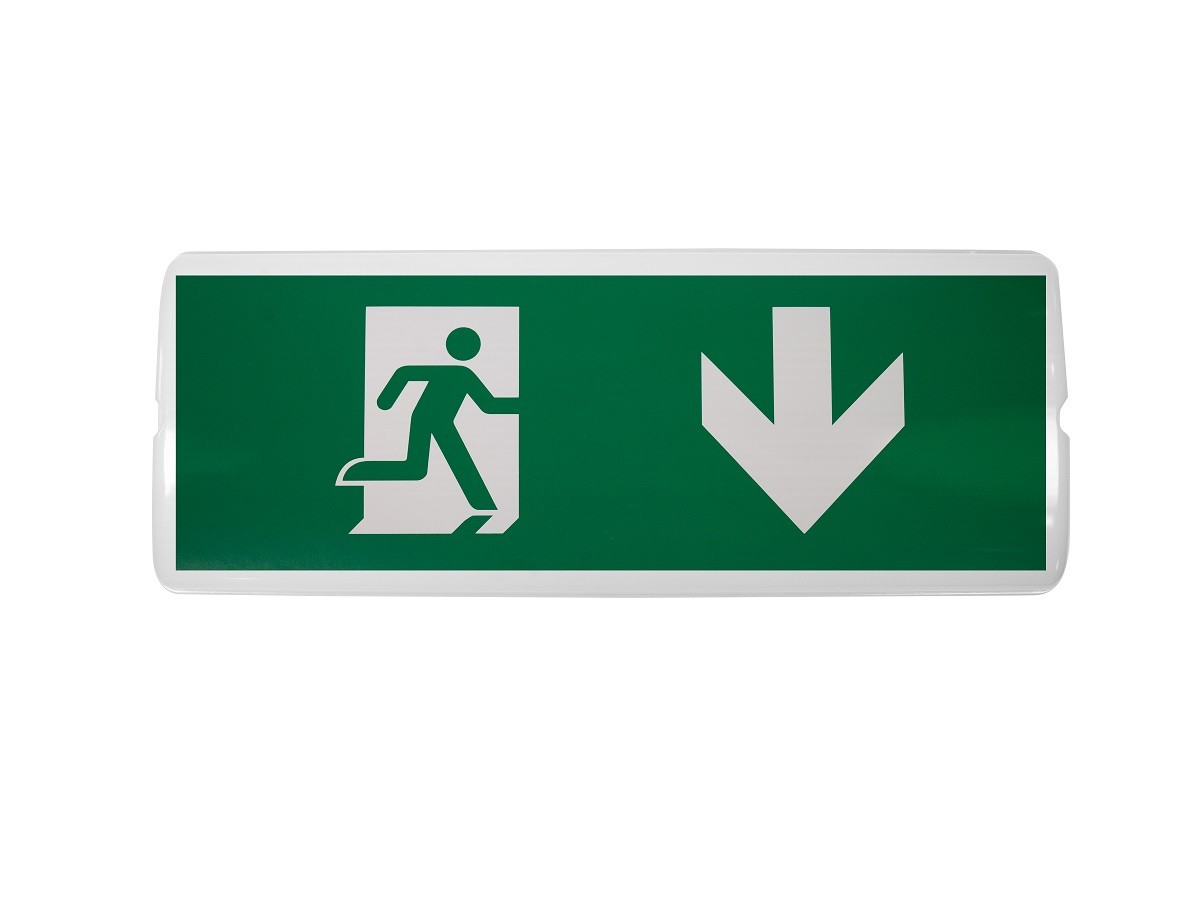

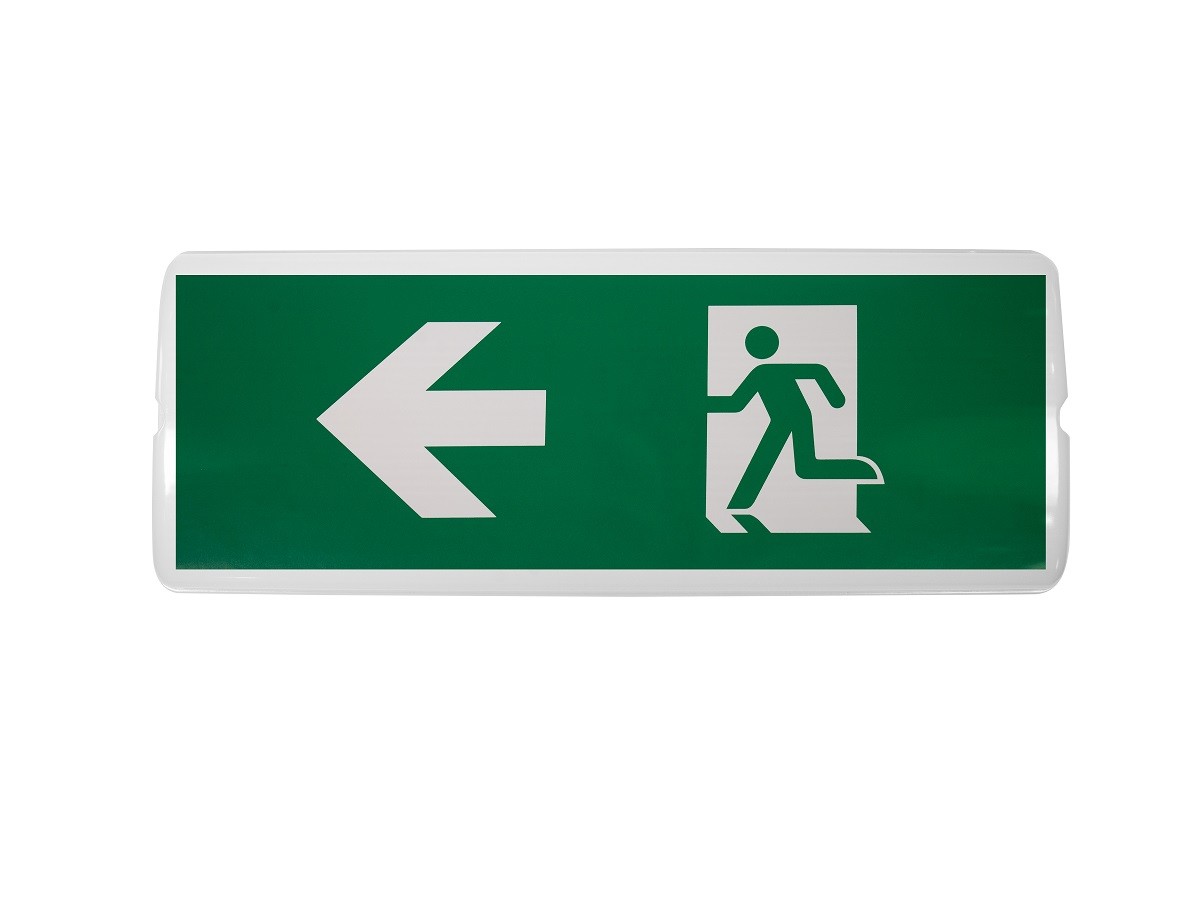

OLP/LG Self-Adhesive Legend Kit to make IP65 Exit Sign

OLP/2 Bulkhead

Specifications

  • High Output Bulkhead
  • Suitable for Warehousing or High Ceilings
  • Efficient Diffuser with High Light Output Ratio
  • Available as Maintained or Non-Maintained
  • Basic Emergency, DALI Self-test or LiteMesh Wireless Self-test
  • LiFePO4 Automatic Battery Protection and Recovery
  • IP65 and IK10
  • 1163 Lumen in Mains Operation
  • 842 Lumen in Emergency Operation
OLP/2/M OLP/2/NM
Input Voltage 220-240 Volts AC – 50/60Hz
Power Rating Charged *1.3W 13mA λ = 0.43
Power Rating Basic Charging * 3.8W 23mA λ = 0.69
Power Rating DALI Self-test Charging *4W 21mA λ = 0.79
Emergency Duration 3-Hours
Light Source Vossloh-Schwabe 8.2W 23.5V LED Strip
Battery Type LiFePO4
Battery Voltage 6.4V
Battery Capacity 4.8Ah
Charge Current 225mA nominal
Recharge Time 24-Hours
Cut-Off Voltage 5V
Discharge Current 1A Nominal
Ambient Temp. 0°C to 35°C
IP Rating IP65
Dimensions 370mm x 140mm x 89mm
Weight2.6kg 2.5kg
IK RatingIK10

* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode
