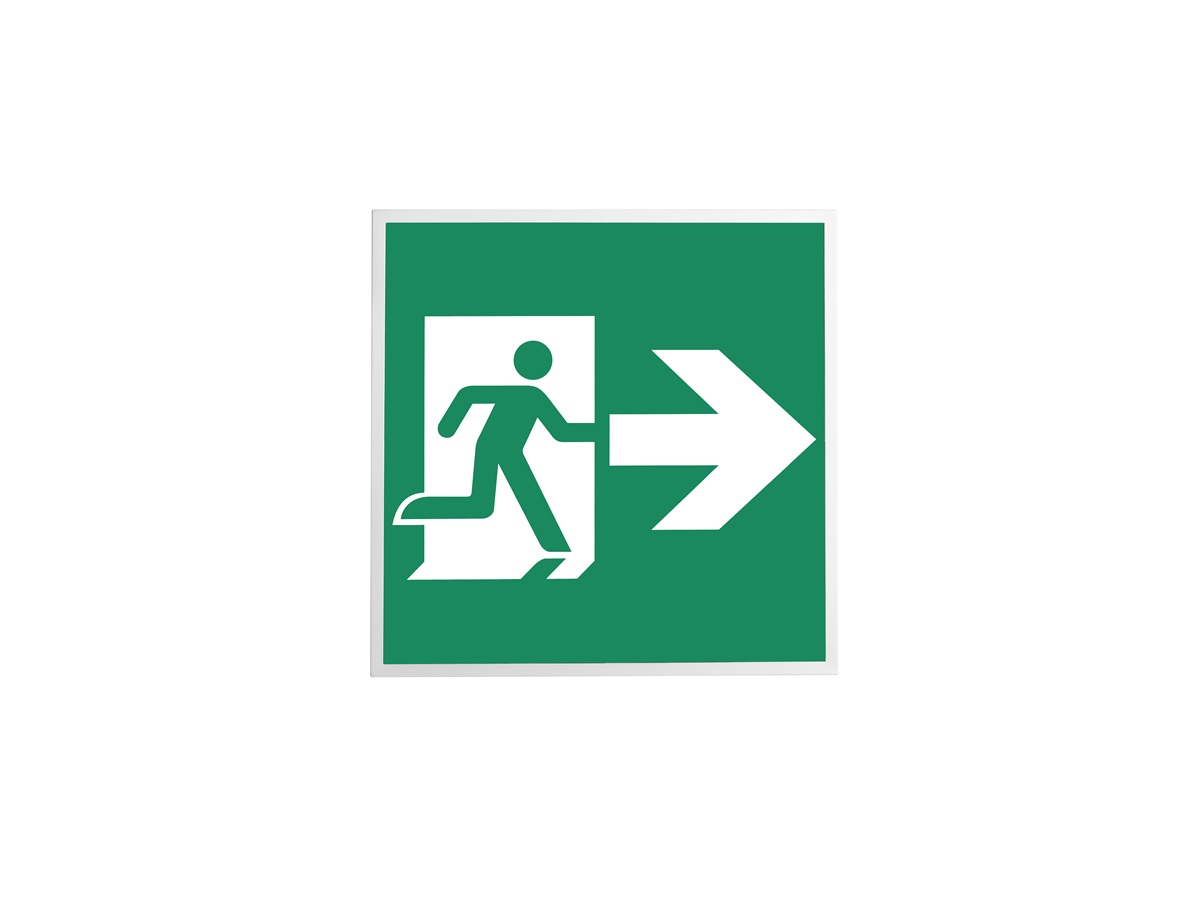

JCB/75 Exit Sign with 75m Viewing Distance
A wall mounting Single Sided Exit Sign suitable for open spaces with up to an impressive 75m viewing distance. The unit is available in either a Switchable Maintained/Non-Maintained or as DALI-2 Self-Test Maintained via Mains Switch. The unit is supplied with a specified legend. The legend panels are available as Arrow Down (AD), Arrow Left (AL) Arrow Right (AR) or Arrow Up (AU).
This exit sign includes and additional downward facing light panel.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
This product is suitable for use with the LiteMesh system, where required.
Order Codes
| JCB/75/NM | Non-maintained | ||
|---|---|---|---|
| JCB/75/M | Switchable Maintained | ||
| JCB/75/DA/NM | DALI-2 Self-Test Non-maintained via Mains Switch | ||
| JCB/75/DA/MD | DALI-2 Self-Test Maintained Via DALI | ||
| JCB/75/LMEM/M | LiteMesh Ready Wireless Self-Test Maintained via Mains Switch |
Specification
JCB/75 Exit Sign with 75m Viewing Distance
Specifications
- Surface Mount (Wall)
- 75m Viewing Distance
- Long Life LiFeP04 Cells
- Basic, DALI-2 Self-test, or Wireless Self-test Operation
- ISO Legends as Standard
- Deep Discharge Protection
- Vossloh Schwabe LED's
- LiFePO4 Automatic Battery Protection and Recovery
- Includes and Additional Downward Facing Light Panel
| JCB/75/NM JCB/75/MJCB/75/DA/NMJCB/75/DA/MDJCB/75/LMEM/M | |
| Mains Supply | 230-240V AC 50/60 Hz |
| Power Rating - Charged * | 1.3W 13mA λ = 0.43 Non-maintained |
| Power Rating Basic - Charging * | 13.2W 68mA λ = 0.81 Maintained |
| Power Rating DALI - Charged * | 1.4W 12mA λ = 0.48 Non-maintained |
| Power Rating DALI - Charging * | 17.7W 72mA λ = 0.84 Maintained |
| Duration | 3 Hours |
| Recharge Period | 24 Hours - Energy saving electronic charger |
| Battery Size & Type | 6.4V 3.2Ah LiFeP04 Cells |
| Charge Current | 225mA Nominal |
| Rating | IP20 |
* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
