Halo Surface Round (CRW & CRB)

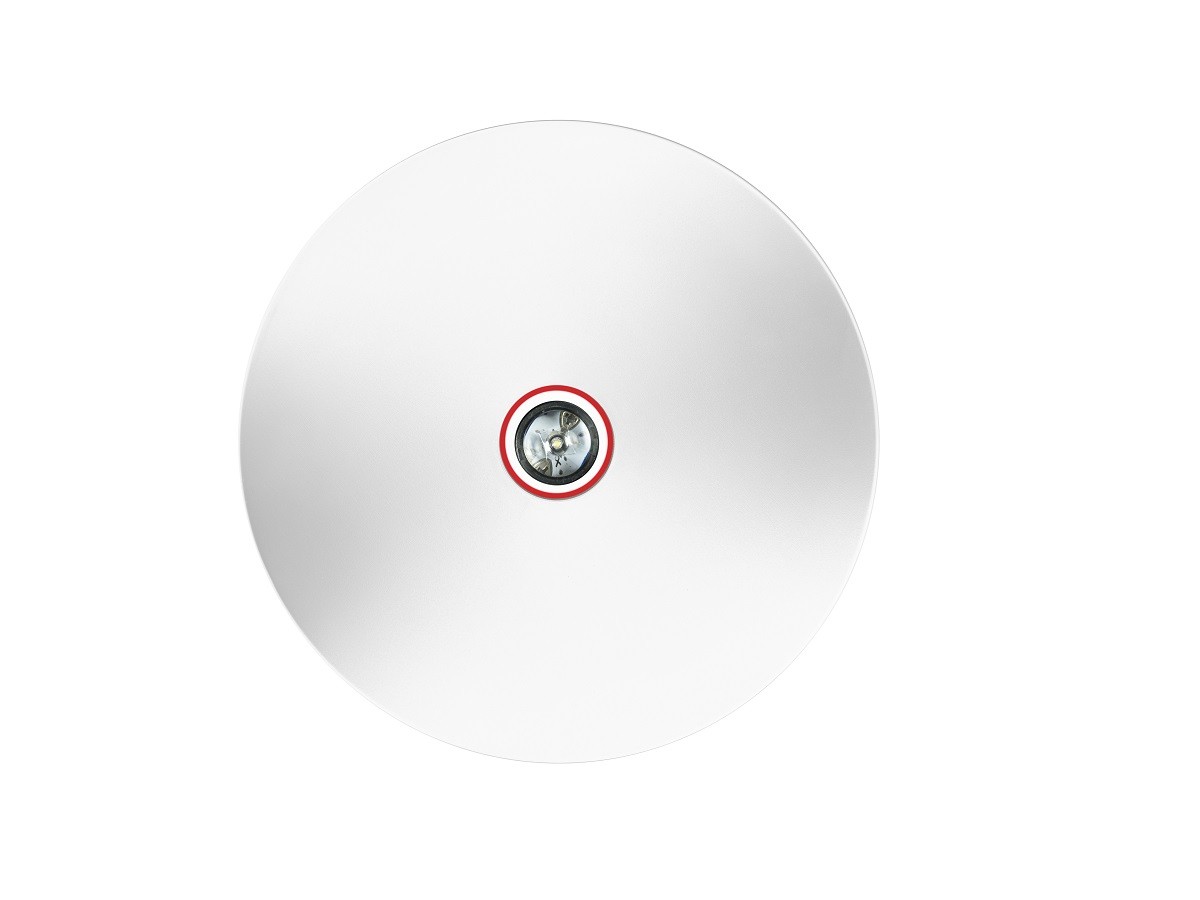

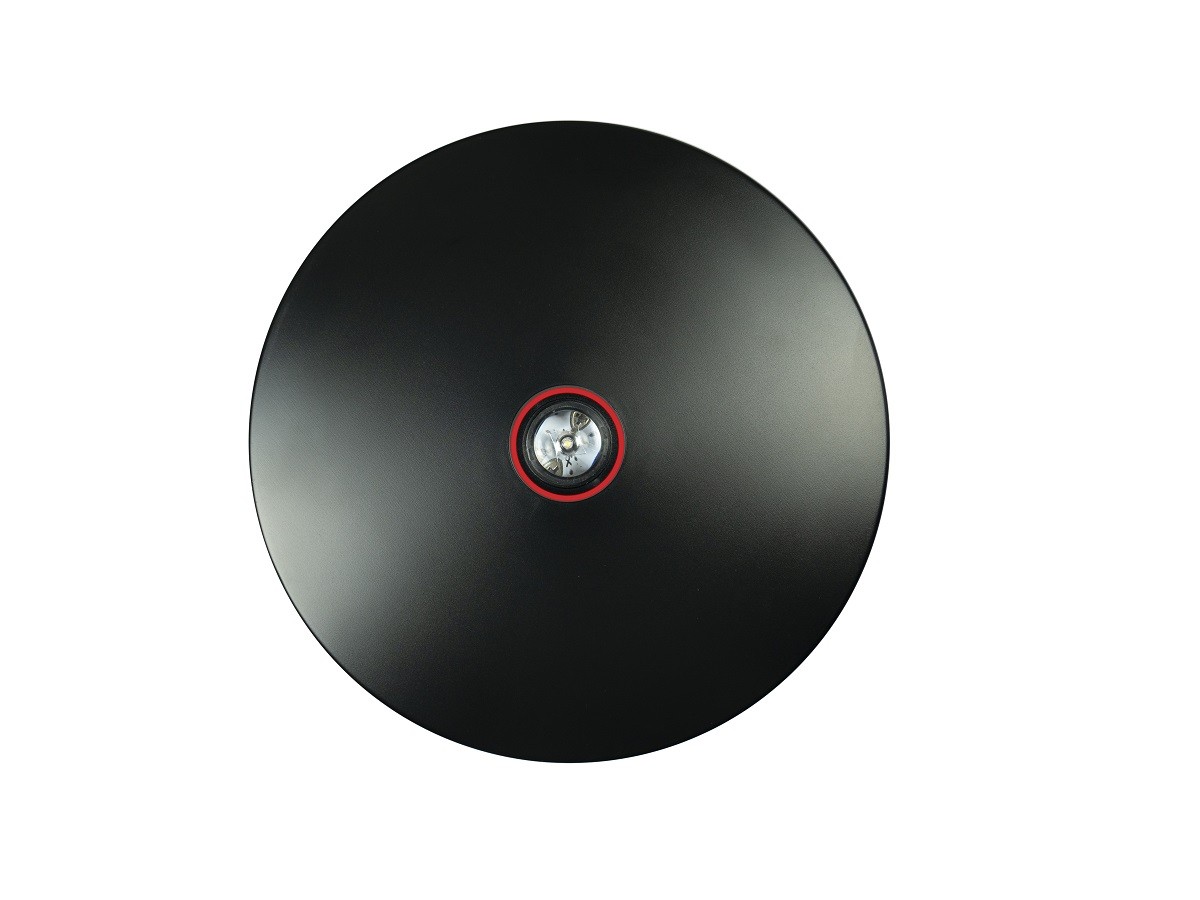

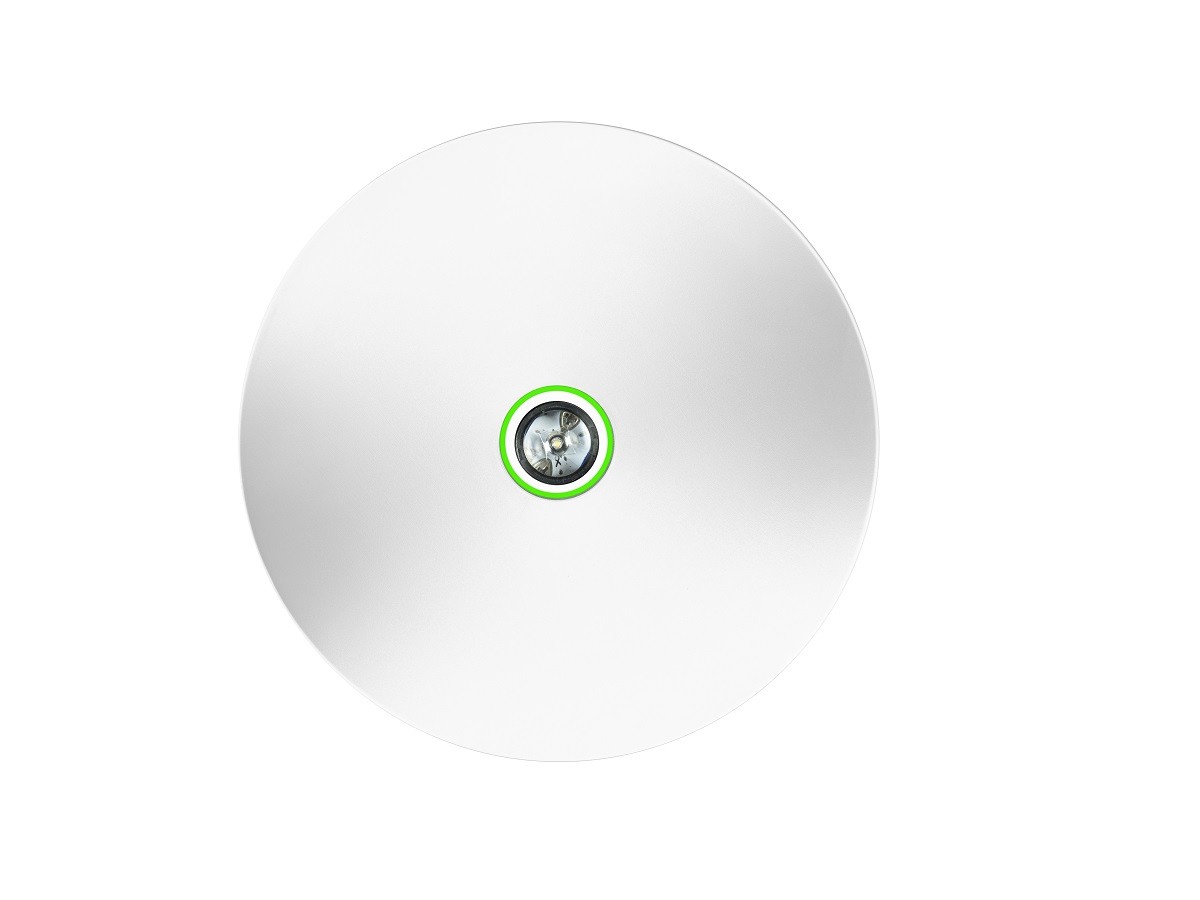

A round surface mount standalone 3-hour emergency LED, featuring our Halo effect charge/fault indicator. The light source is available with either open-area (anti panic) which emits 268 lumen, or a corridor (escape route) optic that emits 266 lumen. The Halo Surface range operates with the latest LiFePO4 batteries that not only last far longer than traditional emergency lighting batteries, but consume far less power. The product is available in either white (RAL9016) or black (RAL9005) and can be supplied as either basic emergency or DALI-2 Self-test operation. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.

Order Codes

Order CodeDescription
CRW/1/NM/COWhite Non-maintained c/w Corridor Lens
CRB/1/NM/COBlack Non-maintained c/w Corridor Lens
CRW/1/NM/OAWhite Non-maintained c/w Open Area Lens
CRB/1/NM/OABlack Non-maintained c/w Open Area Lens
CRW/1/DA/COWhite Non-maintained DALI-2 Self-Test c/w Corridor Lens
CRB/1/DA/COBlack Non-maintained DALI-2 Self-Test c/w Corridor Lens
CRW/1/DA/OAWhite Non-maintained DALI-2 Self-Test c/w Open Area Lens
CRB/1/DA/OA Black Non-maintained DALI-2 Self-Test c/w Open Area Lens

Halo Surface Round (CRW & CRB)

Specifications

  • Round Surface Mount Emergency LED
  • Basic or DALI-2 Emergency Operation
  • Corridor or Open Area Optics Available
  • Available as either White or Black
  • 155mm Diameter and 58mm Depth
  • LiFePO4 Automatic Battery Protection and Recovery
  • Up to 268 Delivered Lumen
CR/COCR/OA
LensCorridor LensOpen Area Lens
Beam angle115° x 155°135°
Input Voltage230-240 Volts AC – 50/60Hz
Power Rating (Basic) Charged *0.2W 8mA λ = 0.11
Power Rating (Basic) Charging *1.7W 14mA λ = 0.49
Power Rating (DALI-2) Charged * 0.26W 8mA λ = 0.14
Power Rating (DALI-2) Charging *1.7W 14mA λ = 0.5
Emergency Duration3-Hours
Light SourceSingle 4V Chip
Battery TypeLiFePO4
Battery Voltage3.2V
Battery Capacity3.8Ah
Charge Current225mA Nominal
Recharge Time24-Hours
Ambient Temperature0°C to 25°C
Ingress ProtectionIP20
DimensionsΦ 155mm x 58mm
Weight 0.49kg

* Following its initial charge, the emergency control gear will spend 90% of its operational life in standby mode.
