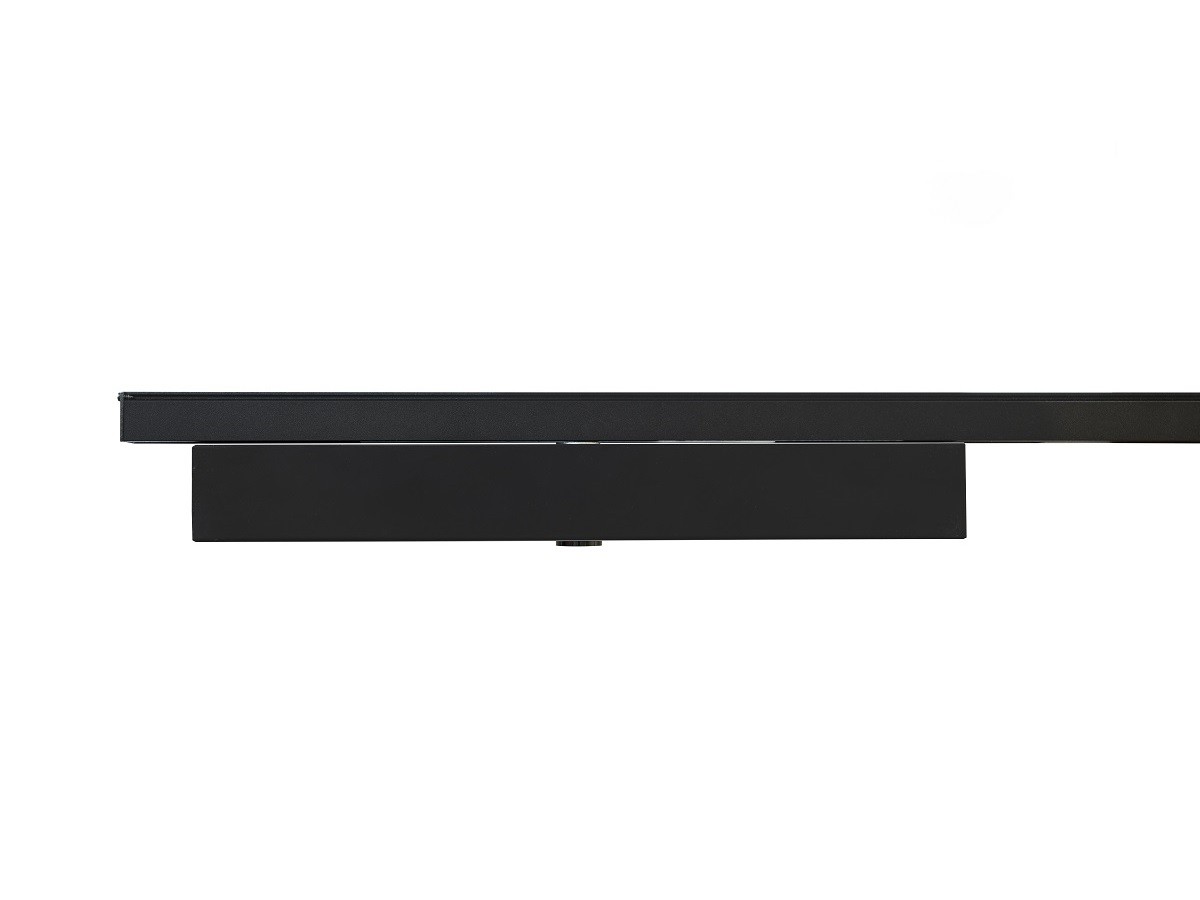

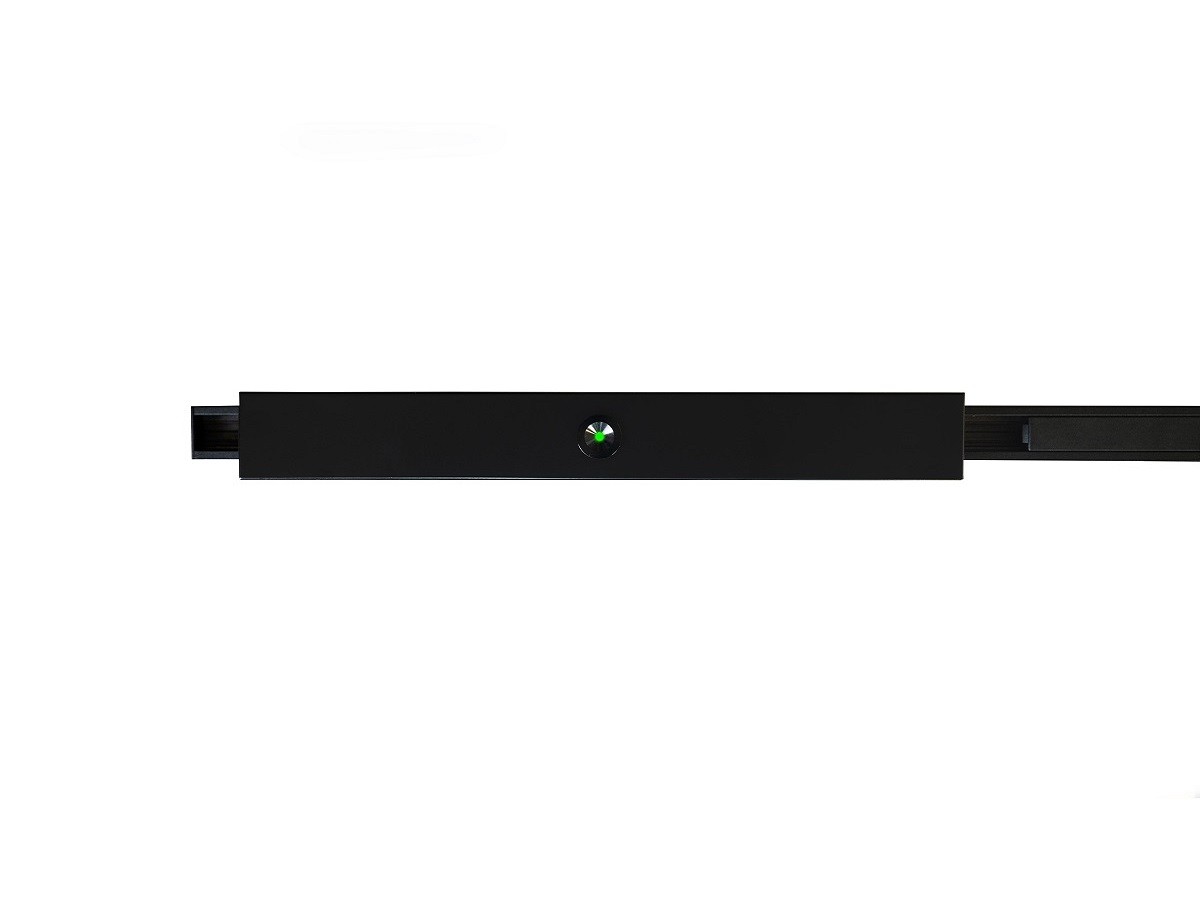

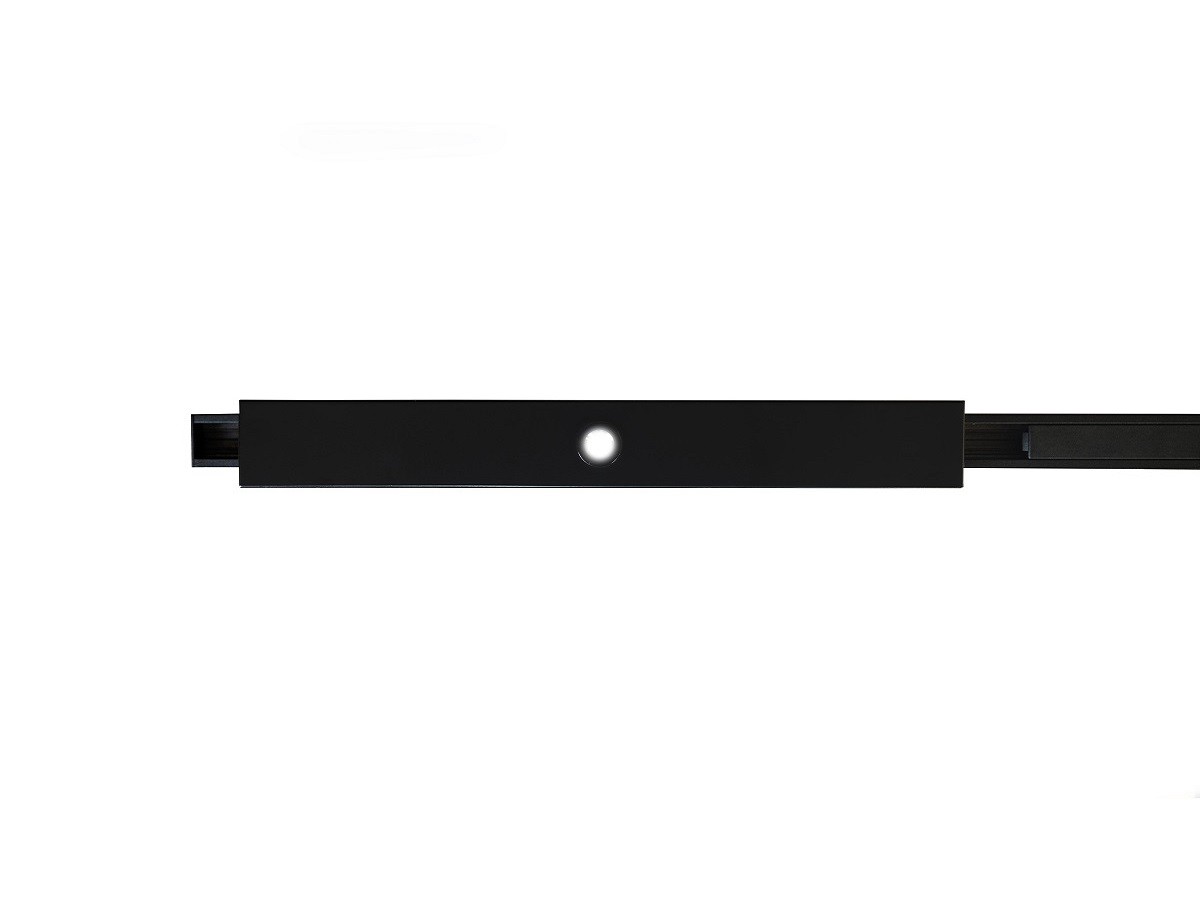

EMTrac/48 – 48V Track Mounted Emergency LED
Liteplan’s EMTrac/48/119 is a 3-hour Non-Maintained Emergency LED which is designed as a discrete and simple emergency lighting solution to 48V track fed lighting schemes. There are two main versions available. One is for standard 48V DALI track and the other is for deep recessed track where the track adaptor is on a separate lead. They are available in white (RAL9016) and black (RAL9005).
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
NB: The product is only suitable for use with 48V 4-circuit DALI track systems.
Ordering Codes
| EMTrac/48/119/W | Non-maintained DALI-2 self-test operation in a white finish | ||
|---|---|---|---|
| EMTrac/48/119/B | Non-maintained DALI-2 self-test operation in a black finish | ||
| EMTrac/48/119/DEEP/W | Non-maintained DALI-2 self-test operation in a white finish with longer fixings and the track adaptor on a lead for deeper tracks | ||
| EMTrac/48/119/DEEP/B | Non-maintained DALI-2 self-test operation in a black finish with longer fixings and the track adaptor on a lead for deeper tracks |
Specification
EMTrac/48 – 48V Track Mounted Emergency LED
Specifications
- 209 Lumen Output
- Self-test or DALI-2 Self-test Operation as Standard
- Available in White (RAL9016) or Black (RAL9005)
- Ldt files available upon request
- Extra long life LiFePO4 Batteries
- Low Maintenance
- Compatible with 4-circuit DALI Track Systems
- LiFePO4 Battery Protection with Automatic Cut-off
Technical Details:
| Mains Supply | 48V DC via Track System |
|---|---|
| Power Rating (standby) * | 3mA λ = 1 |
| Power Rating (charging) * | 30mA λ = 1 |
| Ambient Temperature | 5°C to +45°C |
| Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Pack | 3.2V 3.8Ah LiFePO4 |
| Charge Current Standard | 225mA Nominal |
| Battery Discharge Current | 900mA |
* After its initial charge, the EMTrac/48/119 will spend 90% of its operational life in standby mode
