D2N/1 DALI-2 Addressable Conversion
3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The D2N/1 and D2N/1S/80 automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The D2N/1 will operate LED loads between 6-55V forward and the D2N/1S/80 will operate LED loads between 6 and 80V forward.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
Suitable to operate with the LiteMesh wireless system.
This product is fully DALI-2 compliant and in keeping with the DALI-2 Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED.
The D2N range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.
Order Codes
| Order Code | Description | ||
|---|---|---|---|

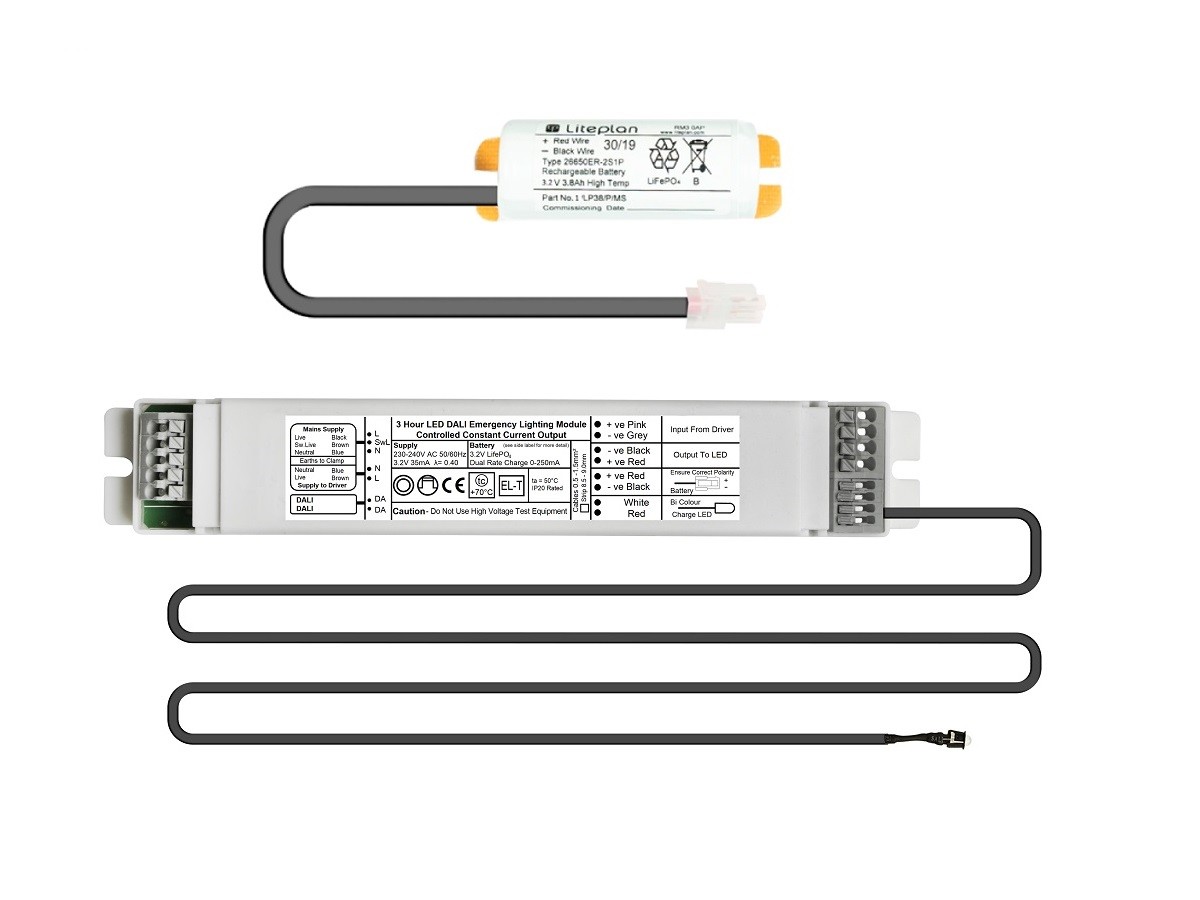

| D2N/1-K | Module, single cell battery and charge LED indicator for LED loads from 6-55Vf | ||

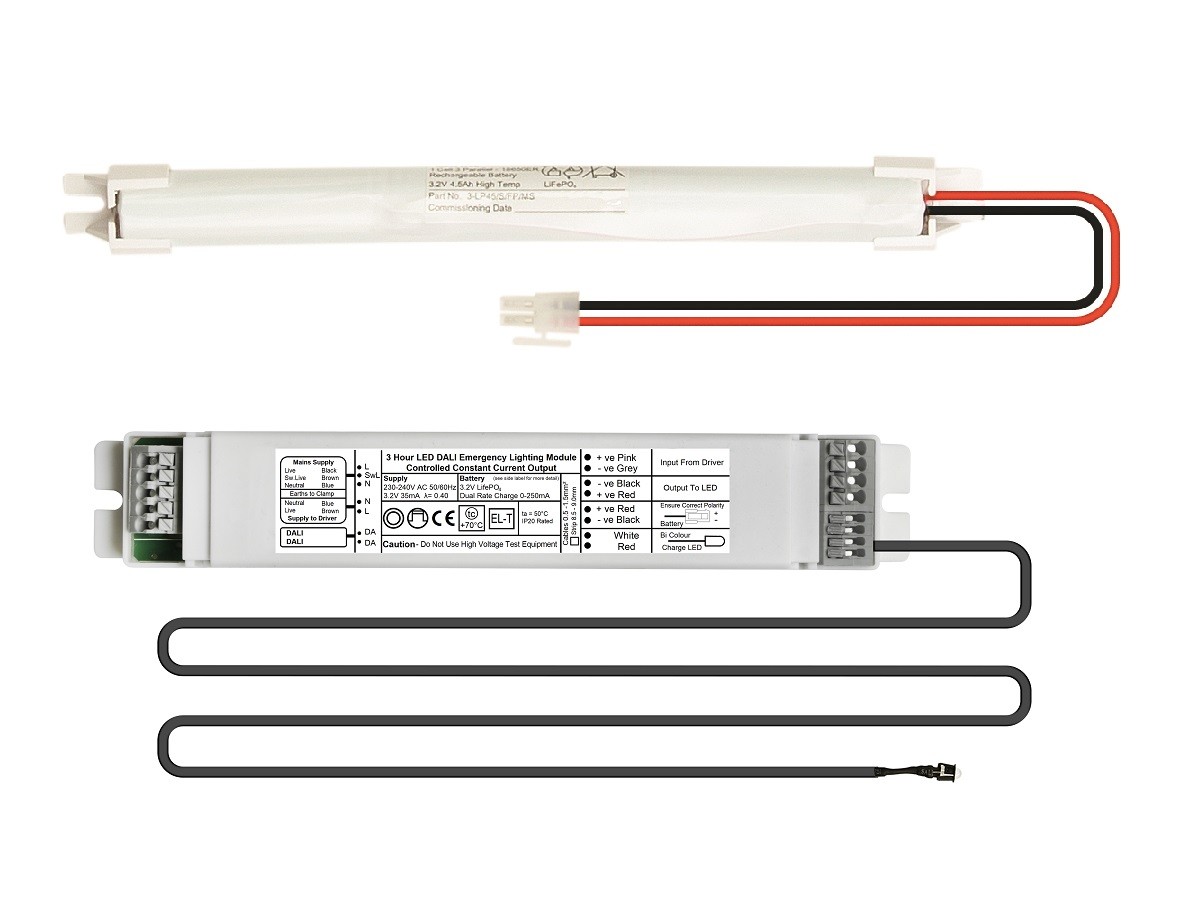

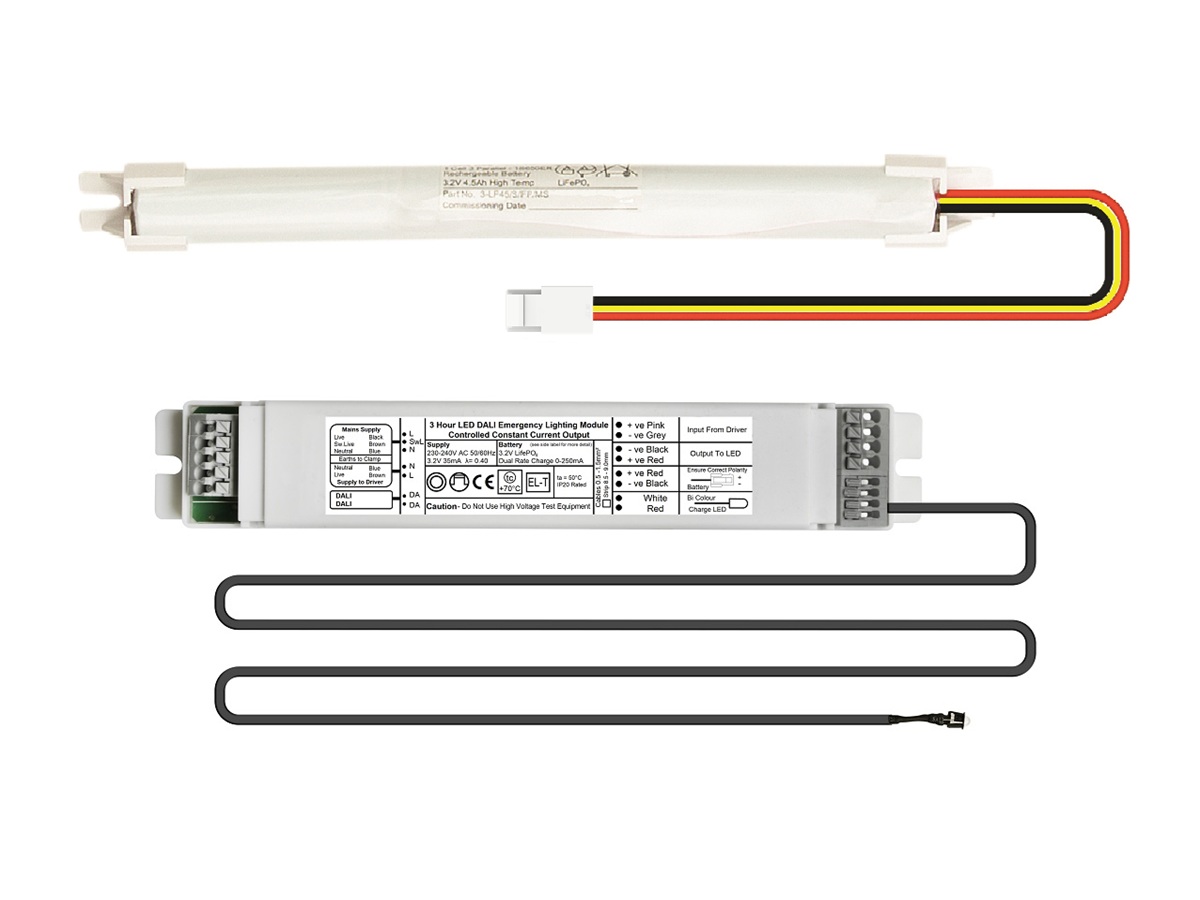

| D2N/1S/80-K | Module, three cell battery and charge LED indicator for LED loads from 6-80Vf |
D2N/1 DALI-2 Addressable Conversion
Specifications
- DiiA Registered DALI-2 Device
- 2-pole Changeover Relay
- Additional 3rd Pole Relay for Driver Protection
- Deep Discharge Protection
- Intelligent, Low Energy, Charging Circuit
- Extra Long Life LiFePO4 Cells
- Slim Module for Integral Mounting
- D2N/1 - Average Emergency Output of 2.2W
- D2N/1S - Average Emergency Output of 2.6W
- Can Operate with the LiteMesh Wireless System
- TÜV Tested and Certified
- LiFePO4 Automatic Battery Protection and Recovery
| D2N/1D2N/1S/80 | |
| LED Voltage Range | 6-55V6-80V |
| I Rated | 352mA - 40mA410mA - 33mA |
| P Rated | 2.2W2.6W |
| LED Voltage Limit | 55V80V |
| Battery Discharge Current | 950mA1.1A |
| Mains Supply | 230-240V AC 50/60Hz |
| Power Rating | 1.4W 12mA λ = 0.48 |
| Charge Current | 225mA nominal |
| Recharge Period | 24-hours |
| Battery Pack | 3.2V 3.8Ah LiFePO43.2V 4.8Ah LiFePO4 |
| Battery Cut Off | 2.5V |
| Ambient Temperature (Ta) | Module and Battery 5-35°C |
| Case Temperature (Tc) | Battery 5-55°C, Module 5-70°C |
| Integral Kit Size | Module - 178mm x 30mm x 22.5mm FC=172mm /1 Battery - 90mm 28mm Ø /1S Battery - 230mm x 24mm x 21mm |
