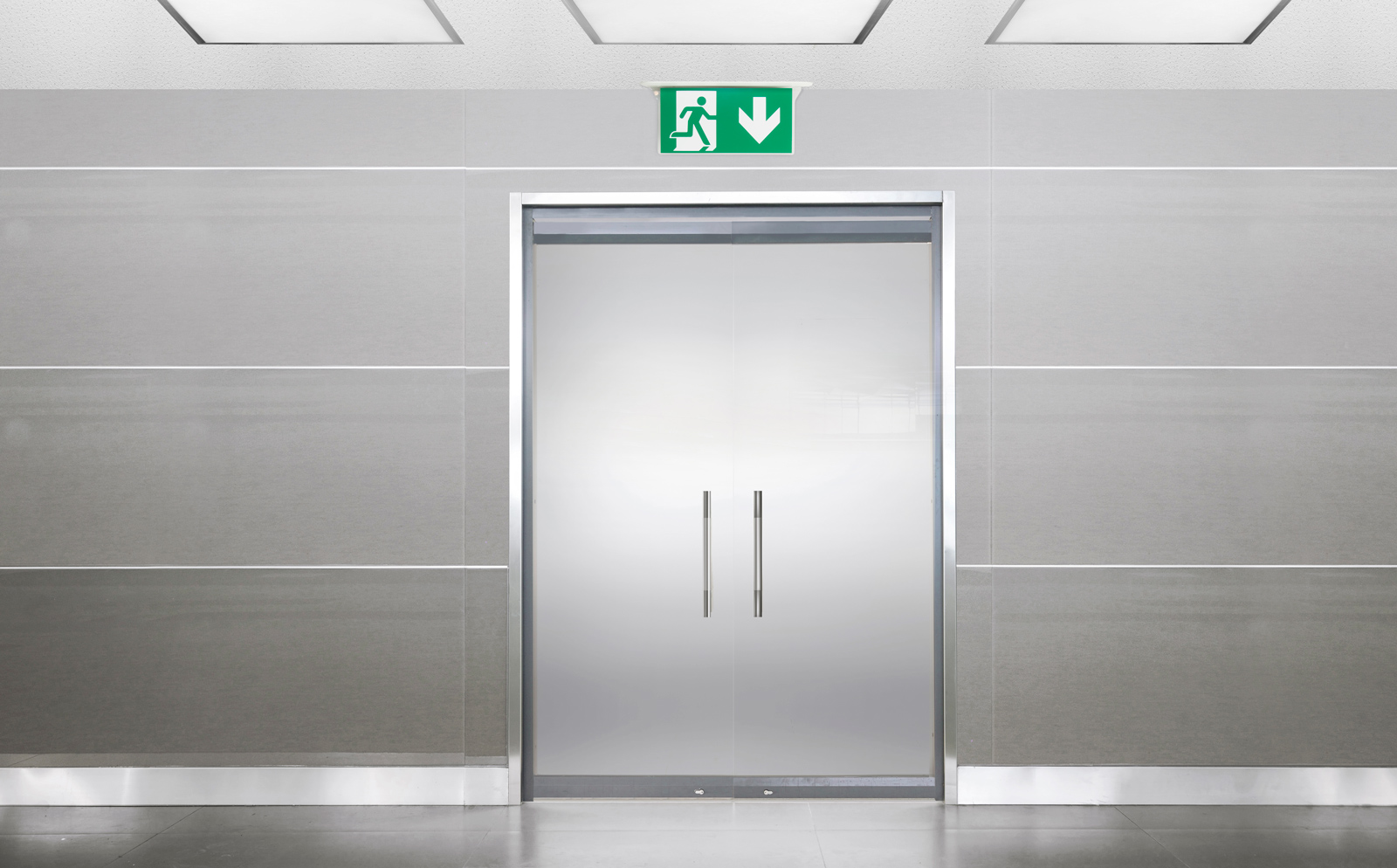

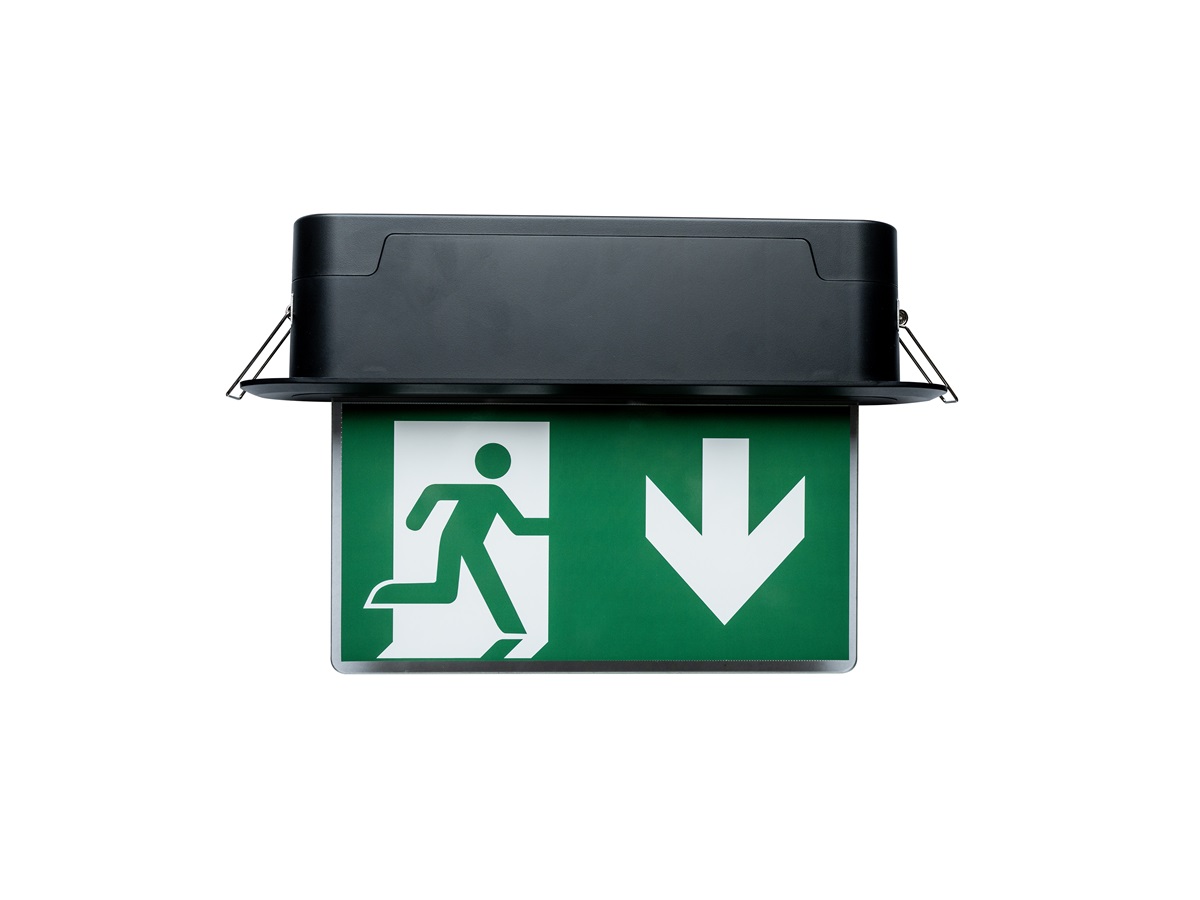

CE1R/MYMESH Recessed Exit Sign
A stylish and compact double sided LED exit sign suitable for recessed mounting into a ceiling. The unit is available as either switchable maintained or non-maintained and is supplied ready to connect to a MyMesh wireless control system. The unit is supplied with a Plexi glass screen printed legend plate which offers an impressive 25m viewing distance. The legend panels are available in either Arrow Up (AU), Arrow Down (AD) or Arrow Left/Right (ALAR) and your preference should be specified at the point of ordering. Please note that the legends are single sided, apart from the Arrow Left/Right (ALAR) which is double sided.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
Order Codes
| CE1R/M/MYMESH/** | Switchable Maintained | ||
|---|---|---|---|
| CE1R/NM/MYMESH/** | Non-maintained |
** – Denotes the arrow direction required – e.g. AD for Arrow Down.
Specification
CE1R/MYMESH Recessed Exit Sign
Specifications
- Recessed Mounting (Ceiling)
- White Polycarbonate Body
- Long Life LiFePO4 Batteries
- Supplied Ready to Connect to a MyMesh System
- 25m Viewing Distance
- ISO Legends as Standard
- DDP (Deep Discharge Protection)
- Samsung LED's
- LiFePO4 Automatic Battery Protection and Recovery
| CE1R/M/MYMESH CE1R/NM/MYMESH | |
| Mains Supply | 230-240V AC 50/60 Hz |
| Power Rating Charging * | 5W 28mA λ = 0.74 Maintained |
| Power Rating Charged * | 0.26W 8mA λ = 0.14 non-maintained |
| Duration | 3-Hours |
| Recharge Period | 24-Hour - Energy saving electronic charger |
| Battery Size & Type | 3.2V 3.8Ah LiFePO4 Cells 3.2V 3.8Ah LiFePO4 Cells |
| Charge Current | Charge Current 225mA Nominal |
| Ingress Protection | IP40 |
* Following its initial charge the product will spend 90% of its operational life in standby mode
