Overview

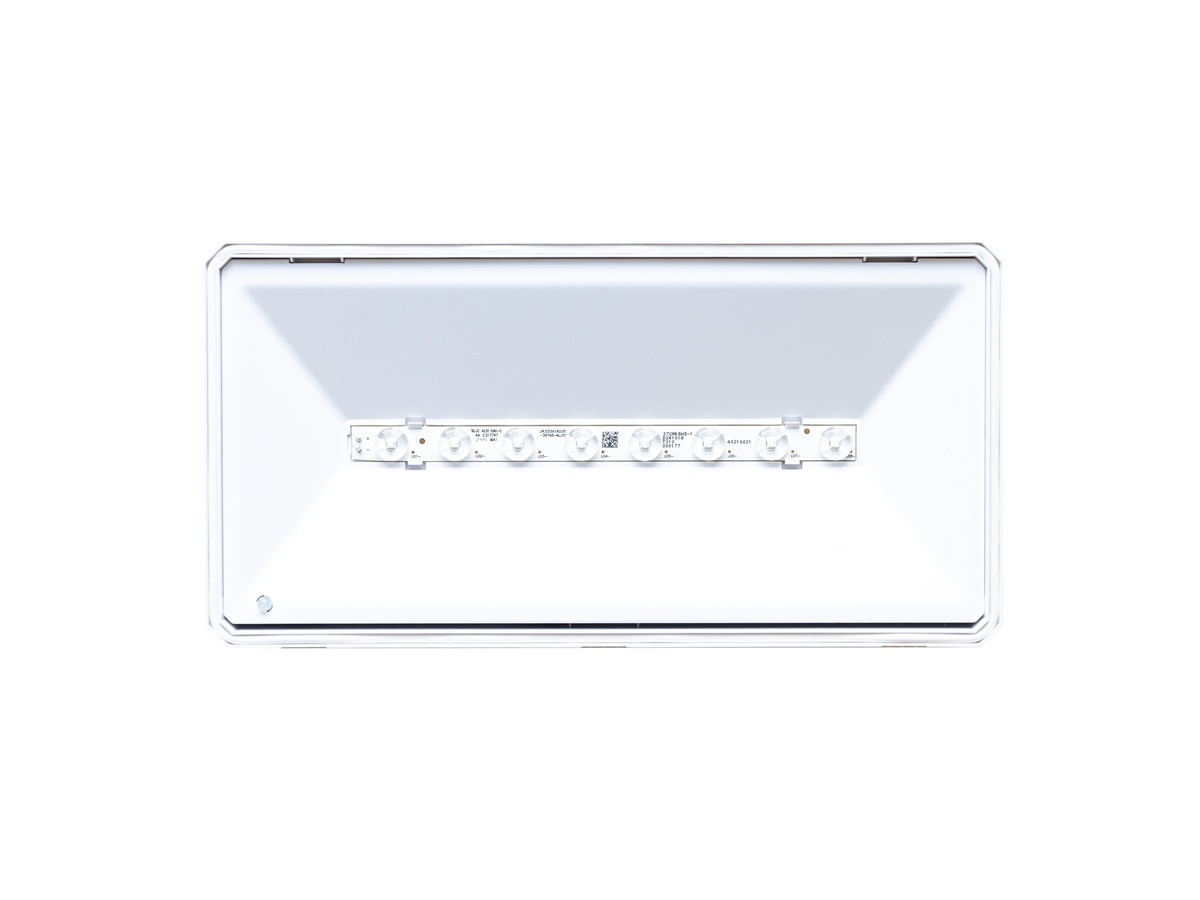

CB5S Slim Bulkhead
A stylish and compact IP65 rated emergency luminaire suitable for mounting in a number of different ways. The fitting is available either as non-maintained, maintained, DALI-2 self-test maintained/non-maintained or wireless self-test maintained/non-maintained operation. This fitting is not only more compact than a majority of LED bulkheads, but offers an impressive 345 delivered lumen output.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
Specification
CB5S Slim Bulkhead
Specifications
- Surface Mount (Wall or Ceiling)
- Available as Basic Emergency, DALI-2 Self-test or Wireless Self-Test
- White Polycarbonate body
- Translucent Polycarbonate Cover
- Long Life LiFePO4 cells
- Ingress Rating - IP65
- DDP (Deep Discharge Protection)
- 6800K Samsung LED's
- 345 Deliverd Lumen RA81.2
| CB5S/M CB5S/DACB5S/LMEM | |
| Mains Supply | 230-240V AC 50/60 Hz |
| Power Rating | 5.7W 31mA λ = 0.75 Charging 5W 28mA λ = 0.74 Charging |
| 0.2W 8mA λ = 0.1 Charged 0.3W 8mA λ = 0.15 Charged | |
| Duration | 3 Hours |
| Recharge Period | 24 hours |
| Battery Size & Type | 3.2V 3.8Ah LiFeP04 Cells 3.2V 3.8Ah LiFePO4 Cells |
| Charge Current | 0-225mA Nominal0-225mA Nominal |
| Rating | IP65 |
| Light Source | 8 pcs Samsung LED |
| Lumen Output | 325 Delivered Lumen (LDT File available) |
Documentation
CB5S Slim Bulkhead
A stylish and compact IP65 rated emergency luminaire suitable for mounting in a number of different ways. The fitting is available either as non-maintained, maintained, DALI-2 self-test maintained/non-maintained or wireless self-test maintained/non-maintained operation. This fitting is not only more compact than a majority of LED bulkheads, but offers an impressive 345 delivered lumen output.
All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month.
