Overview

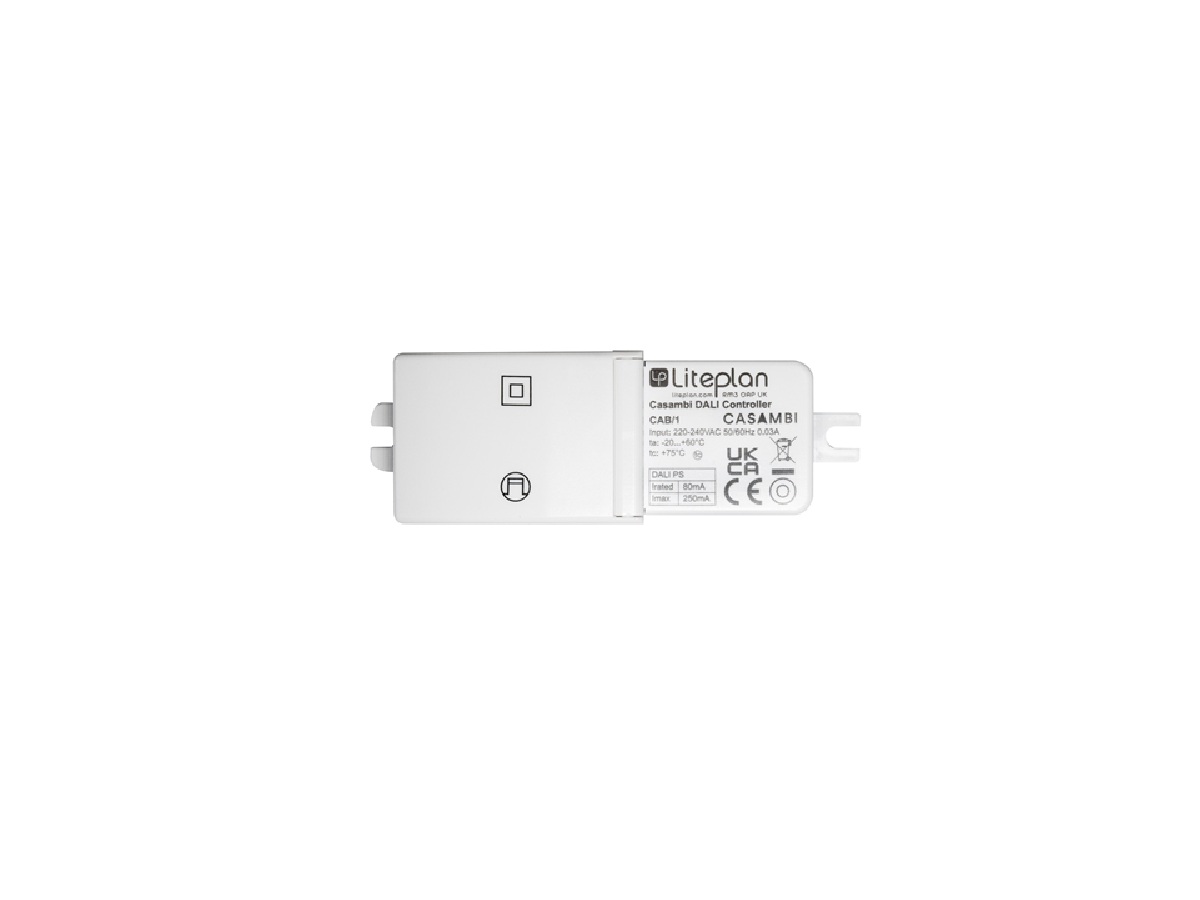

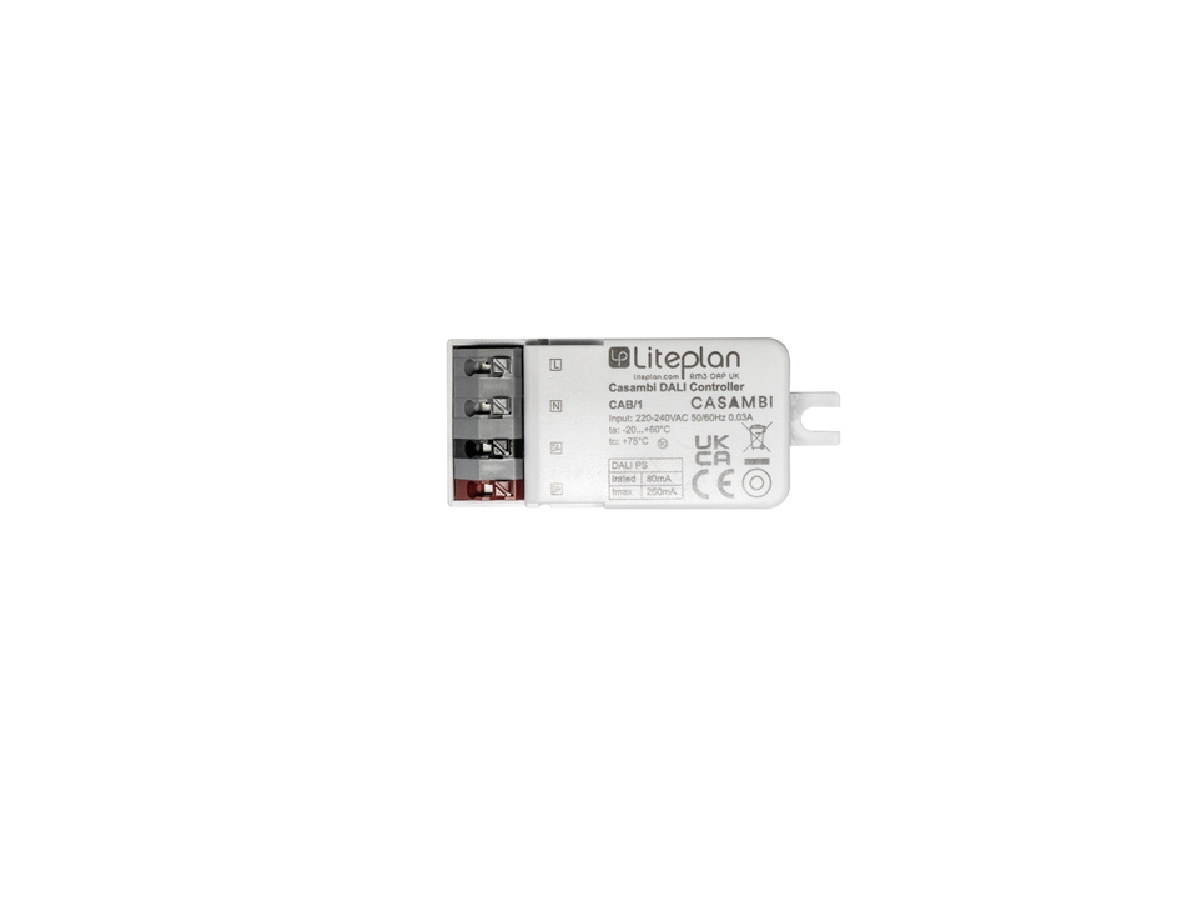

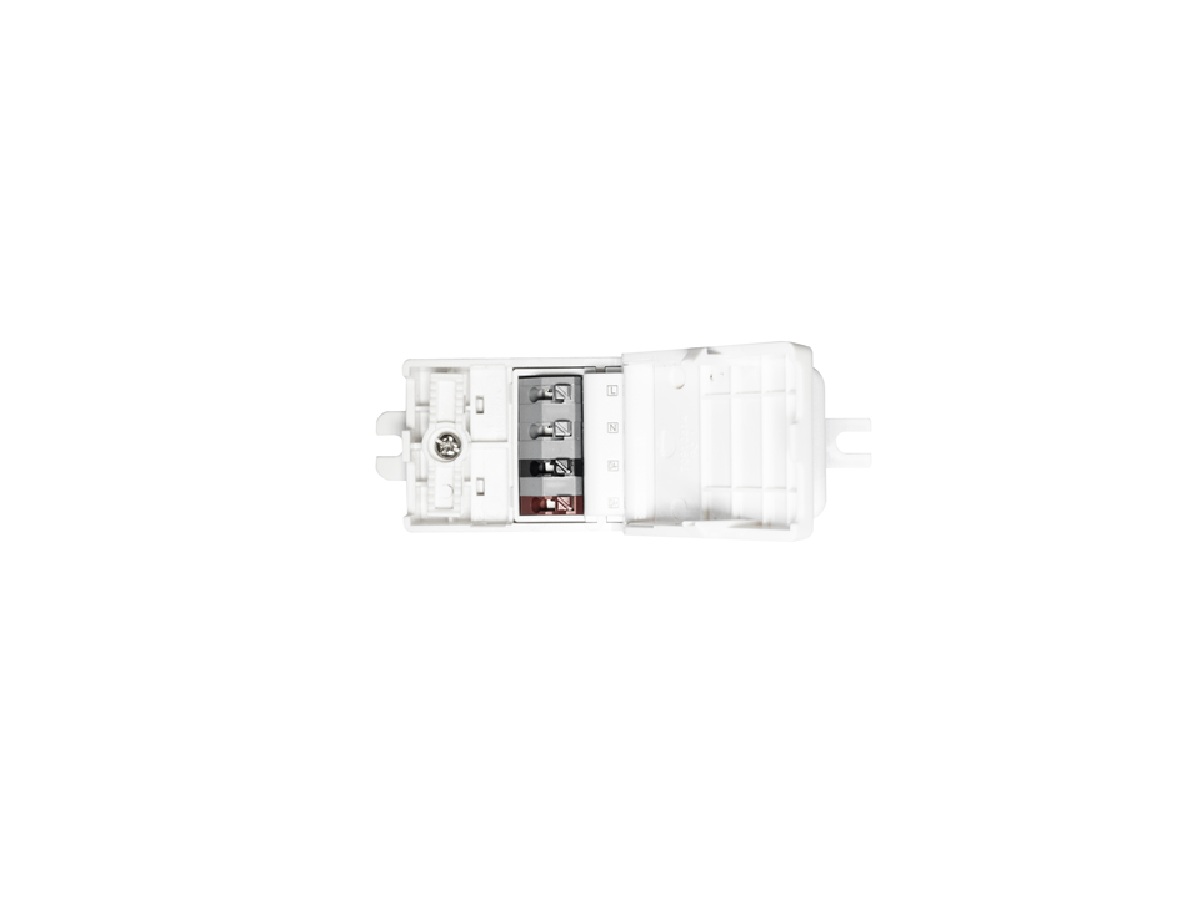

CAB/1 Casambi Ready Active Node
The CAB/1 is Liteplan’s Casambi ready wireless bridge node connecting DALI emergency control gear to an existing Casambi system. The frequency of 2.4GHz uses a proprietary BLE (Bluetooth low energy) mesh.
The CAB/1 node connects to DALI emergency control gear via standard two way DALI terminals.
There are two versions of the product. The CAB/1 is designed for integral applications, therefore mounted within a luminaire, or remote enclosure. Where the CAB/1/R is designed with cable strain relief to allow for remote mounting. The minimum aperture for the CAB/1/R is 41mm.
Ordering Codes
| Order Code | Description | ||
|---|---|---|---|
| CAB/1 | Casambi Ready Active Wireless Node for connection to DALI-2 Emergency Control Gear. For Integral Use. | ||
| CAB/1/R | Casambi Ready Active Wireless Node for connection to DALI-2 Emergency Control Gear. With Strain Relief for Remote Mounting. |
Specification
CAB/1 Casambi Ready Active Node
Specifications
- Casambi Ready Wireless Node
- Compatible with DALI-2 Certified Emergency Control Gear
- Active Node with DALI Power Supply
- Supplied either for Integral or Remote Use
- Simple Installation Process
Documentation
CAB/1 Casambi Ready Active Node
CAB/1 Casambi Ready Active Node
The CAB/1 is Liteplan’s Casambi ready wireless bridge node connecting DALI emergency control gear to an existing Casambi system. The frequency of 2.4GHz uses a proprietary BLE (Bluetooth low energy) mesh.
The CAB/1 node connects to DALI emergency control gear via standard two way DALI terminals.
There are two versions of the product. The CAB/1 is designed for integral applications, therefore mounted within a luminaire, or remote enclosure. Where the CAB/1/R is designed with cable strain relief to allow for remote mounting. The minimum aperture for the CAB/1/R is 41mm.
Ordering Codes
| Order Code | Description | ||
|---|---|---|---|
| CAB/1 | Casambi Ready Active Wireless Node for connection to DALI-2 Emergency Control Gear. For Integral Use. | ||
| CAB/1/R | Casambi Ready Active Wireless Node for connection to DALI-2 Emergency Control Gear. With Strain Relief for Remote Mounting. |
CAB/1 Casambi Ready Active Node
Specifications
- Casambi Ready Wireless Node
- Compatible with DALI-2 Certified Emergency Control Gear
- Active Node with DALI Power Supply
- Supplied either for Integral or Remote Use
- Simple Installation Process
CAB/1 Casambi Ready Active Node
CAB/1 Casambi Ready Active Node
The CAB/1 is Liteplan’s Casambi ready wireless bridge node connecting DALI emergency control gear to an existing Casambi system. The frequency of 2.4GHz uses a proprietary BLE (Bluetooth low energy) mesh.
The CAB/1 node connects to DALI emergency control gear via standard two way DALI terminals.
There are two versions of the product. The CAB/1 is designed for integral applications, therefore mounted within a luminaire, or remote enclosure. Where the CAB/1/R is designed with cable strain relief to allow for remote mounting. The minimum aperture for the CAB/1/R is 41mm.
Ordering Codes
| Order Code | Description | ||
|---|---|---|---|
| CAB/1 | Casambi Ready Active Wireless Node for connection to DALI-2 Emergency Control Gear. For Integral Use. | ||
| CAB/1/R | Casambi Ready Active Wireless Node for connection to DALI-2 Emergency Control Gear. With Strain Relief for Remote Mounting. |
CAB/1 Casambi Ready Active Node
Specifications
- Casambi Ready Wireless Node
- Compatible with DALI-2 Certified Emergency Control Gear
- Active Node with DALI Power Supply
- Supplied either for Integral or Remote Use
- Simple Installation Process
